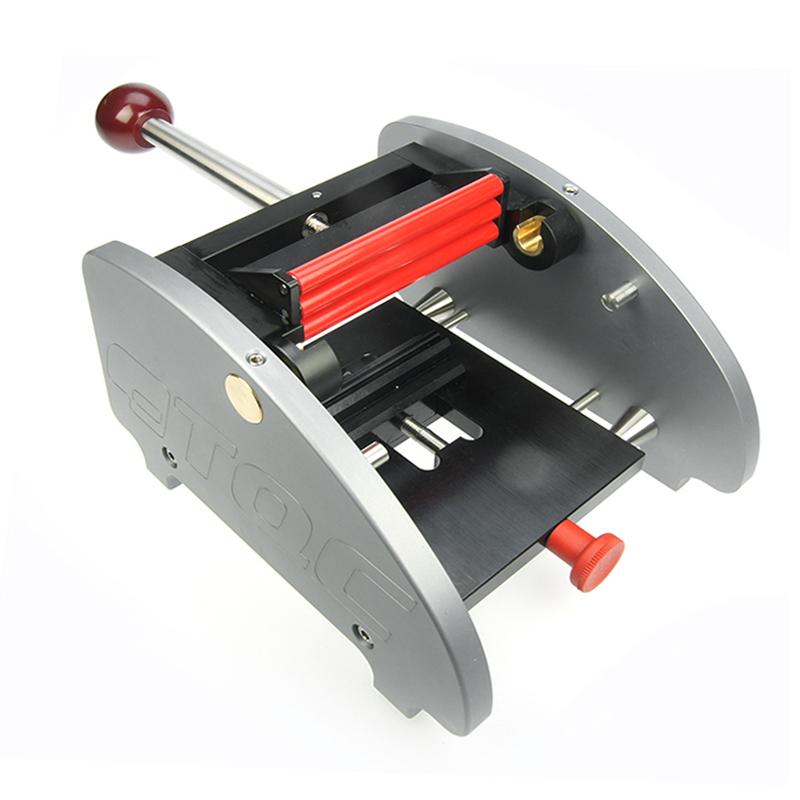

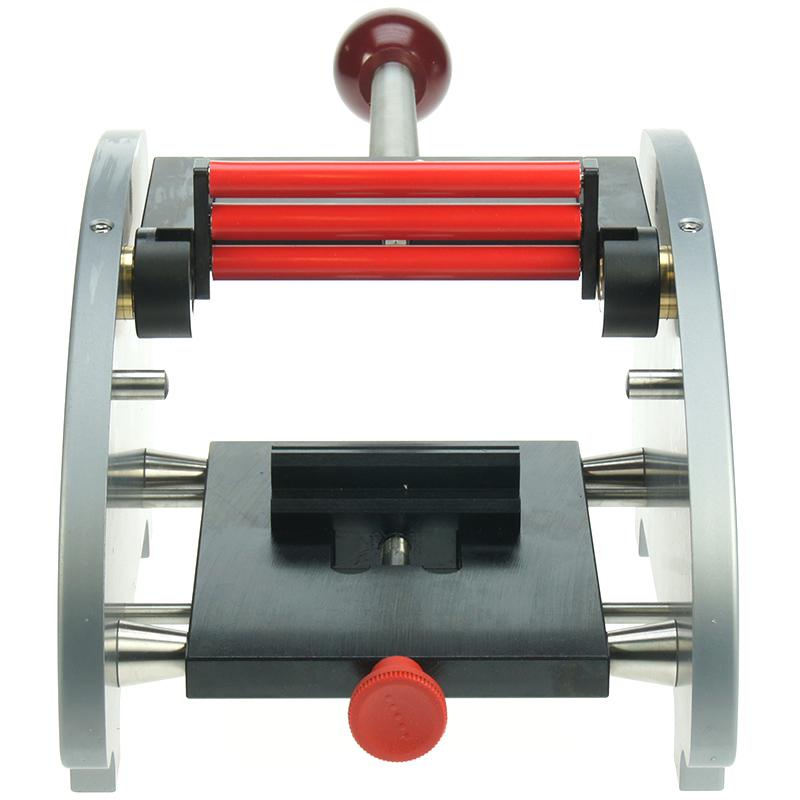

TQC SP1820 cylindrical mandrel bending Tester, conical shaft Φ 3.1~ 38mm in accordance with ISO6860

Name: TQC SP1820 cylindrical mandrel bending Tester, conical shaft Φ 3.1~ 38mm in accordance with ISO6860
Brand: TQC sheen
SKU: NB010007
Price: 4029.0 USD
Availability: InStock

$ 4029.00Ex works

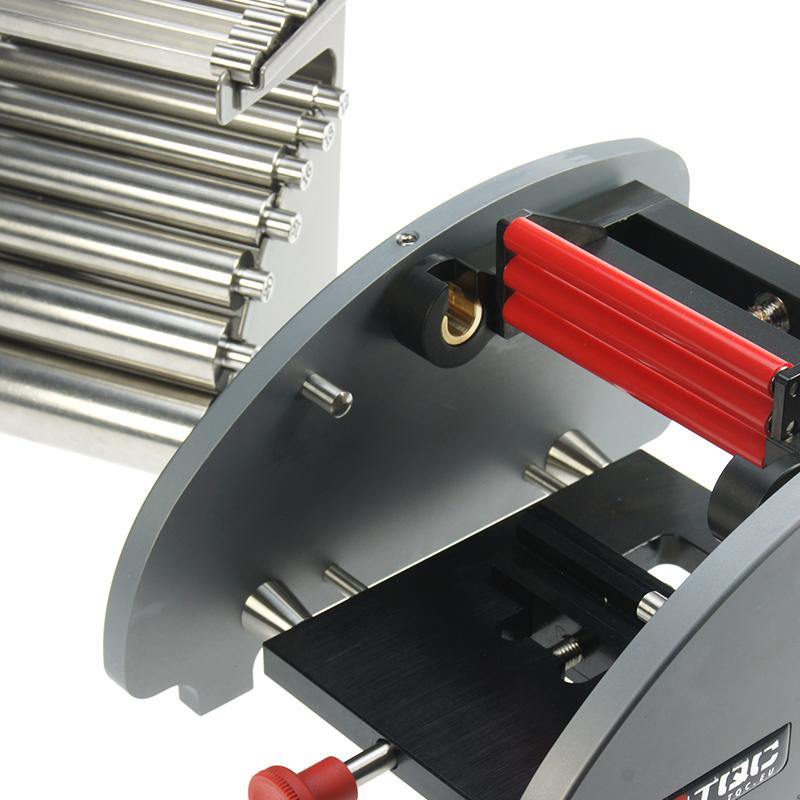

Tapered shaft size Φ 3.1~ 38mm, shaft Rod size 2-32mm, anodic oxidation aluminum and stainless steel material, ergonomic design clamping device, bending arm large knob for easy operation, suitable for measuring plate thickness ≤ 0.8mm.

Model

SP1820

Get Quote

Category : Bend Tester

Brand : TQC sheen

SKU : NB010007

Service :The delivery and service By NBCLab.Com

Overview

The Dutch TQC SP1820 cylindrical mandrel bending tester is used to evaluate the performance of varnishes, paints, and coatings against cracking or disbonding from sheet metal when bent around a tapered shaft under standard conditions. The instrument complies with ISO6860 and ASTM D522 standards.

Features

SP1820 is made of anodic oxidation aluminum and stainless steel. 2. Adopt an ergonomically designed test panel clamping device. 3. The large knob on the bending arm makes it easy to bend.

Principle

Assess the cracking or disbonding performance of plates coated with varnish, paints or coatings under standard conditions by bending them around a tapered shaft.

Applications

Varnish, paints, coating performance testing

Standards

ISO6860、ASTM D522

Steps

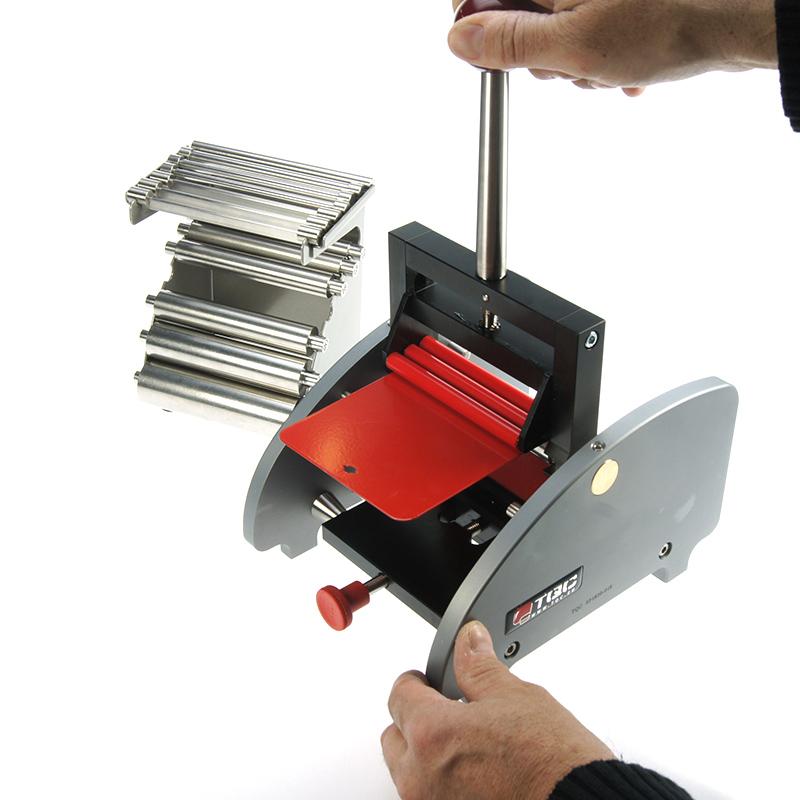

Prepare a test plate with a size of 100 x 180mm and a thickness of less than or equal to 0.8mm. 2. Clamp the test plate to the test panel clamping device. 3. Use the large knob on the bending arm to perform the bending operation. 4. Observe the performance of the coating when bending around the tapered shaft.

Notice

• The thickness of the test plate shall not exceed 0.8mm. • Make sure to use conical shafts and shaft rods that meet specifications • Pay attention to safety protection during operation

Taper shaft diameter Range
3.1mm~38mm
Standard mandrel diameter

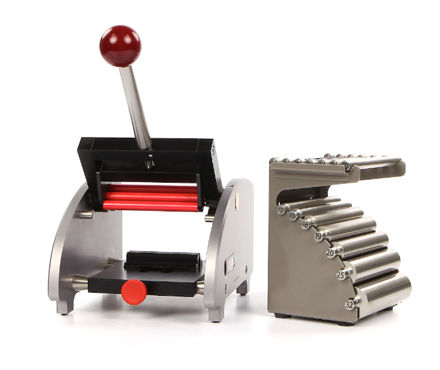

2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32mm
Test board Size
100x180mm
Maximum test plate thickness
0.8mm
instrument Size
110x250x150mm
weight
4200g
Meet the standard
ISO6860 and ASTM D522
