QIWEI PHS-3E pH Meter Benchtop Measurement range -2~ 18pH automatic temperature compensation

Name: QIWEI PHS-3E pH Meter Benchtop Measurement range -2~ 18pH automatic temperature compensation
Brand: QiWei
SKU: NB001012
Price: 208.0 USD
Availability: InStock

$ 208.00Ex works

Measurement range -2~ 18pH, equipped with special sensitive film Glass electRode Sensitivity, support automatic temperature compensation and Data storage function, Stability and easy operation.

Model

PHS-3E

Get Quote

Category : pH Meter

Brand : QiWei

SKU : NB001012

Service :The delivery and service By NBCLab.Com

Overview

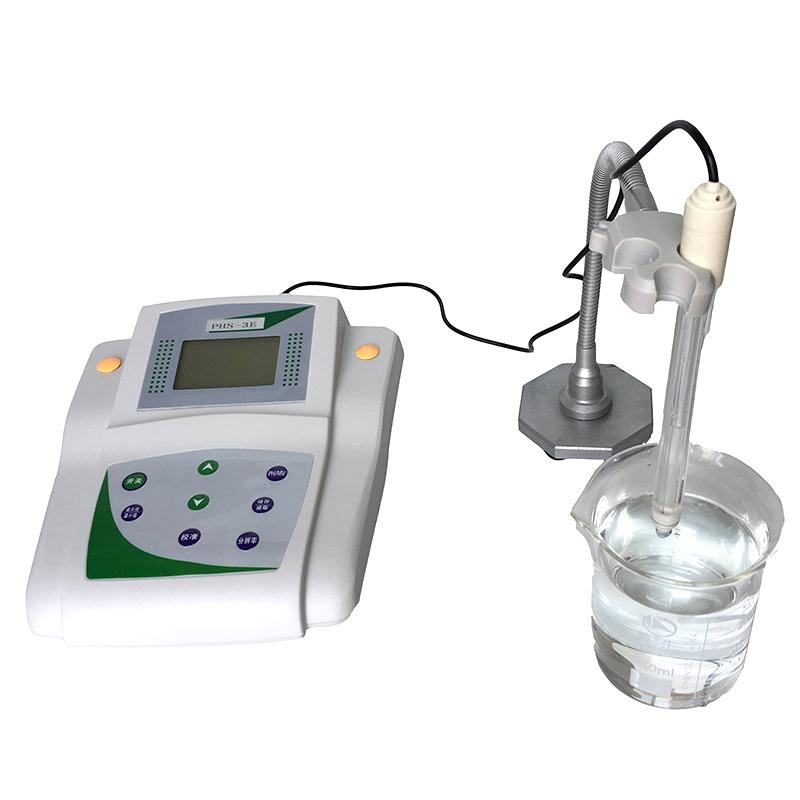

QIWEI PHS-3E pH meter is a Benchtop microcomputer pH meter with a wide range of -2~ 18pH. Glass electrodes made of special sensitive films have high Sensitivity, Data storage and extraction functions, automatic temperature compensation, easy operation, stable and reliable measurement data.

Features

1. Measurement range, covering -2~ 18pH 2. Adopt special sensitive film Glass electrode, Sensitivity is high 3. Data storage and extraction 4. Automatic temperature compensation function 5. Easy and simple operation 6. Stability of measurement data

Principle

The pH meter uses a Glass electrode as an indicator Electrode, which is sensitive to hydrogen ions. When inserted into the solution under test, the Electrode potential changes with the concentration and temperature of hydrogen ions. At 25 ° C, the Electrode potential changes by 59.16mV for every 1 pH change. The potential change between the Glass electrode and the reference Electrode (Calomel electrode) conforms to the formula: Delta E = -58.16 × Delta pH × (273 + t ° C)/293 (mV). The pH value of the solution is determined by measurement of the potential difference between the two Electrodes. PHS-3E is equipped with a composite Electrode composed of Glass electrode and Ag-Agcl Electrode, with a pH value of 7 +/- 0.25pH at zero point.

Steps

1. Insert Electrode into the tested solution 2. The instrument automatically performs temperature compensation 3. Read and record measurement data 4. Data storage and extraction operation

Notice

• Please read the instructions carefully before use • Electrode head is made of special sensitive film and needs careful protection • Electrode is fully immersed in the solution during measurement • Regularly calibrate instruments to ensure Measurement accuracy • Pay attention to data integrity when storing data • Electrode cleaning immediately after use

PH Measurement Range
-2~18pH
PH Measurement accuracy
±0.01/0.1pH
resolution
pH: 0.01pH/Temperature: +/- 1 ℃
Measurement Range
0~100℃
Measurement accuracy
±1℃
Stability (zero drift)
≤ 0.01pH +/- 1 word/2h
Data storage
Data storage function
power supply
9V DC power supply
Dimension
230*200*60mm
weight
About 1.5Kg
Standard Electrode Reagent
E201-C-L Glass PH Composite Electrode (suitable for solution temperature measurement in the Range of 0-100 ° C); Temperature Electrode (only suitable for solution use in 0-65 ° C); PH Buffer; Power Adapter
Permissible Ambient Temperature
0~40℃
Allowable relative humidity
<85%
Input Impedance
>1x1012Ω
Solution temperature compensation Range
5~60℃
Temperature compensation method
Automatic/manual
mV Measurement Range
±1000mV
