Overview

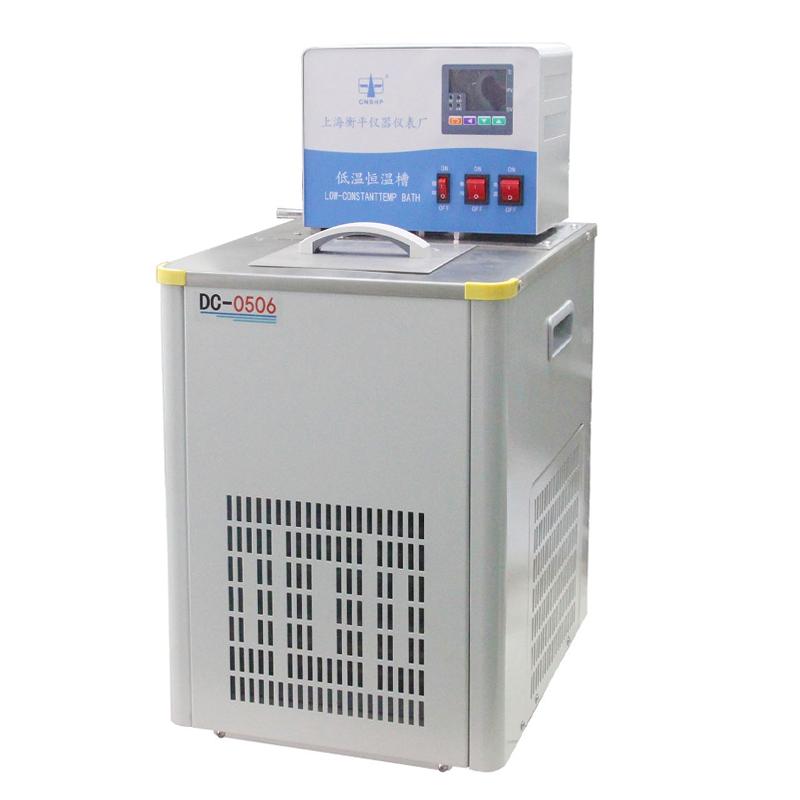

CNSHP DC6506 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and low Fluctuation. The Compressor with good fully enclosed technology (below -40 ℃ or 30 liters series adopts all imported double Compressor cascade refrigeration technology and heat exchange system) has high cooling efficiency and low noise. The instrument works stably and reliably, and the operation is convenient and safe.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range: optional -50~ 100 ℃ (medium according to Temperature range of pure water, ethylene glycol, alcohol, etc.), can also be fully in accordance with user requirements design, production of customized products
4. Capacity range: 6L, 10L, 15L, 20L, 30L, and can also design and produce customized products according to user requirements
5. The fuselage shell adopts anti-aging electrostatic spraying technology, and the platen liner mixing pump is made of good SUS304 stainless steel material, which is excellent in workmanship
6. The finely crafted front panel and countertop of the chassis, coupled with the unique user-friendly R rounded design structure, can avoid operators from being accidentally injured by edges and corners
7. Removable ventilation grille, easy to clean the condenser of the refrigeration unit
8. domestic circulation function: the use of non-heat centrifugal circulation pump, to avoid the traditional pump due to its own heat production and affect the temperature field of the tank
9. external circulation function: the circulation pump can circulate outside the thermostatic liquid to establish a second temperature field
10. Low Temperature Circulating Bath Safety protection device: with power-off protection function, upper and lower limit temperature setting function, temperature runaway protection and alarm function, heating device with low water level anti-dry burning, explosion-proof function, Compressor overheating, overcurrent multiple protection function, Sensor open circuit display function
Principle
Single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy, Fluctuation is small. The Compressor with good fully enclosed technology (below -40 ℃ or 30 liters series adopts all imported double Compressor cascade refrigeration technology and heat exchange system) has high refrigeration efficiency and low noise. Professional circulating mixing design ensures that the liquid in the tank forms a uniform dispersion and smooth in the internal circulation, and the heat exchange is smooth.
Applications
Bioengineering, food, chemical industry, metallurgy, chemical analysis, petroleum, research institutes, universities, factory laboratories, Quality control department, thermostatic field: Sensor detection, thermostatic biochemical reaction, thermostatic material aging, etc. Biochemical field: Rotary evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, atomic absorption, ICP-MS, ICP, nuclear magnetic resonance, CCD, biological fermentation tank, chemical reactor (synthesizer), etc. Material field: electron microscopy, X-Rays diffraction, X-fluorescence, vacuum sputtering Eletroplating, vacuum coating machine, ICP etching, various semiconductor equipment, fatigue testing machine, chemical deposition system, atomic deposition system Physical and chemical fields: lasers, magnetic fields, various molecular pumps, diffusion pumps, ion pumps, and materials
Steps
1. Place the sample in the open bath thermostatic, or externally control the external thermostatic Measurement unit
2. Select the appropriate medium (pure water, ethylene glycol, alcohol, etc.) according to the Temperature range
3. Set the required temperature parameters
4. Start domestic circulation or external circulation function
5. Monitor temperature display and operating status
Notice
• Power supply voltage meets requirements before use (220VAC +/- 10%, 50Hz)
• Select the appropriate medium according to the Temperature range
• Pay attention to the low water level protection function to prevent dry burning
• Regularly clean the condenser of the refrigeration unit
• Safety protection device status during operation
• Avoid liquid overflow in the tank
• Pay attention to the use of folding handles on both sides or heavy-duty self-locking casters when handling
