Overview

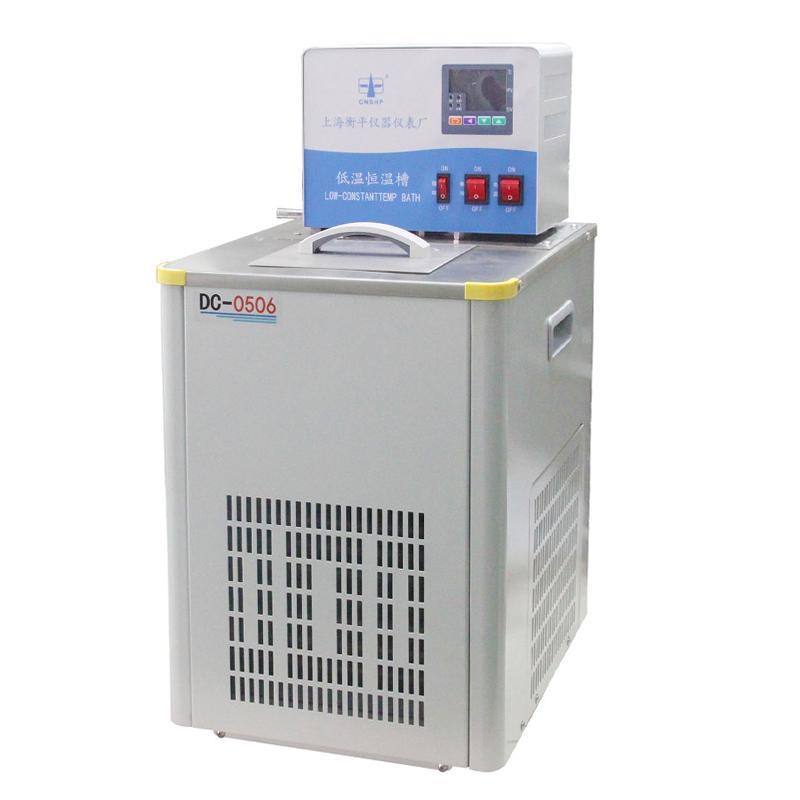

CNSHP DC1015 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and low Fluctuation. The Compressor with good fully enclosed technology has high cooling efficiency and low noise. The instrument works stably and reliably, and is easy and safe to operate. It is suitable for internal and external temperature control applications.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range -50~ 100 ℃, capacity range 6L, 10L, 15L, 20L, 30L, can be customized
4. The fuselage shell adopts anti-aging electrostatic spraying technology, and the liner mixing pump adopts SUS304 stainless steel material
5. Humanized R rounded corner design structure to avoid operators being injured by edges and corners
6. Removable ventilation grille, easy to clean refrigeration unit condenser
7. The domestic circulation function adopts a non-heat centrifugal circulation pump to avoid the traditional pump's own heat generation affecting the temperature field of the tank
8. The external circulation function can be circulated through the external circulation of thermostatic liquid to establish a second temperature field
9. Multiple Safety protection devices: Power-off protection, upper and lower limit temperature setting, temperature loss protection and alarm, low water level anti-dry burning and explosion-proof, Compressor overheating and overcurrent protection, Sensor open circuit display
Principle
Single chip microprocessing control, self-tuning PID adjustment technology, through the imported High Accuracy Platinum resistance (Pt100) temperature measurement, to achieve accurate temperature control. The fully enclosed Compressor technology is used for refrigeration, and the professional circulation mixing design ensures that the liquid in the tank forms a uniform dispersion and smooth in the internal circulation, and the heat exchange is smooth.
Applications
Bioengineering, Food, Chemical, Metallurgy, Chemical Analysis, Petroleum, Research Institute, University of Higher Education, Factory Laboratory, Quality control department, Sensor detection, thermostatic biochemical reaction, thermostatic material aging, Rotary evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, Atomic Absorption, ICP-MS, ICP, Nuclear Magnetic Resonance, CCD, Biological fermentation tank, Chemical Reactor, Electron Microscope, X-Rays Diffraction, X-fluorescence, Vacuum Sputtering Eletroplating, Vacuum Coating Machine, ICP Etching, Semiconductor Equipment, Fatigue Tester, Chemical Deposition System, Atomic Deposition System, Superconducting Magnetic Resonance, Linear Accelerator, CT, Low Magnetic Resonance, X Optical machine, microwave therapy machine, medical cold cap, cooling blanket, laser, magnetic field, molecular pump, diffusion pump, ion pump
Steps
1. Place the sample in an open bath thermostatic
2. Measurement unit that requires thermostatic external control
3. Choose domestic circulation or external circulation function as needed
4. Set the required temperature parameters
5. Start the device for thermostatic control
Notice
• Pay attention to the choice of medium, according to Temperature range, pure water, ethylene glycol, alcohol, etc
• Regularly clean the removable ventilation grille to keep the refrigeration unit condenser clean
• Pay attention to water level monitoring to prevent dry burning at low water level
• Safety protection check before use
• Pay attention to the use of folding handles on both sides or heavy-duty self-locking casters when handling
