Overview

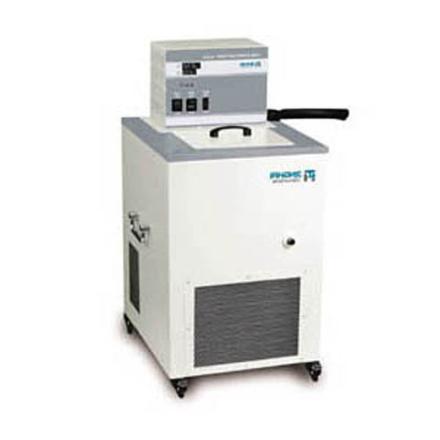

CNSHP DC3015 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and low Fluctuation. The Compressor with good fully enclosed technology has high cooling efficiency and low noise. The instrument works stably and reliably, and the operation is convenient and safe. Suitable for internal/external temperature control applications, the sample can be placed directly in the open bath thermostatic, or it can be externally controlled Measurement unit that requires thermostatic.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range -50~ 100 ℃, capacity range 6L, 10L, 15L, 20L, 30L, can be customized according to user requirements
4. The fuselage shell adopts anti-aging electrostatic spraying technology, and the platen liner mixing pump is made of good SUS304 stainless steel material
5. Humanized R rounded corner design structure can avoid operators being injured by edges and corners
6. Removable ventilation grille, easy to clean the condenser of the refrigeration unit
7. The domestic circulation function adopts a non-heat centrifugal circulation pump to avoid the traditional water pump from affecting the temperature field of the tank due to its own heat production
8. The external circulation function can be circulated through the external circulation of thermostatic liquid to establish a second temperature field
9. Multiple Safety protection devices: power-off protection, upper and lower limit temperature setting, temperature loss protection and alarm, low water level anti-dry burning and explosion-proof heating device, Compressor overheating and overcurrent protection, Sensor open circuit display function
Principle
Low Temperature Circulating Bath adopts monolithic microprocessing control, self-tuning PID adjustment technology, and temperature measurement and control through imported High Accuracy Platinum Resistor (Pt100). It adopts a fully enclosed Compressor for refrigeration, and ensures that the liquid in the tank is dispersed evenly and smoothly in the internal circulation through a professional circulation stirring design. The instrument has domestic circulation and external circulation functions, which can provide a stable temperature field source.
Applications
Bioengineering, Food, Chemical, Metallurgy, Chemical Analysis, Petroleum, Research Institute, Colleges and Universities, Factory Laboratory, Quality control department, Thermostatic field, Biochemical field, Materials field, Physicochemical field
Steps
1. Place the instrument on a stable bench
2. Select the appropriate medium (pure water, ethylene glycol, alcohol, etc.) according to the Temperature range and add it to the tank
3. Connect the power supply and turn on the power switch.
4. Set the required temperature parameters
5. Start the instrument and wait for the temperature to stabilize
6. Choose domestic circulation or external circulation mode as needed
7. Put the sample in the tank or connect an external device
8. After use, turn off the power and clean the instrument
Notice
• Please read the instructions carefully before use
• Select the appropriate medium according to the Temperature range
• Power supply voltage compliance (220VAC +/- 10%, 50Hz)
• Pay attention to the water level to prevent the heating device from dry burning
• Regularly clean the condenser of the refrigeration unit
• Pay attention to safety when handling, 20L and above series use heavy-duty self-locking casters
• Avoid use in humid or corrosive gas environments
• If there is an abnormal situation, immediately cut off the power and contact a professional
