Overview

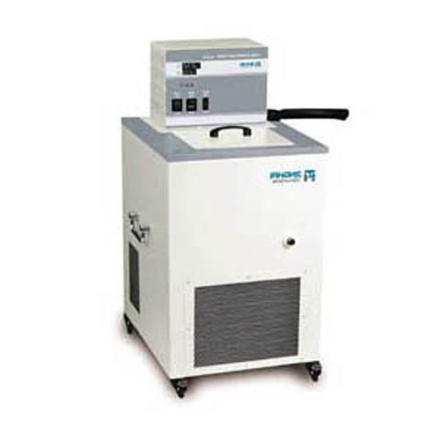

CNSHP DC3020 Digital Display Low Temperature Circulating Bath is a High Accuracy Temperature Control Device with Monolithic Microprocessing Control and Self-tuning PID Adjustment. Equipped with imported platinum resistance temperature measurement, high temperature control accuracy and low Fluctuation. Using fully enclosed Compressor or imported double Compressor cascade refrigeration technology, high refrigeration efficiency, low noise, stable and reliable operation, convenient and safe operation. Suitable for internal and external temperature control applications, can directly control external devices in the thermostatic tank or externally.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range -50~ 100 ℃, capacity range 6L to 30L, support customization
4. Shell anti-aging static spray, liner and mixing pump using SUS304 stainless steel
5. Humanized R rounded corner design to avoid operator injuries
6. Removable ventilation grille for easy cleaning
7. The domestic circulation adopts a non-heat centrifugal circulation pump to avoid its own heat generation affecting the temperature field
8. The external circulation function can establish a second temperature field
9. Multiple Safety protection: Power off protection, temperature setting limit, temperature runaway alarm, low water level anti-dry burning, Compressor overheating and overcurrent protection, Sensor open circuit display
Principle
The equipment controls the self-tuning PID adjustment through single-chip microprocessing, and uses imported High Accuracy Platinum Resistance (Pt100) to monitor the temperature in real time to achieve accurate temperature control. The fully enclosed Compressor or cascade refrigeration technology is used for refrigeration, and the professional circulation mixing design is used to ensure uniform liquid dispersion and smooth heat exchange in the tank. Domestic circulation adopts a heatless centrifugal pump to avoid additional heat generation, and external circulation can lead the thermostatic liquid out to establish a second temperature field.
Applications
Bioengineering, food, chemical industry, metallurgy, chemical analysis, petroleum, research institutes, colleges and universities, factory laboratories, Quality control department, thermostatic field: Sensor detection, thermostatic biochemical reaction, thermostatic material aging, etc., biochemical field: Rotary evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, atomic absorption, ICP-MS, ICP, nuclear magnetic resonance, CCD, biological fermentation tank, chemical reactor, etc., material field: electron microscopy, X-Rays diffraction, X-fluorescence, vacuum sputtering Eletroplating, vacuum coating machine, ICP etching, various semiconductor equipment, fatigue testing machine, chemical deposition system, atomic deposition system, etc., ** Fields: Superconducting Magnetic Resonance, Linear Accelerator, CT, Low Magnetic Resonance, X-ray Machine, Microwave Therapy Machine, Medical Cold Cap, Cooling Blanket, etc., Physicochemical Fields: Lasers, Magnetic Fields, Various Molecular Pumps, Diffusion Pumps, Ion Pumps and Materials Fields
