Overview

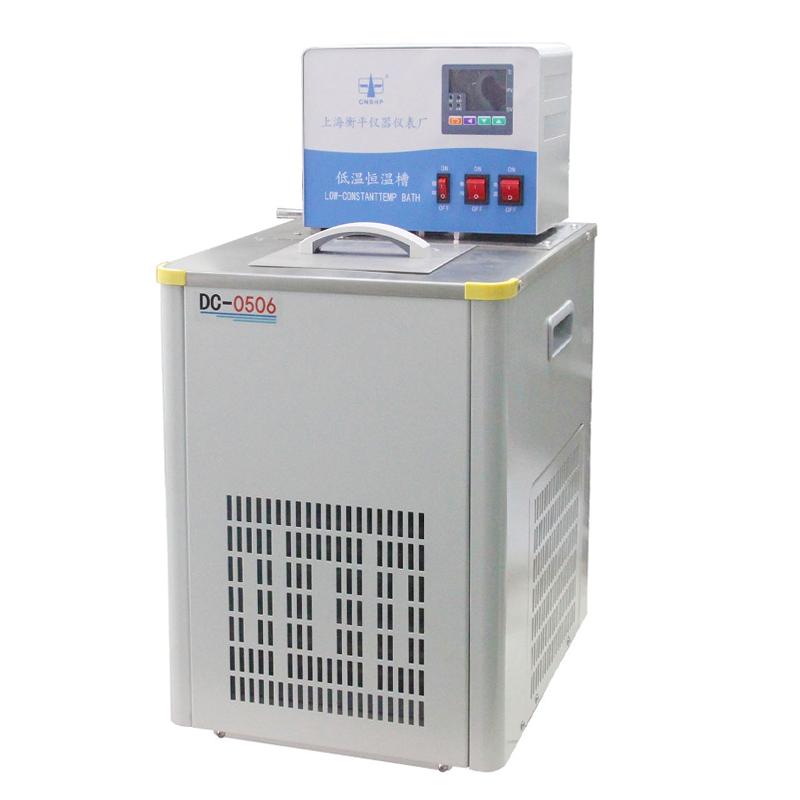

CNSHP DC4020 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and low Fluctuation. The Compressor with good fully enclosed technology has high cooling efficiency and low noise. The instrument works stably and reliably, and is easy and safe to operate. It is suitable for internal and external temperature control applications.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range -50~ 100 ℃, capacity range 6L to 30L, can be customized
4. The fuselage shell adopts anti-aging electrostatic spray technology, and the liner adopts SUS304 stainless steel material
5. Humanized R rounded corner design structure to avoid operators being injured by edges and corners
6. Removable ventilation grille, easy to clean refrigeration unit condenser
7. The domestic circulation function adopts the non-heat centrifugal circulation pump
8. The external circulation function can establish a second temperature field
9. Safety protection devices include power-off protection, temperature setting, runaway alarm, etc
Principle
The microcomputer temperature control system adopts self-tuning PID regulation technology, cooperates with the High Accuracy platinum resistance temperature sensor to monitor the temperature in real time, controls the Compressor refrigeration system and the circulating pump in the Tank, so that the liquid in the tank forms a uniform and smooth circulation, and realizes accurate temperature control and stable heat exchange.
Applications
Bioengineering, Food, Chemical, Metallurgy, Chemical Analysis, Petroleum, Sensor Detection, Thermostatic Biochemical Reaction, Thermostatic Material Aging, Rotary Evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, Atomic Absorption, ICP-MS, ICP, Nuclear Magnetic Resonance, CCD, Biological Fermentation Tank, Chemical Reactor, Electron Microscope, X-Rays Diffraction, X-Fluorescence, Vacuum Sputtering Eletroplating, Vacuum Coating Machine, ICP Etching, Semiconductor Equipment, Fatigue Tester, Chemical Deposition System, Atomic Deposition System, Superconducting Magnetic Resonance, Linear Accelerator, CT, Low Magnetic Resonance, X-Ray Machine, Microwave Therapy Machine, Medical Cold Cap, Cooling Blanket, Lasers, Magnetic Fields, Molecular Pumps, Diffusion Pumps, Ion Pumps
Steps
1. Place the instrument in a smooth ventilated place and connect it to the power supply
2. Select the appropriate medium (pure water, ethylene glycol, alcohol, etc.) according to the Temperature range and add the Tank
3. Set the required temperature parameters
4. Turn on the power switch and start Thermostatic bath
5. Choose domestic circulation or external circulation mode as needed
6. Monitor the temperature display to ensure stability at the set value
7. Turn off the power after use and clean the equipment
Notice
• Please read the instructions carefully before use
• Power supply voltage meets equipment requirements (220V +/- 10%, 50Hz)
• Select the appropriate medium according to the Temperature range
• Pay attention to the low water level protection function to prevent dry burning
• Regularly clean ventilation grilles and condensers
• Pay attention to safety when handling, 20L and above models use self-locking casters
Avoid use in humid or flammable environments
• If there is an abnormal situation such as temperature control, stop using it immediately and contact a professional
