Overview

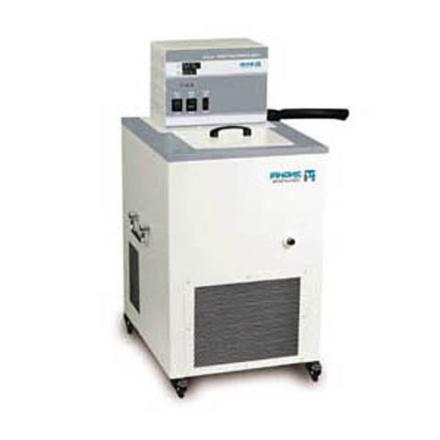

CNSHP DC0530 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and small Fluctuation. Compressor refrigeration with good fully enclosed technology has high refrigeration efficiency and low noise. The instrument works stably and reliably, and the operation is convenient and safe.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range: -5~ 100 ℃, capacity 30L
4. The fuselage shell adopts anti-aging electrostatic spraying technology, and the platen liner mixing pump is made of good SUS304 stainless steel material
5. Humanized R rounded corner design structure can avoid operators being injured by edges and corners
6. Removable ventilation grille, easy to clean the condenser of the refrigeration unit
7. domestic circulation function: no heat centrifugal circulation pump
8. external circulation function: the circulation pump can circulate outside the thermostatic liquid to establish a second temperature field
9. Multiple Safety protection devices: Power-off protection, upper and lower limit temperature setting, temperature loss protection and alarm, low water level anti-dry burning and explosion-proof, Compressor overheating and overcurrent protection, Sensor open circuit display
Principle
Adopt single chip microprocessor control, self-tuning PID adjustment technology, and carry out temperature measurement and control through imported High Accuracy Platinum Resistance (Pt100). Adopt Compressor refrigeration system to achieve cooling, and ensure uniform and smooth liquid dispersion and smooth heat exchange in the tank through professional circulating stirring design.
Applications
Bioengineering, Food, Chemical, Metallurgy, Chemical Analysis, Petroleum, Sensor Detection, Thermostatic Biochemical Reaction, Thermostatic Material Aging, Rotary Evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, Atomic Absorption, ICP-MS, ICP, Nuclear Magnetic Resonance, CCD, Biological Fermentation Tank, Chemical Reactor, Electron Microscope, X-Rays Diffraction, X-Fluorescence, Vacuum Sputtering Eletroplating, Vacuum Coating Machine, ICP Etching, Semiconductor Equipment, Fatigue Tester, Chemical Deposition System, Atomic Deposition System, Superconducting Magnetic Resonance, Linear Accelerator, CT, Low Magnetic Resonance, X-Ray Machine, Microwave Therapy Machine, Medical Cold Cap, Cooling Blanket, Lasers, Magnetic Fields, Molecular Pumps, Diffusion Pumps, Ion Pumps
Steps
1. Place the instrument on a stable bench
2. Connect the power supply to ensure that the voltage meets the requirements of 220V +/- 10% 50HZ
3. Select the appropriate medium (pure water, ethylene glycol, alcohol, etc.) according to the Temperature range and add the Tank
4. Set the required temperature parameters
5. Start the instrument and wait for the temperature to stabilize
6. Samples can be placed directly in the tank or connected to external devices through external pipes
