Overview

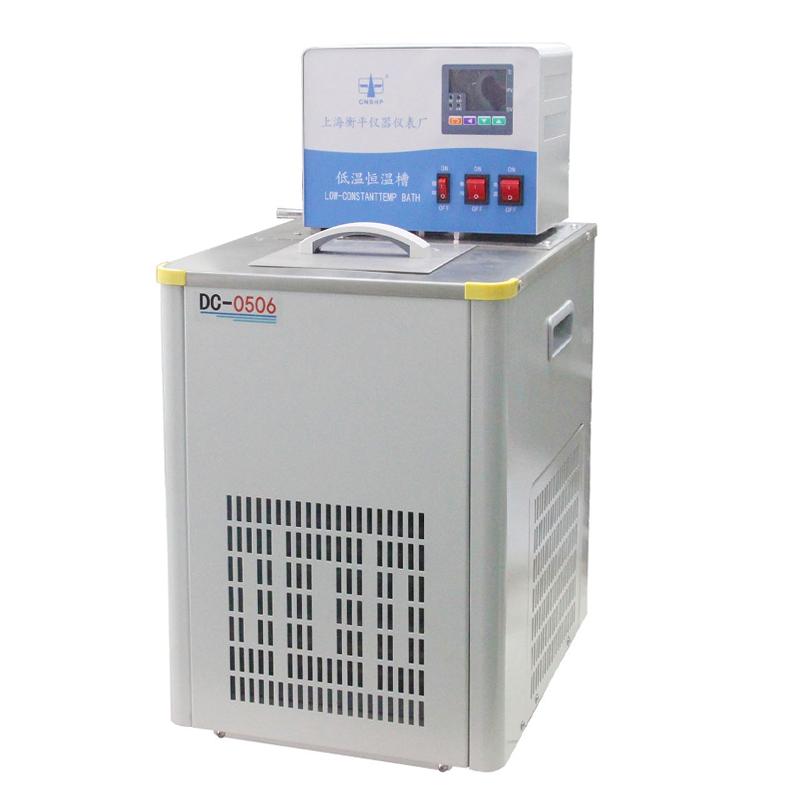

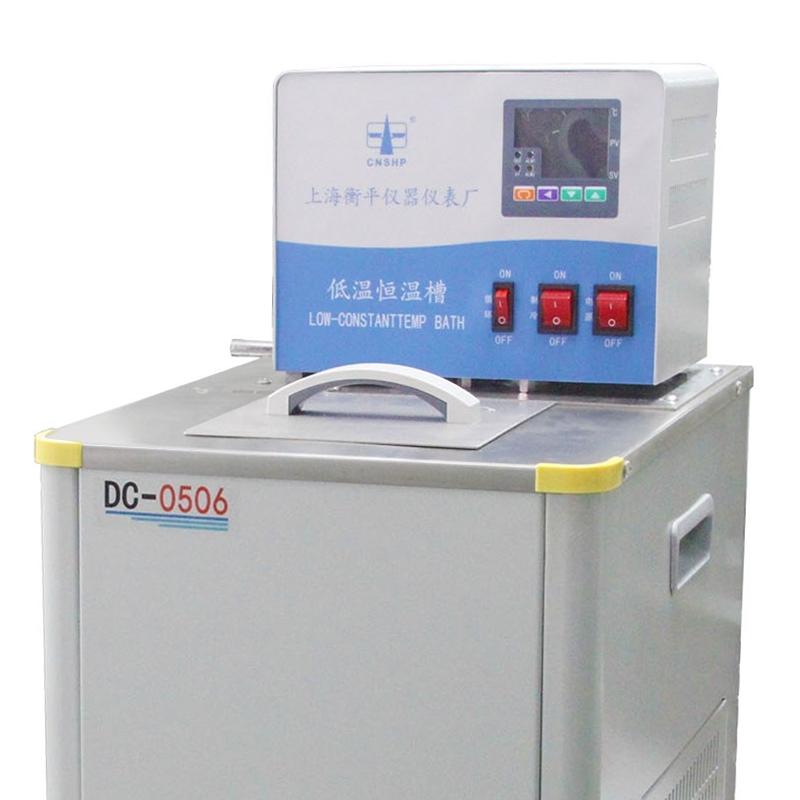

CNSHP DC3030 Digital Display Low Temperature Circulating Bath adopts single-chip microprocessing control, self-tuning PID adjustment, imported High Accuracy Platinum Resistance (Pt100) temperature measurement, high temperature control accuracy and low Fluctuation. The Compressor with good fully enclosed technology has high cooling efficiency and low noise. The instrument works stably and reliably, and the operation is convenient and safe. Suitable for internal/external temperature control applications, the sample can be placed directly in the open bath thermostatic, or it can be externally controlled Measurement unit that requires thermostatic.
Features
1. Adopt microcomputer temperature control PID adjustment, self-tuning control technology, temperature control accuracy up to +/- 0.05 ℃
2. Fully enclosed brand Compressor refrigeration system, no CFC, fast cooling
3. Temperature range: -30~ 100 ℃, capacity 30L
4. The fuselage shell adopts anti-aging electrostatic spraying technology, and the platen liner mixing pump is made of good SUS304 stainless steel material
5. Humanized R rounded corner design structure can avoid operators being injured by edges and corners

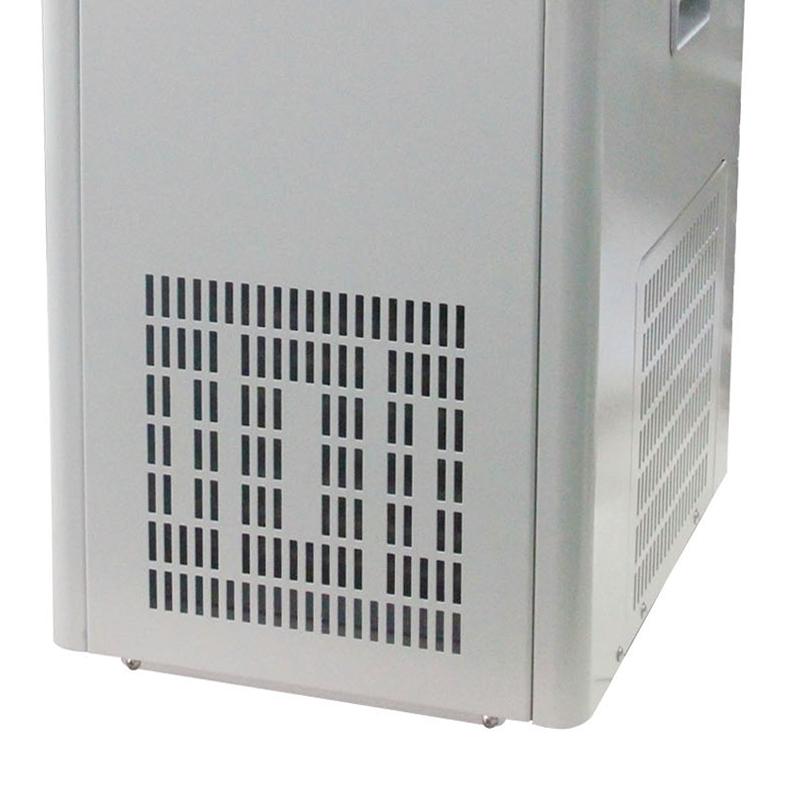

6. Removable ventilation grille, easy to clean the condenser of the refrigeration unit
7. domestic circulation function: the use of non-heat centrifugal circulation pump, to avoid the traditional pump due to its own heat production and affect the temperature field of the tank

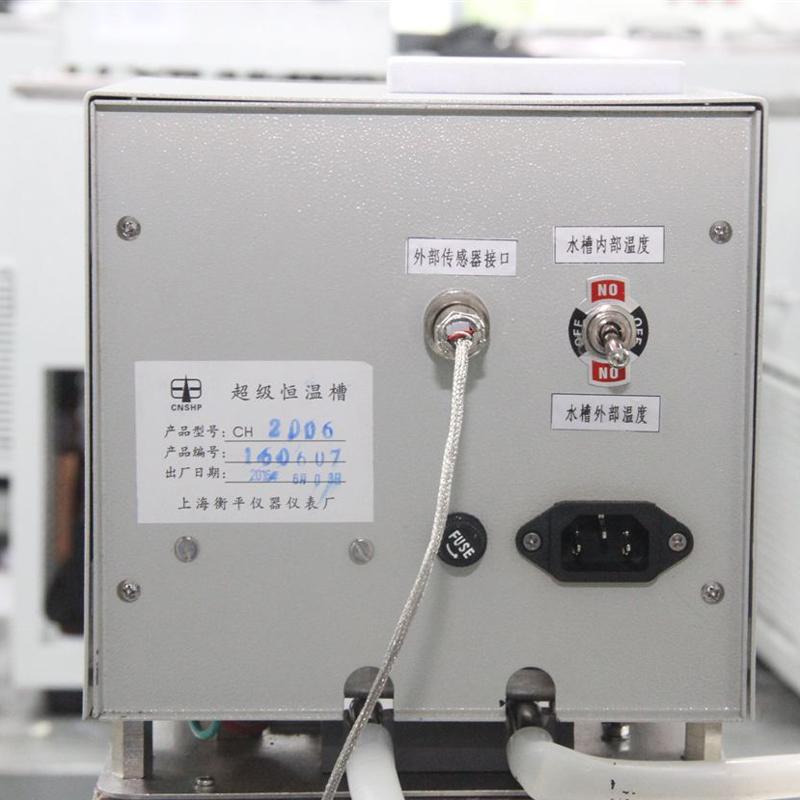

8. external circulation function: the circulation pump can circulate outside the thermostatic liquid to establish a second temperature field
9. Multiple Safety protection devices: Power off protection, upper and lower limit temperature setting, temperature loss protection and alarm, low water level anti-dry burning and explosion-proof, Compressor overheating and overcurrent protection, Sensor open circuit display function
Principle
The Low Temperature Circulating Bath adopts self-tuning PID adjustment technology through the microcomputer temperature control system, and cooperates with the High Accuracy platinum resistance temperature sensor for accurate temperature measurement and temperature control. The fully enclosed Compressor refrigeration system is used to achieve rapid cooling, and the professional circulating stirring design ensures that the liquid in the tank forms a uniform dispersion and smooth internal circulation, and the heat exchange is smooth, thus providing a constant field source with High Accuracy and uniform temperature.
Applications
Bioengineering, Food, Chemical, Metallurgy, Chemical Analysis, Petroleum, Sensor Detection, Thermostatic Biochemical Reaction, Thermostatic Material Aging, Rotary evaporator, Abbe refractometer, Viscometer, Rheometer, Polarimeter, Atomic Absorption, ICP-MS, ICP, Nuclear Magnetic Resonance, CCD, Biological Fermentation Tank, Chemical Reactor, Electron Microscope, X-Rays Diffraction, X-Fluorescence, Vacuum Sputtering Eletroplating, Vacuum Coating Machine, ICP Etching, Various Semiconductor Equipment, Fatigue Testing Machine, Chemical Deposition System, Atomic Deposition System, Superconducting Magnetic Resonance, Linear Accelerator, CT, Low Magnetic Resonance, X-ray Machine, Microwave Therapy Machine, Medical Cold Cap, Cooling Blanket Lasers, magnetic fields, various molecular pumps, diffusion pumps, ion pumps
Steps
1. Place the equipment on a stable bench
2. Connect the power cord to ensure that the voltage meets the requirements of 220V +/- 10% 50HZ
3. Choose the appropriate medium (pure water, ethylene glycol, alcohol, etc.) to inject into the Tank as needed
4. Set the required temperature parameters
5. Start the device and the system will automatically perform temperature control
6. Select domestic circulation or external circulation mode for thermostatic operation
7. After use, turn off the device according to the correct procedure
Notice
• Please read the instructions carefully before use
• Power supply voltage meets equipment requirements (220V +/- 10% 50HZ)
• Select the appropriate medium according to the Temperature range
• Pay attention to the water level of the equipment to prevent dry burning
• Regularly clean the condenser of the refrigeration unit
• Avoid touching high or low temperature parts while the equipment is running
• In case of abnormal situation, immediately cut off the power and contact a professional
• Pay attention to safety when handling, 20L and above series use heavy-duty self-locking casters
