Overview

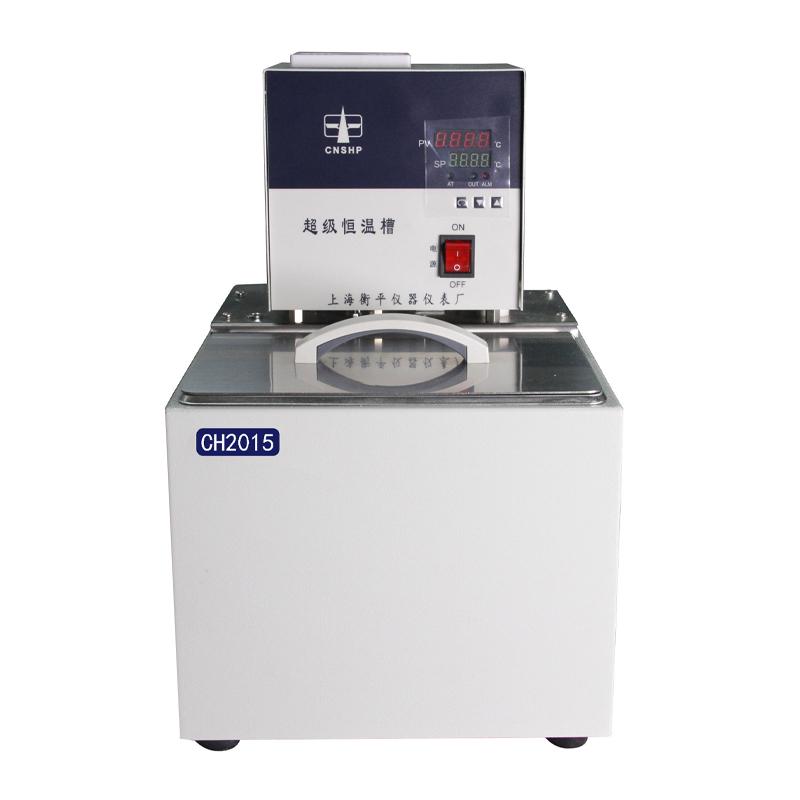

CH2015 Super Thermostatic bath is a CNSHP brand microcomputer temperature control equipment. It adopts single-chip microprocessor control, self-tuning PID adjustment and imported platinum electric temperature measurement. It has the characteristics of high temperature control accuracy and small Fluctuation. The instrument works stably and reliably, is easy and safe to operate, is equipped with broken couple protection and over-temperature alarm function, Temperature Fluctuation up to +/- 0.05 ℃, Display resolution up to 0.1 ℃, Pump Flow rate is 10L/min, and the inner tank and box are made of stainless steel, which can establish a second thermostatic field.
Features
1. Adopt single-chip microprocessor control and self-tuning PID adjustment
2. Imported platinum electricity (Pt100) temperature measurement, high temperature control accuracy, Fluctuation is small
3. Temperature Fluctuation up to +/- 0.05 ℃, Display resolution up to 0.1 ℃
4. Flow rate of pump is 10L/min, excellent circulation performance
5. The inner tank and box are made of good stainless steel
6. With a circulating pump, a second thermostatic field can be established
7. With breaking protection and over-temperature alarm function
8. Stable and reliable operation, easy and safe operation
Principle
The super Thermostatic bath realizes precise temperature control through a microcomputer temperature control system. It adopts a single-chip microprocessor and self-tuning PID adjustment technology, and cooperates with an imported platinum resistance temperature sensor (Pt100) to monitor the temperature in real time. The device circulates the liquid evenly in the tank through an internal circulation pump. When a second thermostatic field needs to be established, the precise control of the closed second temperature field can be realized through an external temperature sensor connection.
Applications
Bioengineering, Food, Chemical, Metallurgy, Petroleum, Research institutes, Colleges and universities, Factory laboratories, Quality control departments
Steps
1. When you only need to do thermostatic test in the sink, dial the temperature switch to the internal temperature
2. When it is necessary to establish a second temperature field for use, first dial the temperature switch to the internal temperature and set the sink temperature to the desired temperature
3. After the meter shows that the temperature is stable for 10 to 20 minutes, dial the temperature switch to the external temperature
4. Thermostatic bath can precisely control the second temperature field temperature through the internal PID temperature control instrument
Notice
• Thermostatic bath should be placed on a sturdy workbench
The working environment should be free of vibration and harmful gases
• Room temperature should be relatively stable, not high or low
• Room temperature should be around 25 ° C
• Thermostatic bath should be maintained regularly to remove dust from Compressor and heat sink
• Do not directly dial the temperature setting switch directly to the external temperature
• Avoid overheating in the Thermostatic bath due to slow external temperature rise, causing accidents
