Overview

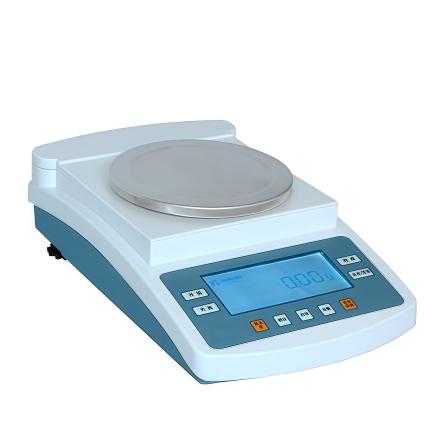

JA12002 Electronic Kilogram Balance is a High Accuracy Large Weighing Electronic Balance launched by the CNSHP brand. It adopts a unique High Accuracy Electromagnetic Force Equilibrating Sensor and a high-performance monolithic microprocessor system, which integrates high Precision, Stability, Multifunction and Automation. The weighing range is 0~ 1200g, and the Readability is 0.01g.
Features
1. Large Weighing, High Accuracy, Weighing Range 0~ 1200g, Readability 0.01g
2. Passed the GBT/T26497-2011 national standard and electromagnetic compatibility EMC five standards
3. Unique High Accuracy Electromagnetic Force Equilibrating Sensor for Durable Reliability
4. Various unit conversion, cumulative weighing, counting, weighing value automatic prompt function
5. Built-in hook weighing, can weigh large or ferromagnetic samples
6. Large horizontal adjustment wheel and horizontal indicator bubble, easy to complete the horizontal adjustment, to ensure weighing Repeatability and accuracy
7. Automatic fault detection, full scale peeling, linear four-point calibrating, overload protection
8. Built-in RS232 Communication interface, can be connected to a computer or printer, easy data recording and processing
Principle
JA12002 Electronic Kilogram Balance adopts High Accuracy Electromagnetic Force equilibrating Sensor, which can accurately measure weight by equilibrating electromagnetic force and sample gravity, and combines high-performance monolithic microprocessor system to process data to achieve fast and stable weighing. Stabilization time ≤ 6S.
Applications
Laboratory, industrial weighing, quality control, sample testing, material analysis
Standards
GBT/T26497-2011, electromagnetic compatibility EMC five standards
Steps
1. Connect the 220V external AC adapter (DC6V * 2A) for power supply
2. Use the horizontal adjustment wheel and the horizontal indicator bubble to adjust the Balance to the horizontal state
3. Boot warm-up, set the integration time as needed (2/4/8 s adjustable)
4. Place the sample in the pan (size φ 160mm) for weighing
5. Use peeling, unit conversion, counting, or accumulation functions
6. Optional connection to RS232 interface to computer or printer to record data
Notice
• Power supply voltage 220V, use the specified external AC adapter
• Horizontal adjustment must be completed before weighing to ensure weighing accuracy
• Avoid overloading to prevent damage to the Balance
• Regular calibrating and maintenance to ensure stable performance
• Sample type and volume when using built-in hook
