Overview

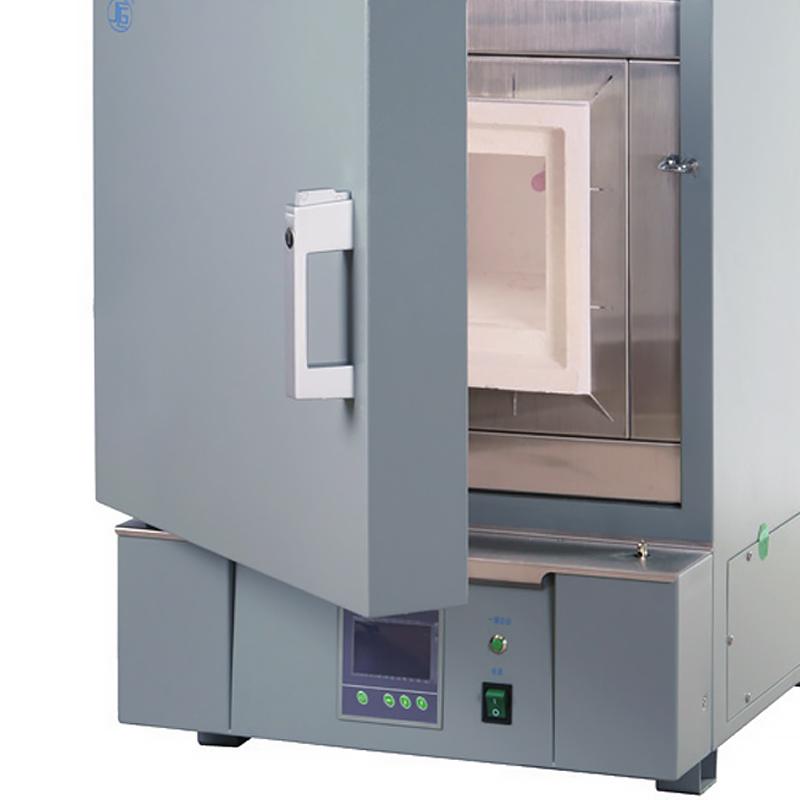

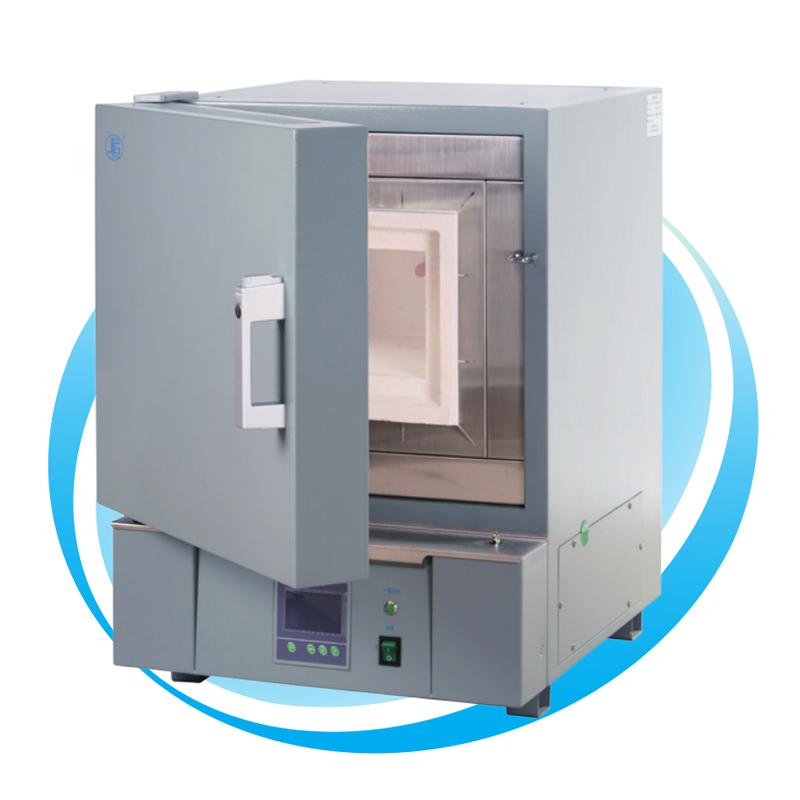

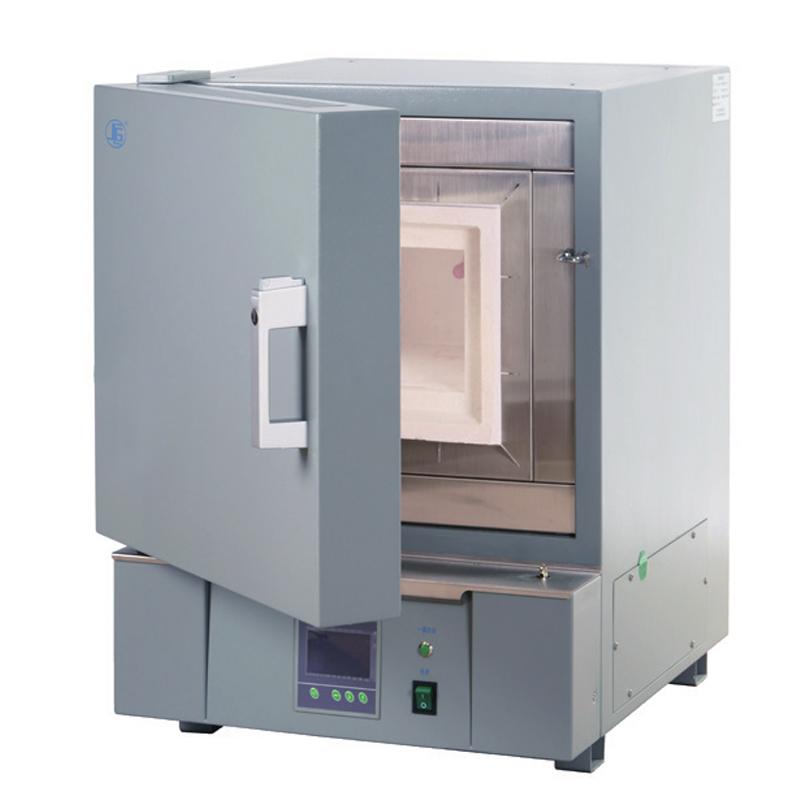

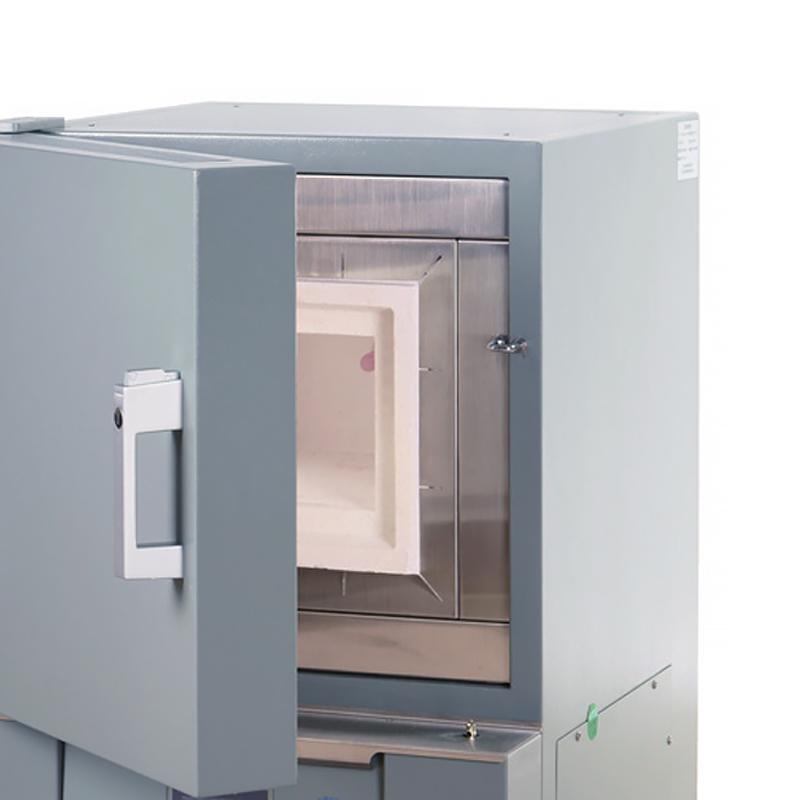

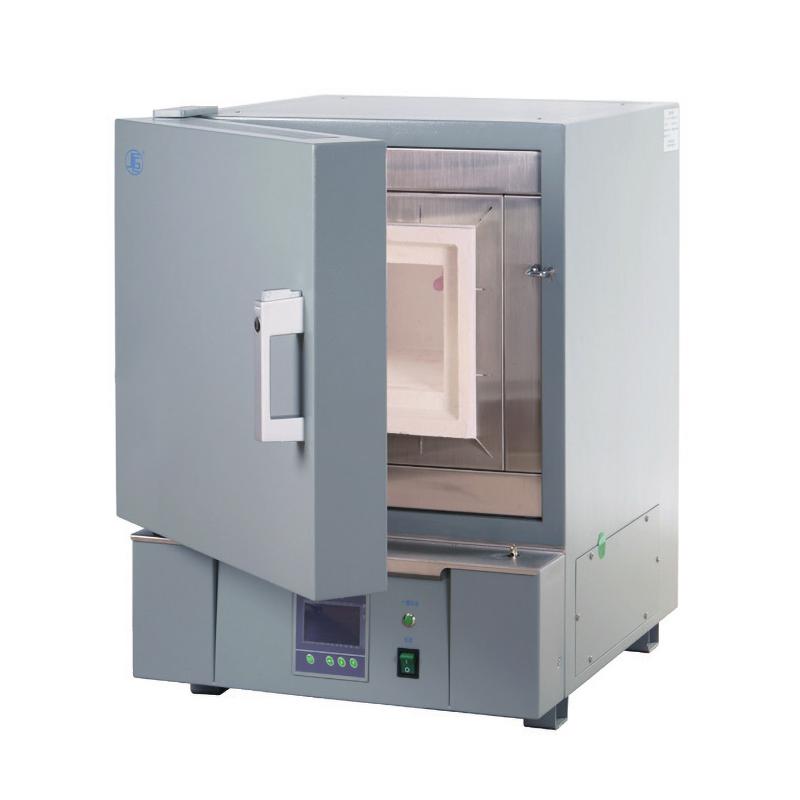

YIHENG SX2-12-10NP programmable high temperature muffle furnace is a programmable box type resistance furnace with a maximum temperature of 1000 ° C. It adopts a refractory brick furnace and uses a heating element made of good resistance wire, which is resistant to high temperature and has a long service life. Muffle furnace is a general test equipment for heating or high temperature treatment. It is often used in heat processing, industrial workpiece treatment, chemical experimental treatment, scientific research institutions and high temperature heating such as stone tools, ceramics, and dissolving.
Features
1, using a programmable controller, there are 30 programs, each segment can be set to heat up or stay, and provide programmed temperature, time, Heating power cycle.
2. Through multi-stage programmable control, simplify the complex test process and realize automatic control and operation. The door liner and box panel are made of stainless steel, which has the advantages of corrosion resistance and high temperature invariance.
3. The unique furnace door design makes it easy and safe to open the door, ensuring that the high-temperature hot air in the furnace does not leak out.
4. With microcomputer PID controller control, accurate and reliable temperature control, easy to operate.
5, door sealing is good, heat is not easy to lose, furnace temperature to maintain good uniformity.
Principle
The resistance wire heating element is used to generate high temperature in the refractory brick furnace, and the precise temperature control and multi-stage programmed heating cycle are realized by microcomputer PID controller and programmable controller.
Applications
Thermal processing, industrial workpiece treatment, chemical experimental treatment, scientific research institutions, stone tools, ceramics, dissolving and other high temperature heating
Steps
1. Set the 30-segment program of the programmable controller, and choose to heat up or stay in each segment.
2. Start the automatic control and run the program.
Notice
• Pay attention to safety when operating the furnace door to prevent the leakage of high temperature hot air
• Power supply voltage 380V 50Hz
• Regularly check the door sealing to avoid heat loss
