JINGKELIAN Checkerboard Opacity Chart with sealed waterproof and anti-Curl

Name: JINGKELIAN Checkerboard Opacity Chart with sealed waterproof and anti-Curl
Brand: JingKeLian
SKU: NB001047
Price: 160.0 USD
Availability: InStock

$ 160.00Ex works

Using sealed surface preparation, excellent waterproof and anti-Curling performance, specification 200x125mm, black and white checkerboard design is convenient for fast measurement of hiding power values within 1 second.

Model

Checkerboard

Get Quote

Category : Coating Test Cardboard

Brand : JingKeLian

SKU : NB001047

Service :The delivery and service By NBCLab.Com

Overview

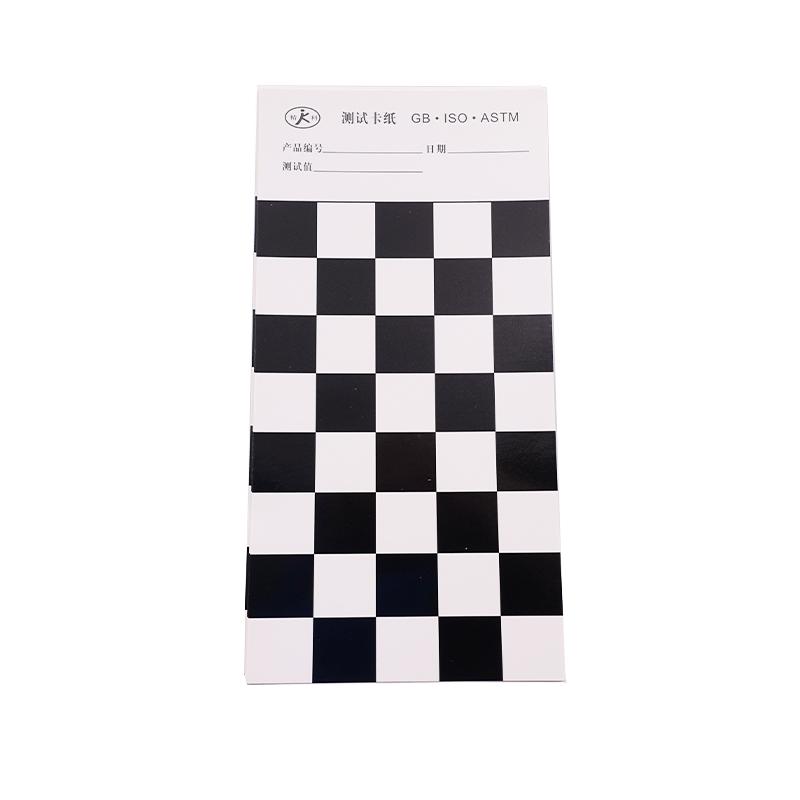

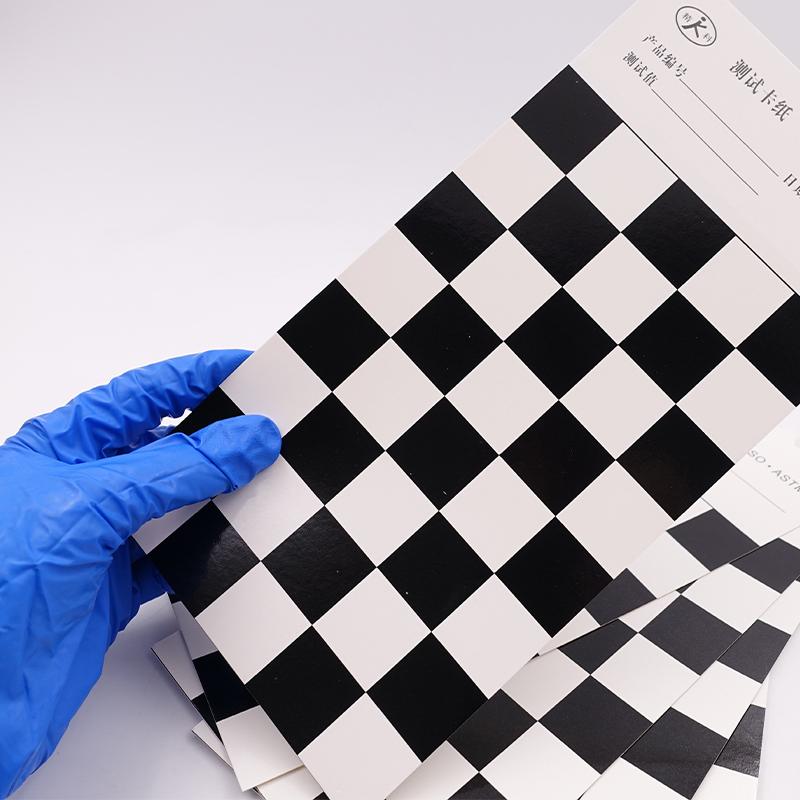

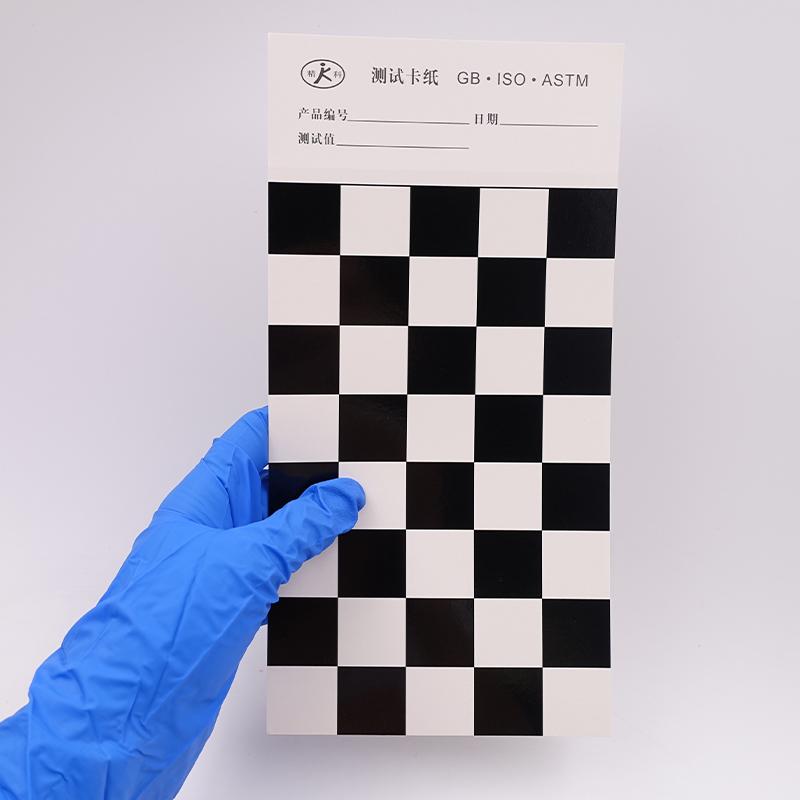

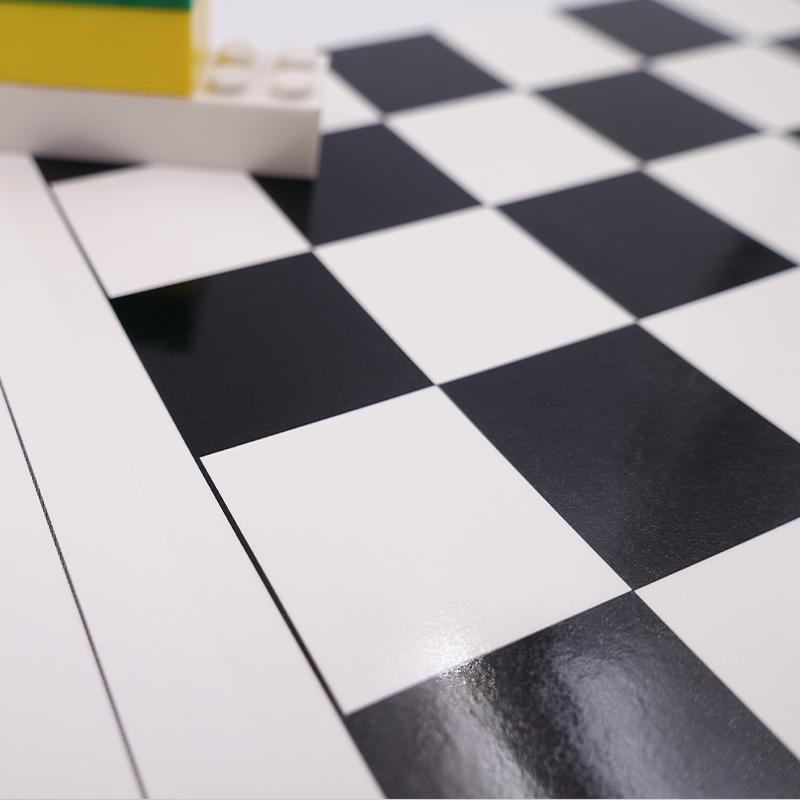

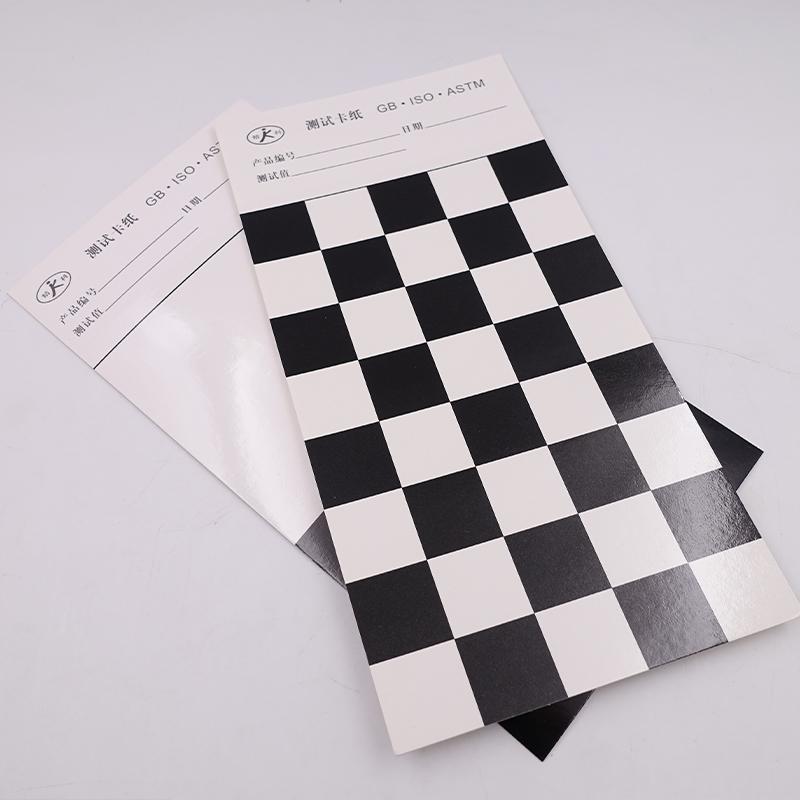

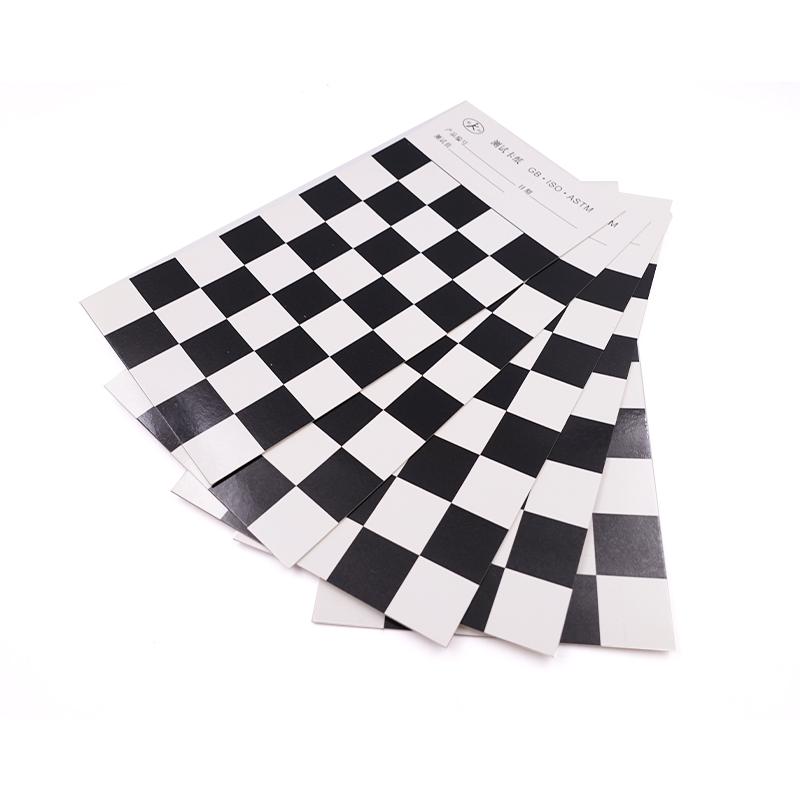

The JINGKELIAN Checkerboard Opacity Chart is 200x125mm. It is a black and white checkerboard-shaped Opacity Chart. It is used to determine the hiding power of architectural coatings, paints inks, etc., to determine the amount of Coating required for Coating to achieve a complete coating. The surface of the product is sealed, waterproof and not easy to Curl, not easy to yellow, 200 sheets per pack.

Features

1. Black and white checkerboard design, easy to measure hiding power 2. The surface is sealed and has good waterproof performance 3. Not easy to Curl and Yellowing 4. 200 sheets per pack, sufficient quantity

Principle

By uniformly Spreader Coating on the Checkerboard Opacity Chart, to observe the extent of the Checkerboard is covered after the film drying, in order to evaluate the Coating ability to determine the amount of Coating required to achieve a complete coating.

Steps

1. Spreader the Coatings evenly on the Opacity Chart using the coating rod or coating applicator following the film steps 2. After the film is fully dried by air, use the instrument for objective evaluation 3. The hiding power value can be measured within 1 second and automatically displayed

Notice

• Spreader evenly • The film needs to be fully dried before evaluation • Use the appropriate Spreader tool to operate

Dimensions
200*125mm
Color style
Checkerboard
Type
Including sealed
Encasement specifications
200 sheets/pack

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
