Overview

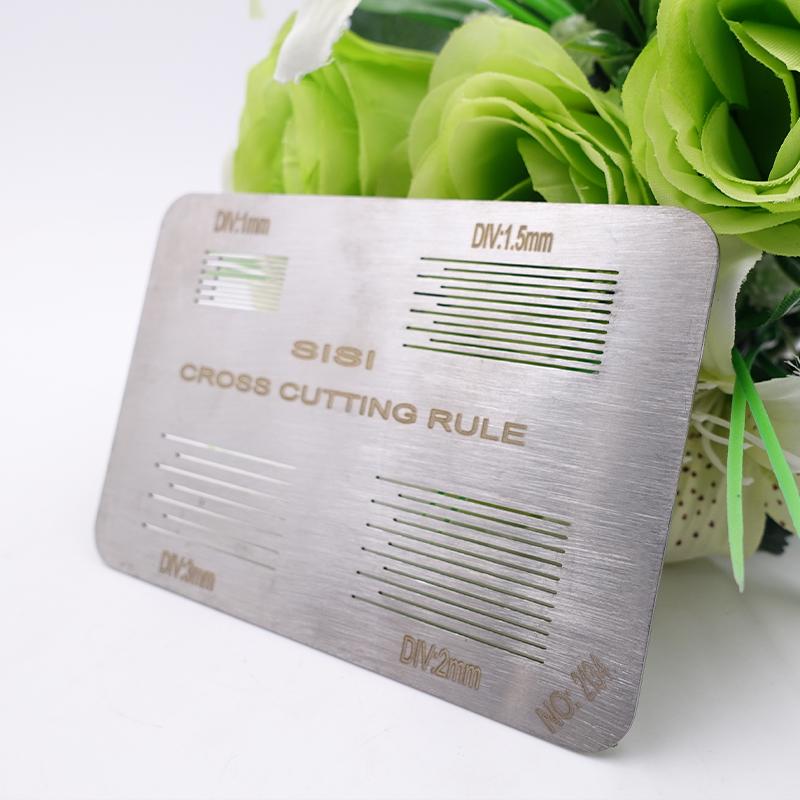

JINGKELIAN SISI adhesion hundred grid board is mainly suitable for the determination of organic coatings cross-cut adhesion. Not only suitable for laboratories, but also for construction sites under various conditions.
Features

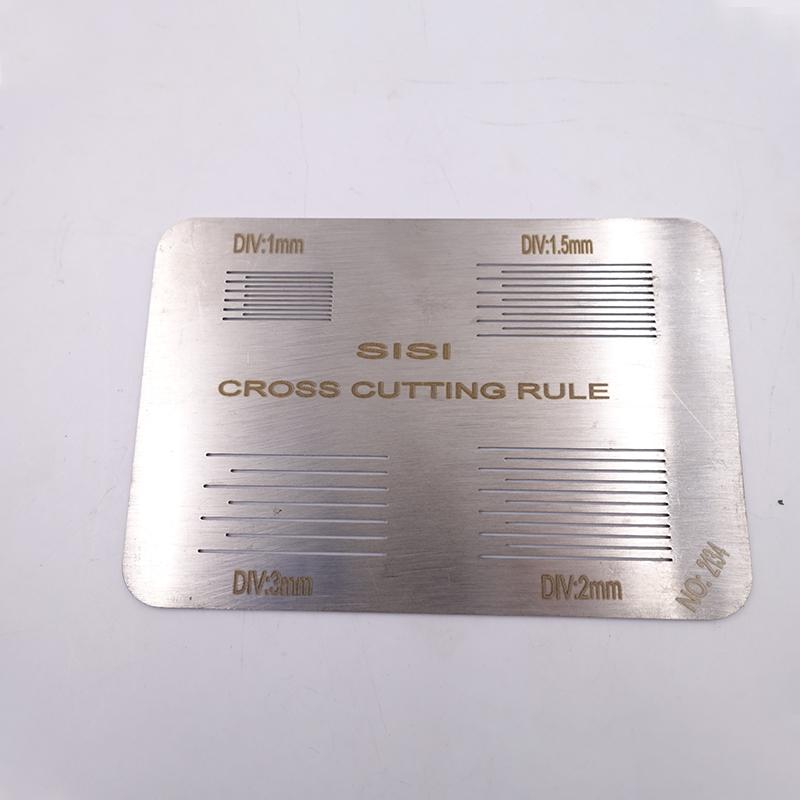

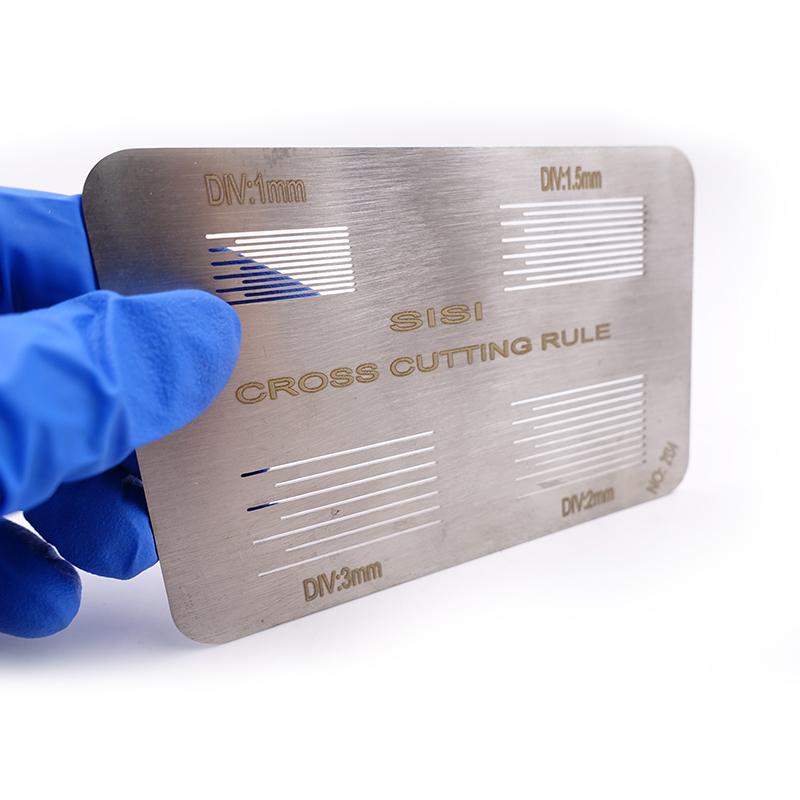

1. Various knife tooth spacings, providing 1mm, 1.5mm, 2mm, 3mm options
2. Made of stainless steel, Durable and Exquisite Appearance
3. Cut mark length 35mm, the number of teeth 11 teeth to ensure Test accuracy
4. Portable design, gross weight only 1KG, packing size 250 * 190 * 110mm, easy to use on site
Principle
JINGKELIAN SISI adhesion hundred grid board with a certain specification of the tool, the coating to do grid pattern cutting and penetration, cross-cut graphics according to six classification, evaluation of the coating from the substrate separation adhesion effect.
Applications
Determination of the adhesion of the paint film on the surface of plastic and wood furniture with a thickness of less than 250mm to the substrate, the adhesion strength of the lame plating or Eletroplating product surface fastness or the strength of the combination of the undercoat
Standards
BS3962-6、GB4893.4-85
Steps
1. Use a tool to cut the coating into a lattice pattern and penetrate the substrate
2. Evaluate the adhesion effect of coatings separated from the substrate according to the six-level classification
Notice
• Only for coatings with film thickness less than 250mm
• Make sure the tool cuts through to the bottom material for accurate results
• Post-use cleaning tools to maintain accuracy
