Overview

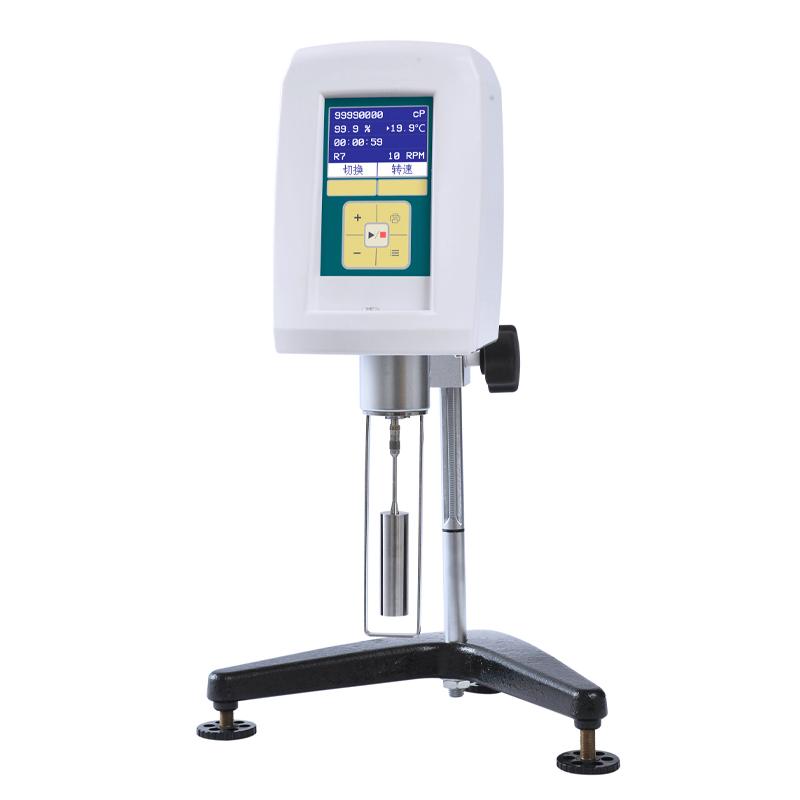

FANGRUI instrument HADV-2T digital display rotational viscometer uses touch screen technology to achieve fast, accurate and convenient viscosity measurement. The product is equipped with a 5-inch color Touchscreen, built-in 30 test programs, supports a variety of parameter display, and far exceeds the traditional LCD Viscometer.
Features
1. Using ARM technology and Linux system, Operating interface is simple, supporting test program creation and Data analysis
2. Automatic calibration of each range by computer, high accuracy and small error
3. Display rich content, including viscosity, temperature, shear rate, shear stress and other parameters
4. Fully functional, support RS232 interface to connect to computer, timing measurement, Data storage and printing
5. Front level, intuitive and convenient level adjustment
6. Stepless speed regulation, 0.1-200 a total of 2000 kinds of Rotation speed
7. Linear dispersion of shear rate to viscosity
8. Optional Pt100 temperature sensor, temperature range -20 to 300 ℃, accuracy 0.1 ℃
9. Optional accessories, including constant temperature bath, thermostatic cup, printer, etc
10. Support Chinese and English Operating system
Principle
The rotational viscometer measures sample viscosity by stepless speed control of the rotor swirl/spin in the range of 0.1-200 rpm. The built-in computer system Automatic calibration range, real-time display of viscosity Linear dispersion and related parameters, support Data storage and transmission.
Applications
Paints, Coatings, Cosmetics, Inks, Pulp, Food, Oil, Starch, Solvent Adhesives, Emulsions, Biochemical Products, Asphalt, Paraffin, Hot-melt adhesives
Steps
1. Adjust the instrument level through the front level
2. Select or create a test program
Step 3 Install the right rotor
4. Rotation speed and Measurement parameters
5. Start measurement and observe real-time data
6. Save or print measurement results
Notice
• Make sure the instrument is placed horizontally before use
• Choose the right rotor and Rotation speed combination
• The measurement of kinematic viscosity requires first entering the sample density
• Optional temperature sensor for temperature measurement
• Data printing requires the purchase of a printer
• Optional thermostatic components for thermostatic measurement
