Overview

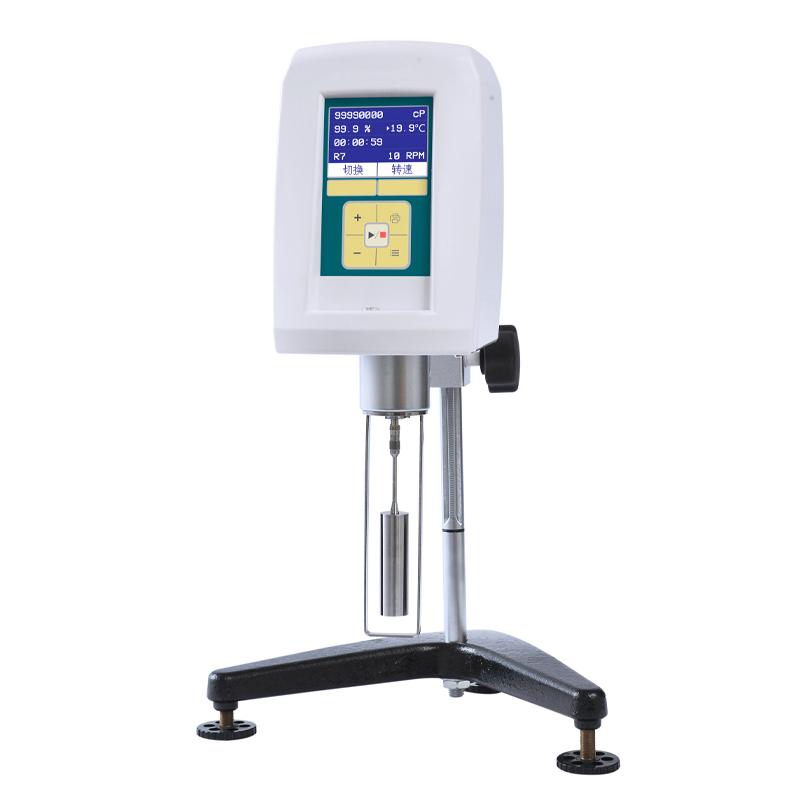

The FANGRUI instrument HBDV-2T Rotational Viscometer uses touch screen technology for fast, accurate and convenient viscosity measurement. This powerful product is equipped with a 5-inch large color Touchscreen and 30 self-built test programs, which can fully display various parameters and working conditions.
Features
1. Adopt ARM technology, built-in Linux system, Operating interface is concise and clear, support test program creation and Data analysis
2. Viscosity measurement is accurate, each range is automatically calibrated by computer, high accuracy, small error
3. The display content is rich, including viscosity, temperature, shear rate, shear stress and other parameters
4. Fully functional, support RS232C interface to connect to the computer, can be timed measurement, access data, real-time display viscosity Linear dispersion, etc
5. Front level, intuitive and convenient level adjustment
6. Stepless speed regulation, 0.1-200, a total of 2000 kinds of Rotation speed
7. Linear dispersion of shear rate to viscosity and time to viscosity can be displayed
8. Optional Pt100 temperature sensor, temperature range -20 to 300 ℃, accuracy 0.1 ℃
9. Optional accessories, including constant temperature bath, thermostatic cup, printer, etc
10. Support Chinese and English Operating system
Principle
The rotational viscometer determines the viscosity value by measuring the resistance of the sample to the rotor by swirling/spinning the rotor in the sample. Using stepless speed regulation technology, the Rotation speed can be precisely controlled in the range of 0.1-200 rpm, and the viscosity is calculated by measuring shear stress and shear rate.
Applications
Paints, Coatings, Cosmetics, Inks, Pulp, Food, Oil, Starch, Solvent Adhesives, Emulsions, Biochemical Products, Asphalt, Paraffin, Hot-melt adhesives
Steps
1. Adjust the instrument level through the front level
2. Select the appropriate rotor and install it
3. Set up test procedures or parameters
4. Place the sample in the measurement container
5. Start the measurement, the instrument automatically scans and recommends the appropriate rotor and Rotation speed combination
6. Real-time observation of viscosity Linear dispersion and measurement data
7. Save or print measurement results
Notice
• Make sure the instrument is placed horizontally before use
• Choose the right rotor and Rotation speed combination
• Sample density is required for measurement of kinematic viscosity
• Temperature measurement requires optional temperature sensor
• Data printing requires the purchase of a printer
• Optional thermostatic components are required for thermostatic measurement
• Periodically calibrated for Measurement accuracy
