Overview

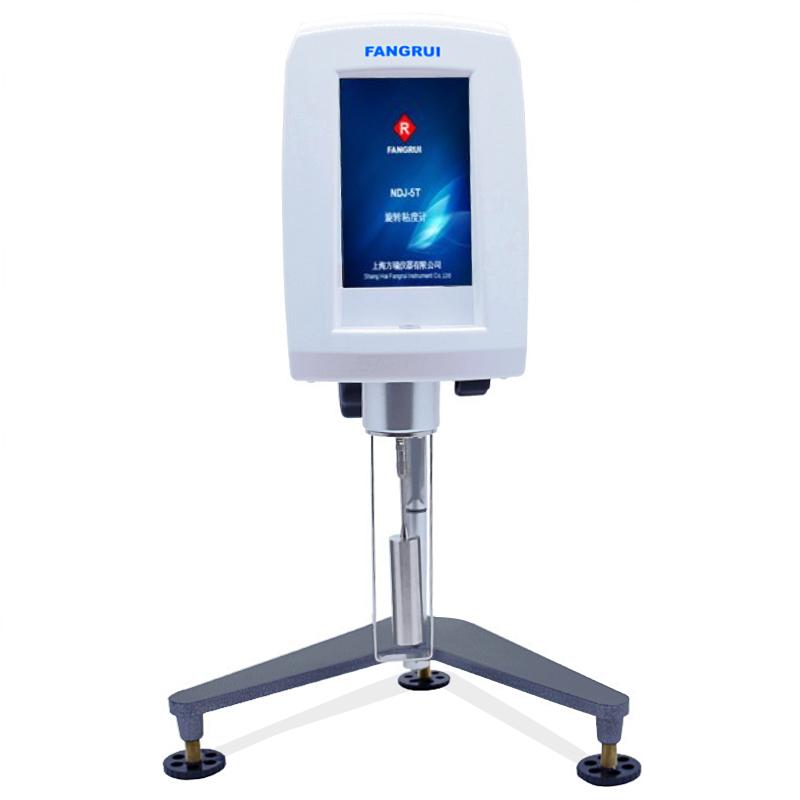

NDJ-5T Touchscreen digital rotational viscometer uses touch screen technology to measure viscosity quickly, accurately and conveniently. It is equipped with a 5-inch large color Touchscreen, which can fully display parameters and working conditions. It has the advantages of many Measurement parameters, rich display content, convenient operation, intuitive reading, high accuracy, stable Rotation speed, strong anti-interference, and wide Operating voltage. It can measure the absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids, completely replacing the same type of imported instruments.
Features
1. Adopt ARM technology, built-in Linux system, Operating interface is concise and clear, support test program creation and Data analysis;
2. Viscosity measurement is accurate, each range with computer Automatic calibration, high accuracy, small error;
3. Rich display content, including viscosity, temperature, Measured value percentage graphics, range overflow alarm, automatic scanning, maximum Measurement range, date, time, etc., and can display kinematic viscosity;
4. Fully functional, supports timing measurement, self-built 30 sets of test programs, access to 30 sets of data, real-time display of viscosity Linear dispersion, print data and Linear dispersion;
5. Front level, level adjustment is intuitive and convenient;
6. Optional temperature sensor, constant temperature bath, thermostatic cup, printer, standard viscosity sample, etc.;
7. Operating system in Chinese and English.
Principle
The NDJ-5T digital rotational viscometer determines viscosity by measuring the resistance of the liquid to the rotor by rotating the swirl/spin rotor in the liquid. It can determine the absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids, process the data quickly using touch screen technology, and supports automatic scanning to recommend the appropriate rotor and Rotation speed combination.
Applications
Paints, Coatings, Cosmetics, Inks, Pulp, Food, Oil, Starch, Solvent Adhesives, Emulsions, Biochemical Products, Asphalt, Paraffin, Hot-melt adhesives
Steps
1. Create or select a test program.
2. Install the appropriate rotor and adjust the level.
3. Rotation speed and parameters;
4. Start measurement, real-time observation of viscosity Linear dispersion;
5. Save or print the data.
Notice
Make sure the instrument is placed horizontally before use.
• Select the appropriate rotor and Rotation speed according to the sample characteristics;
• Regularly calibrate instruments to ensure accuracy;
• Optional Accessories require additional purchase;
• Avoid use in strong interference environments.
