Overview

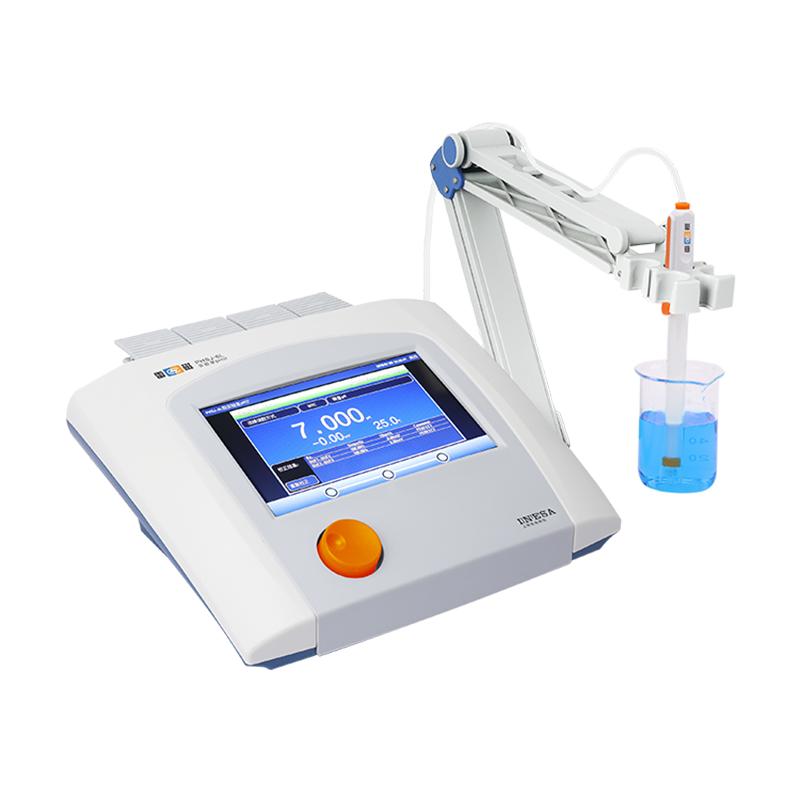

LEICI PHSJ-6L pH meter is a laboratory-specific smart acid alkalinity detector. It realizes Electrode, User, Safety, Calibrate, Interface Multi-purpose Management functions through intelligent Operating system, and has super data management functions. The instrument has a measurement resolution of 0.001pH, Measurement range is -2pH~ 20pH, and supports two temperature Display modes of Celsius and Fahrenheit.
Features

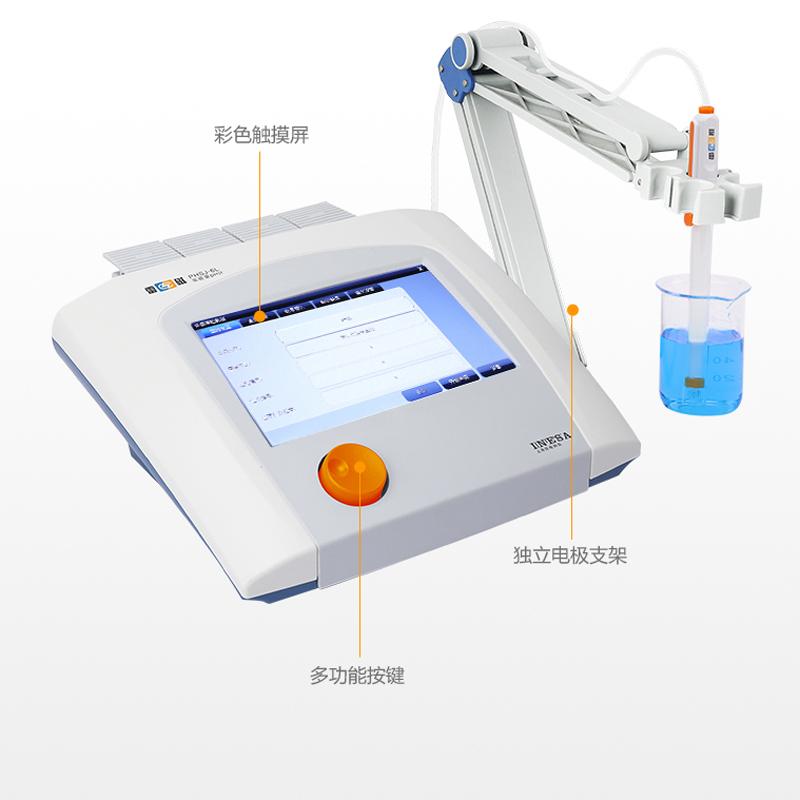

1.7-Inch Color Touchscreen, Navigation Operation
2. Intelligent Operating system, with method management, Electrode management, calibrating management, data management and user management functions
3. Support Electrode management, up to 5 pH Electrodes can be managed, and each Electrode can keep 20 sets of calibration records
4. 3 reading modes: Smart-Read, Timed-Read, and Cont-Read
5. Automatically identify 25 kinds of buffer solutions such as GB, DIN, NIST, etc., and support automatic 1-6 point calibrating
6. Supports storage of up to 100 Measuring methods and 1000 measurement results

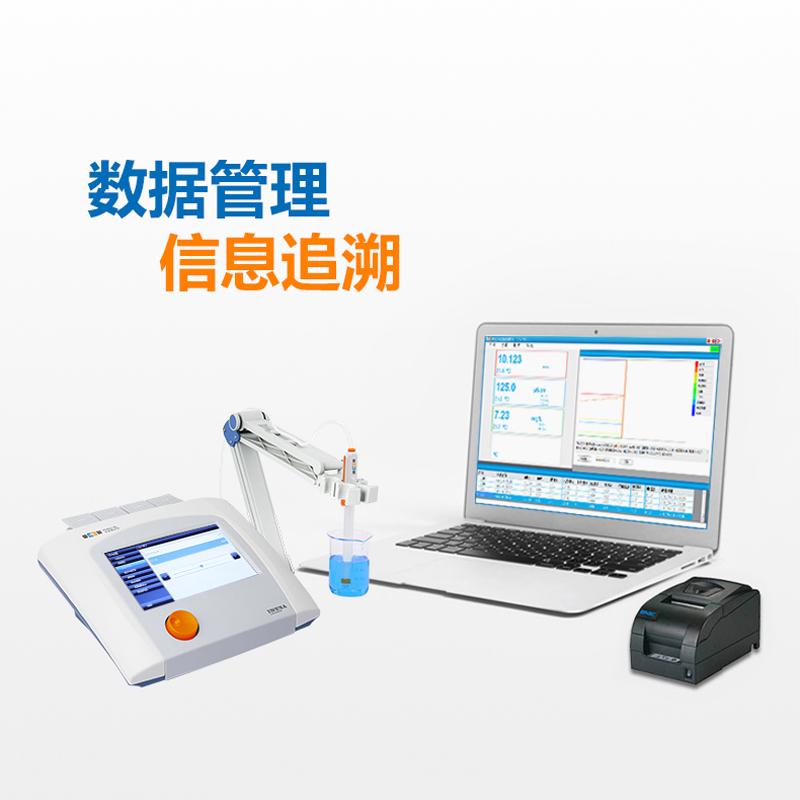

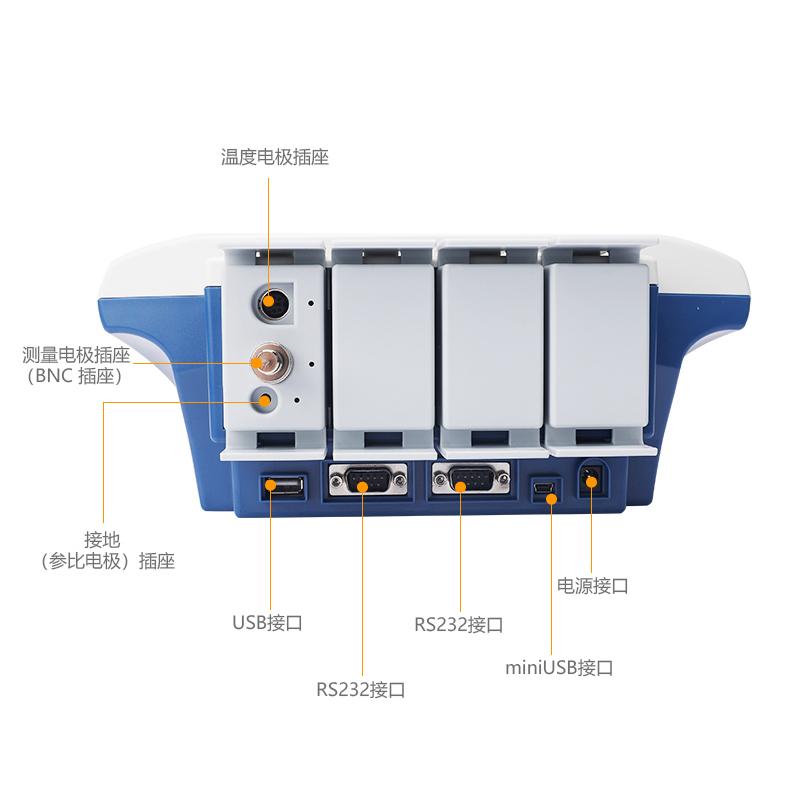

7. Support USB, RS232 connection to PC, serial printer
8. Support Chinese and English languages, support firmware upgrade and U disk hot swap
Principle
Operating system to achieve accurate measurement of alkalinity, using a variety of reading modes and Automatic calibration function to ensure the accuracy of measurement results. Electrode detects sample pH values and supports manual/automatic temperature compensation for more accurate measurement data.
Standards
GLP specification
Steps
1. Power on and select Measurement mode
2. Electrode calibrating (Support 1-6 point Automatic calibration)
3. Select the reading mode (Smart-Read, Timed-Read, or Cont-Read)
4. Conduct sample measurements
5. View, store or output measurement results
Notice
• Electrode calibrated before use
• Pay attention to temperature compensation settings
• Regular Maintenance and Cleaning of Electrodes
• Ensure proper operation when connecting devices
• Data management according to GLP standards
