Overview

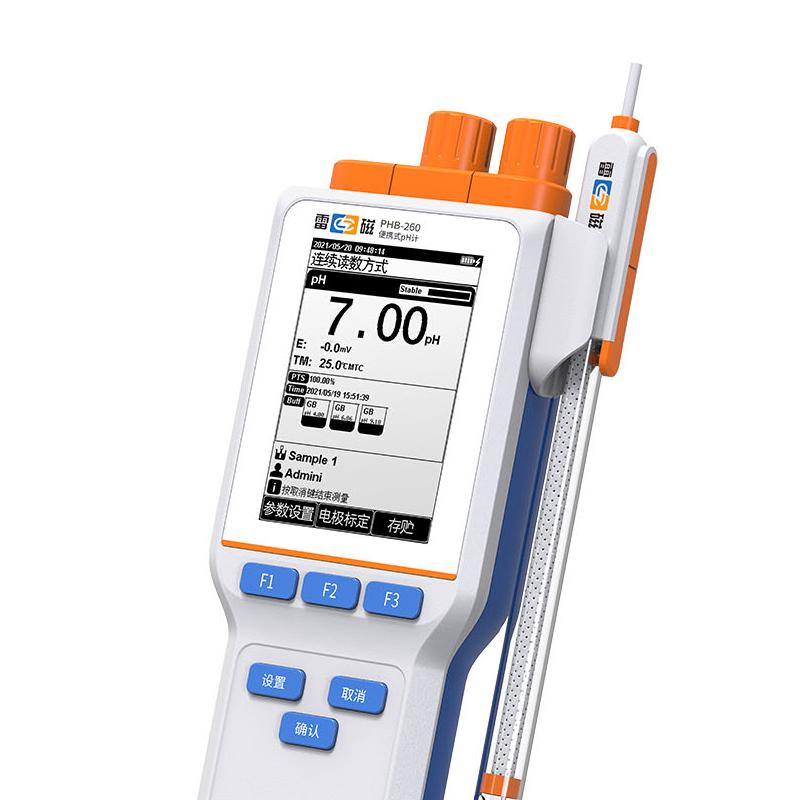

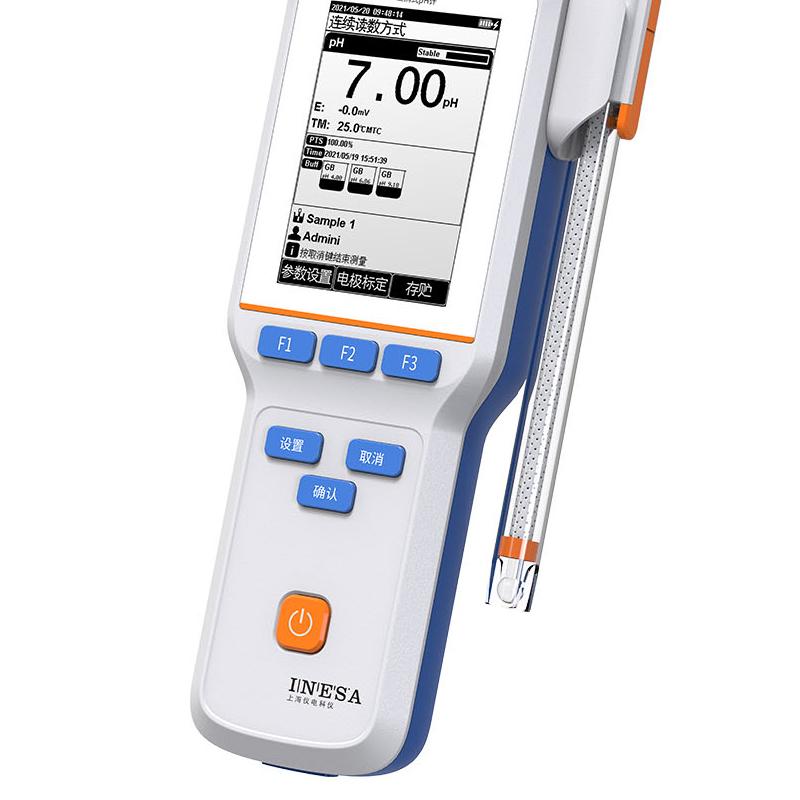

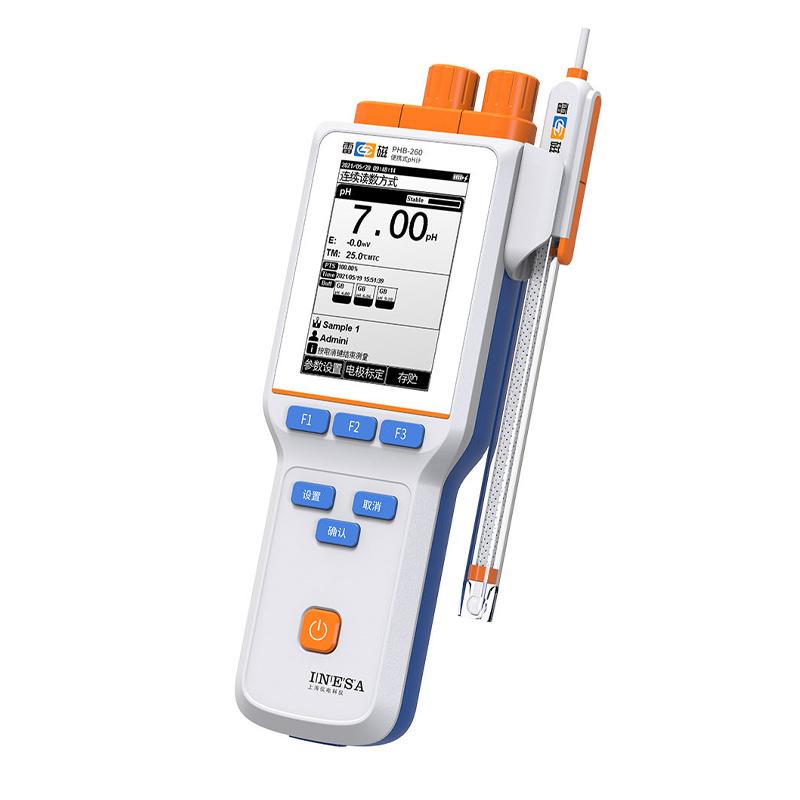

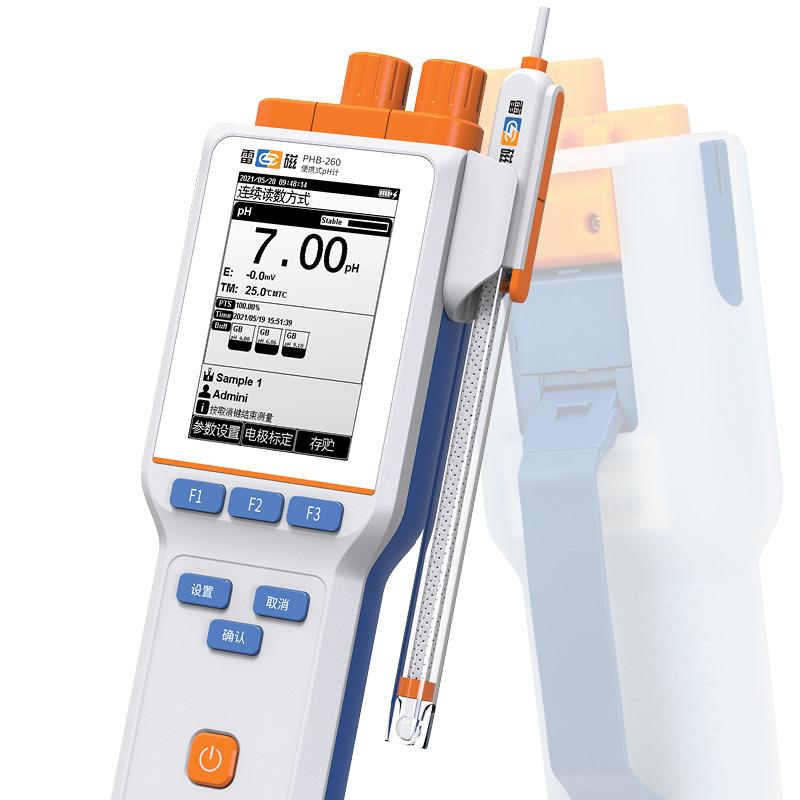

The LEICI PHBJ-260 is a High Accuracy Portable pH meter with a high definition LCD screen display that supports pH and mV measurement, with intelligent detection, data management and power management capabilities. Measurement ranges from -2.00 to 20.00, mV from -2000.0 to 2000.0, and is suitable for acid alkalinity detection in a variety of environments.
Features
1.High definition LCD screen, clear display.
2.Optional resolution: pH support 0.01pH and 0.1pH, mV support 0.1mV and 1mV.
3. Temperature units are available: ° C and ° F.
4. Support boot self-diagnosis, automatic shutdown, power-off protection and factory reset.
5. Support firmware upgrade, allowing for feature expansion and personalized requirements.
IP65 Protection Ratings.

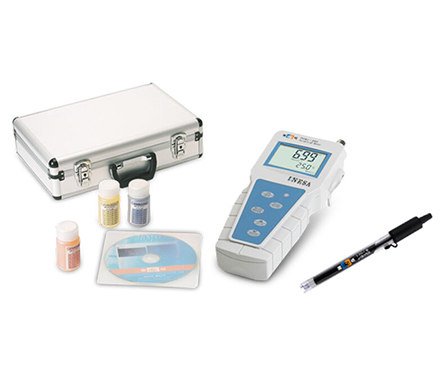

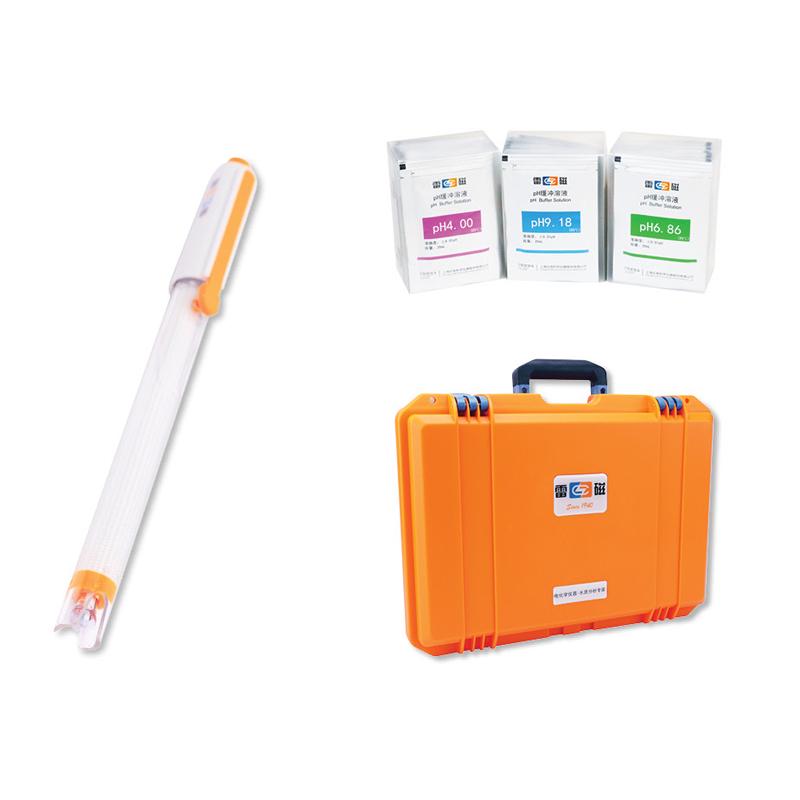

7. Standard triple compound pH Electrode, Electrode hanger, silicone protective cover, wristband, Portable suitcase, calibrated buffer solution.
8. Intelligent determination of endpoints, support automatic readings, timed readings, timed interval readings, and manual readings.
9. Support automatic/manual temperature compensation.
10. Support 1-5 point pH Electrode calibration.
11. Automatically identify three groups of standard buffer solutions such as GB, DIN, and NIST, and support standard solution group management and custom pH buffer solutions.
12. Data storage (500 sets), access, deletion, transmission and printing are supported.
13. Comply with GLP to achieve data traceability.
14. Support connecting standard RS-232 serial printer to print measurement results, and the printing format is optional.
15. With a USB interface, it can be connected to a PC through dedicated communication software to achieve data transmission.
16. Powered by a large-capacity lithium battery, it supports charging by connecting a PC and a mobile power supply.
17. With battery undervoltage reminder function and charging status reminder function.
18. Support backlight adjustment.
Principle
The PHBJ-260 pH meter detects the concentration of hydrogen ions in the solution through triple complex pH Electrode, which is converted into an electrical signal for measurement. The instrument uses intelligent algorithms to automatically determine the measurement endpoint, supports multiple reading modes, and ensures measurement accuracy through temperature compensation. Data can be transferred to a PC via USB interface for management and traceability.
Applications
Water quality testing, laboratory analysis, industrial process control, environment monitoring, education and research
Steps
1. Turn on the self-test to ensure that the instrument is normal.
2. Select Measurement mode (pH or mV) and resolution.
3. Carry out pH Electrode calibration, support 1-5 point calibration, and automatically identify the standard buffer solution.
4. Immerse Electrode in the solution to be tested and select the reading method (automatic, timed, manual).
5. Read and record measurement data.
6. Use data management capabilities to store, access, or transfer data.
7. Optionally connect the printer to print the result.
8. Clean Electrode after use, shut down or automatically shut down.
Notice
• Electrode in good condition before use to avoid damage.
• Use a standard buffer solution during calibration to ensure accuracy.
• Pay attention to the temperature compensation setting when measuring.
• Regularly check the battery power to avoid undervoltage affecting use.
• Keep instrument drying to IP65 Protection Rating.
• Use dedicated communication software for data transmission.
When storing data, pay attention to the capacity limit (500 sets).
• Avoid use in extreme temperature environments.
• Use standard accessories to ensure compatibility.
