Overview

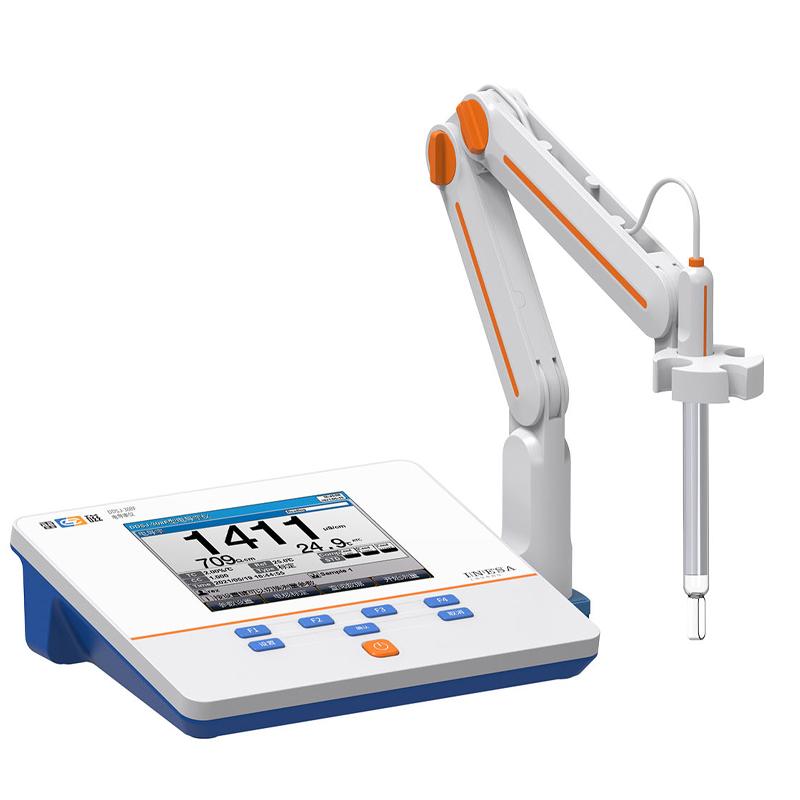

DDSJ-308F Conductivity Meter is a newly designed laboratory product that can measure conductivity, TDS, salinity, resistivity and other parameters. The instrument is widely used in universities, environmental protection, food, geological prospecting, metallurgy, marine exploration and other fields. It is suitable for measurement work in industrial wastewater, surface water, drinking water, beverages, daily chemical products, Spinning & weaving products and other industries. With different constants of Conductivity detector Electrode, it can also be used for measurement of conductivity of electronic semiconductors, nuclear energy industry and power plants pure or ultrapure water.
Features

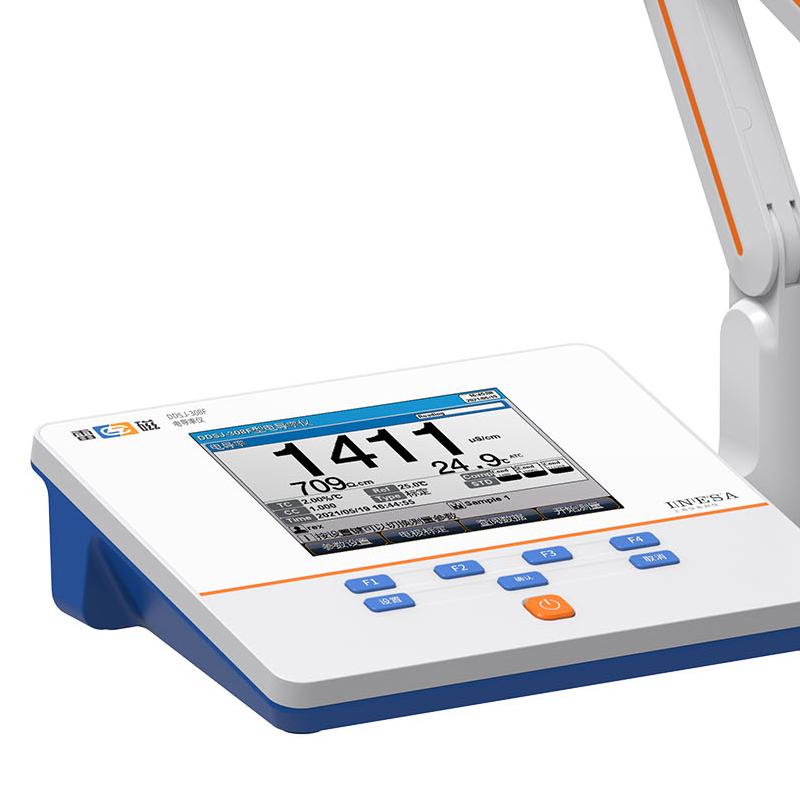

1. Color high definition LCD screen, clear display
2. Temperature units available: ° C and ° F
3. Reference temperature 20 ° C or 25 ° C optional
4. Support functions such as boot self-diagnosis, automatic shutdown, power-off protection and factory reset
5. Support firmware upgrade function, allowing function expansion and personalized requirements
6. Support IP54 Protection Ratings

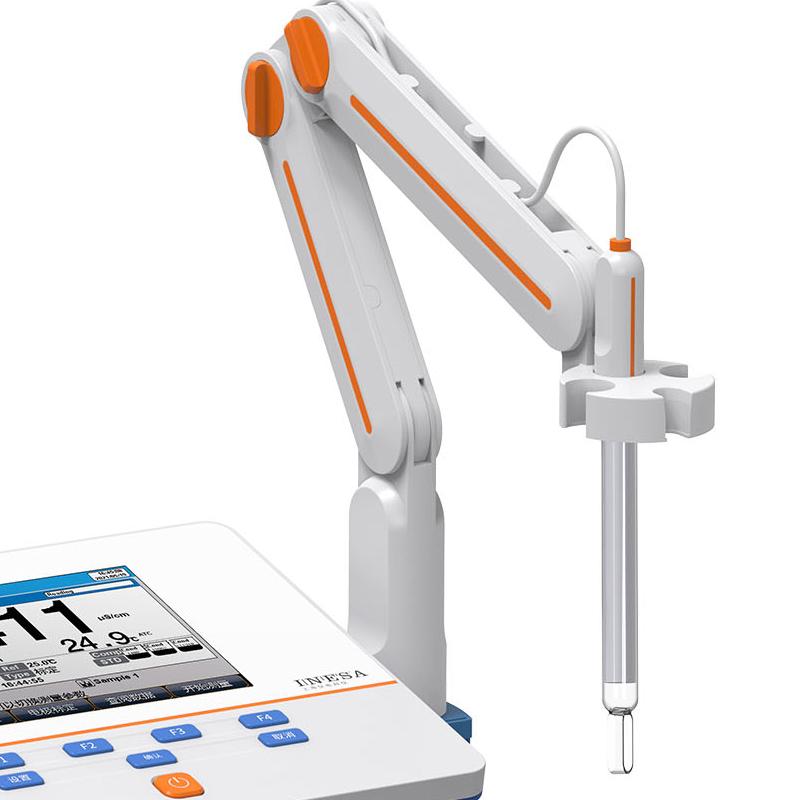

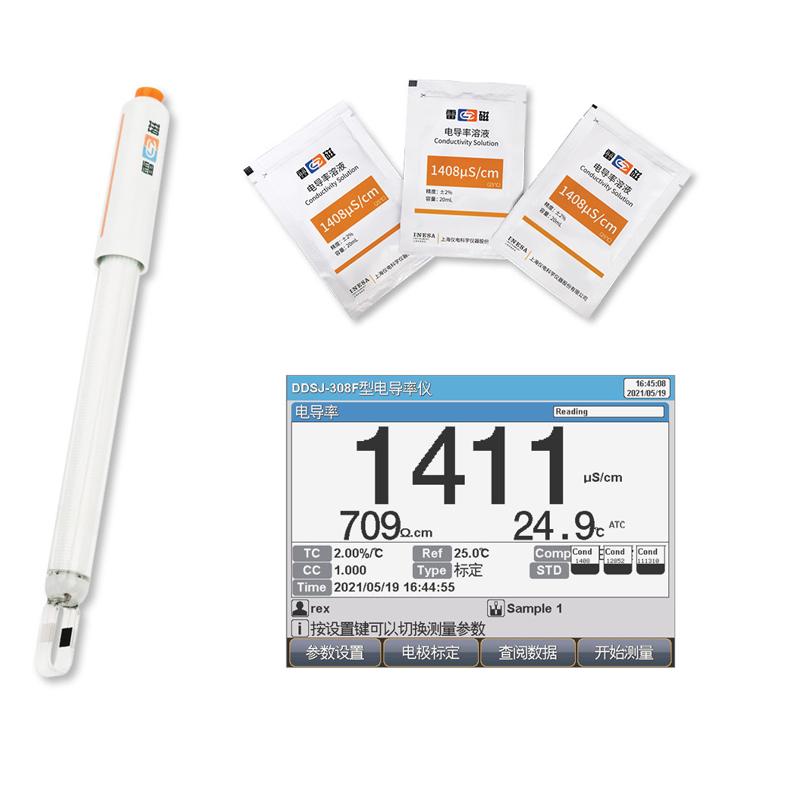

7. Standard Composite Conductivity detector Electrode, Electrode bracket, dust cover and calibrated solution
8. Intelligent determination of endpoints, support automatic readings, timed readings, timed interval readings, manual readings
9. Support automatic/manual temperature compensation
10. Automatically identify 4 GB Conductivity detector standard solutions, support 1-3 point Conductivity detector Electrode calibration
11. Support non-compensation, linear, pure water compensation and other conductivity compensation methods
12. Support Automatic Frequency Switching, with 1.0 Constant Electrode covering full scale measurement
13. Data storage (500 sets each), access, delete, transfer and print
14. Compliant with GLP for data traceability
15. With RS-232 interface, support for connecting standard RS-232 serial printers
16. With USB interface, it is connected to the PC through dedicated communication software to achieve data transmission
Principle
DDSJ-308F Conductivity Meter uses Conductivity detector Electrode measurement solution Conductivity detector characteristics, using automatic Frequency Switching technology to ensure Measurement accuracy. The instrument supports a variety of compensation methods, including temperature compensation and conductivity compensation, and automatically recognizes the standard solution and determines the measurement endpoint through intelligent algorithms to ensure the accuracy and Reliability of measurement results.
Applications
Universities, environmental protection, food, geological prospecting, metallurgy, marine exploration, industrial wastewater, surface water, drinking water, beverages, daily chemical products, Spinning & weaving products, electronic semiconductors, nuclear energy industry, power plants
Steps
1. Power-on self-diagnosis
2. Measurement parameters (conductivity, TDS, salinity or resistivity)
3. Select the temperature unit and reference temperature as required
4. Conductivity detector Electrode calibration (1-3 points)
5. Select the reading method (automatic reading, timed reading, timed interval reading, or manual reading)
6. Select the temperature compensation method (automatic or manual)
7. Select the conductivity compensation method (no compensation, linear or pure water compensation)
8. Carry out measurements
9. Data storage, access, deletion, transmission or printing
Notice
• For samples below 20μS/cm, it is recommended to use 0.1 constant or 0.01 constant Conductivity detector Electrode measurement
• Use ambient temperature range 0-40 ℃
• Operating Environment relative humidity not more than 85%
• Instrument power supply is dedicated Power Adapter (input: AC100~ 240V output: DC9V)
• The instrument level is 0.5, and attention should be paid to the Measurement accuracy requirements when using it
• The matching 1.0 constant Electrode can cover the full range of measurement, but the appropriate Electrode constant needs to be selected according to the characteristics of the sample
• Support firmware upgrade, can be extended as needed
