Overview

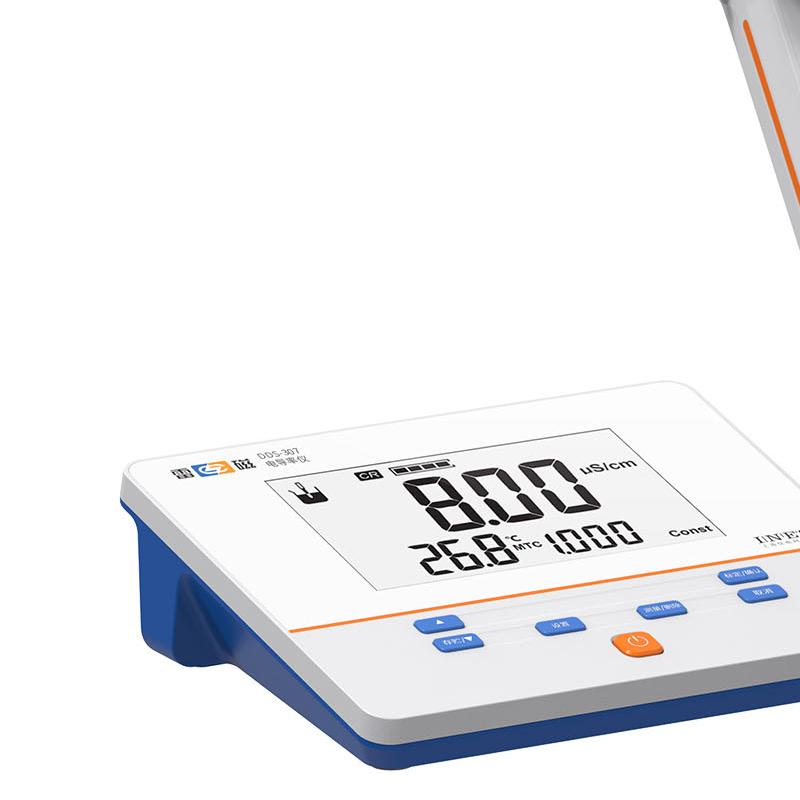

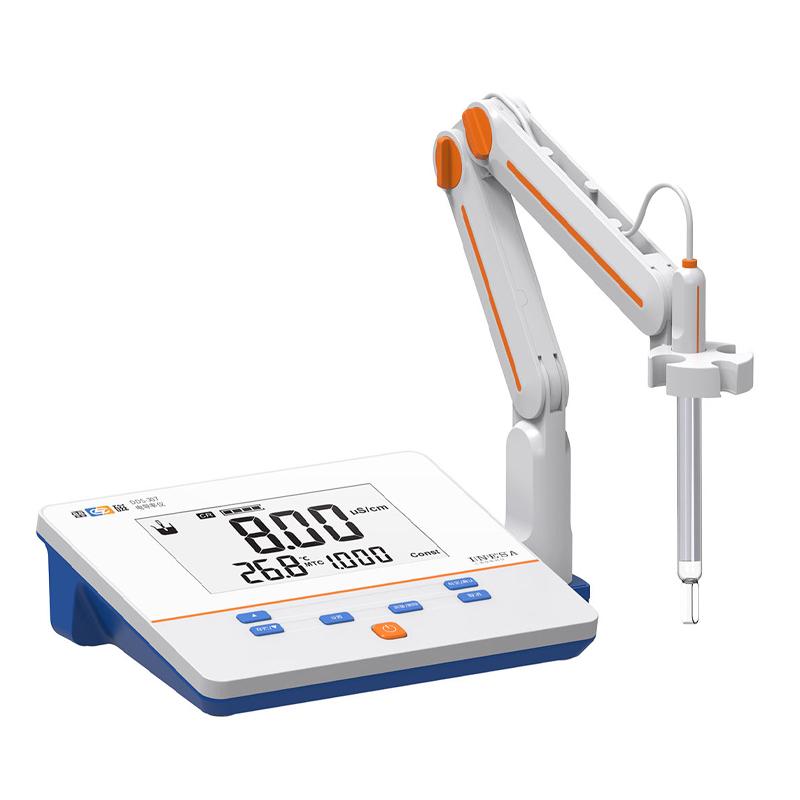

The LEICI DDS-307 Conductivity Meter is a 1.0-level accuracy instrument with a Measurement range from 0.00 μS/cm to 200mS/cm, using a high definition LCD display and key operation. The instrument has functions such as automatic shutdown, power failure protection, factory reset, and meets IP54 protection class standards.
Features
1.High definition LCD display, key operation
2. Support functions such as automatic shutdown, power failure protection and factory reset
3. Support IP54 Protection Ratings

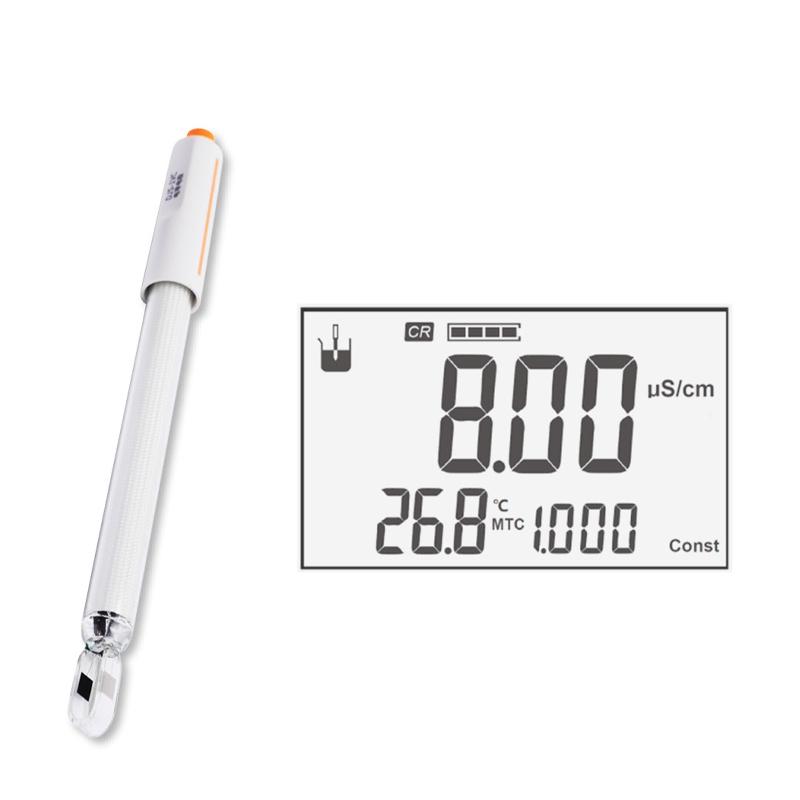

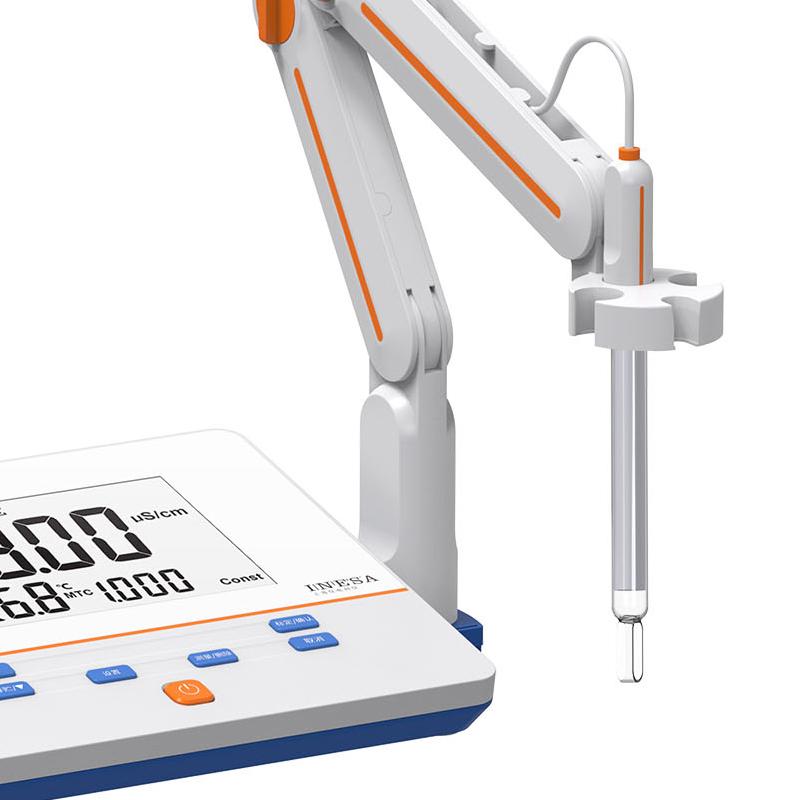

4. Standard Conductivity detector Electrode, Electrode bracket, dust cover
5. Intelligent determination of endpoints, support equilibrated Measurement mode and Continuous Measurement mode
6. Support manual temperature compensation
7. Automatically identify 4 GB Conductivity detector standard solutions, support 1 point Conductivity detector Electrode calibration
8. Support Automatic Frequency Switching, with 1.0 Constant Electrode covering full scale measurement
9. Support Data storage (50 sets), access, delete
Principle
Conductivity detector Electrode measurement solution conductivity, Automatic Frequency Switching technology to ensure Measurement accuracy, and support manual temperature compensation to correct the effect of temperature on conductivity. The intelligence system automatically determines the measurement end point, providing equilibrated and continuous two Measurement modes.
Steps
1. Connect the Power Adapter and turn it on
2. Select equilibrated Measurement mode or Continuous Measurement mode as needed
3. Use manual temperature compensation function for temperature correction
4. Automatic Identification of Standard Solutions and Electrode Calibration
5. Start measurement and read data
6. Data storage, access and deletion
Notice
• Ensure that the input voltage of the Power Adapter is within the range of AC100~ 240V before use
• The instrument supports automatic shutdown function, pay attention to saving unstored data
• Electrode should be properly stored in the dust cover after use
• Electrode calibration requires standard GB Conductivity detector solution
• 50 sets of data storage capacity, timely management to avoid overflow
