Overview

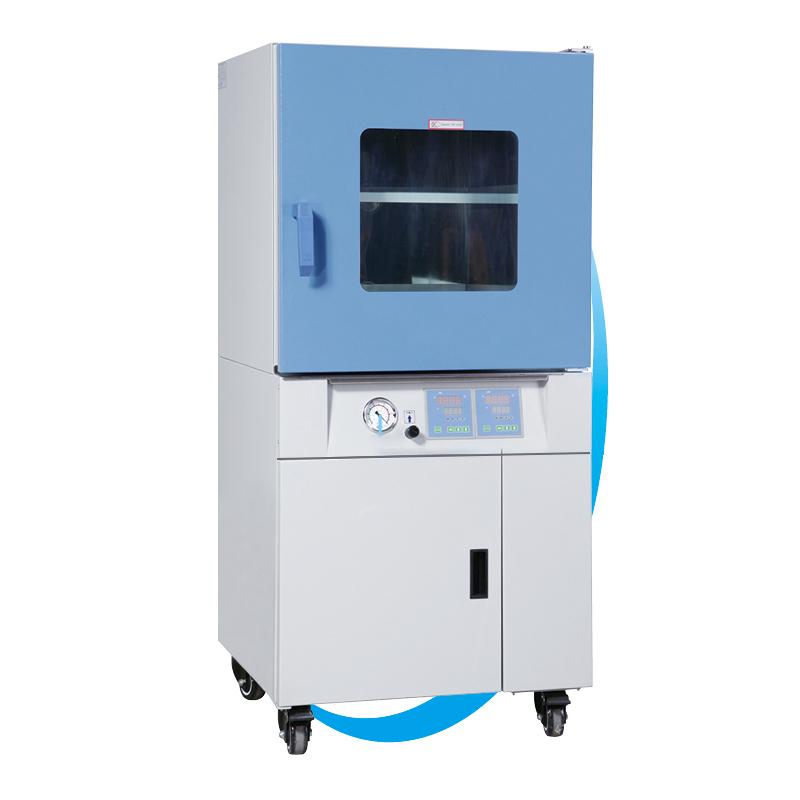

YIHENG BPZ-6063 Vacuum oven is suitable for heat treatment in vacuum state such as defoaming, dehydrating, hardening and drying after washing in the production process of electronic products. It is widely used in vacuum drying treatment of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic product production processes.
Features
1. The studio is made of stainless steel plate to ensure that the product is durable and easy to clean.
2. The rectangular vacuum chamber makes the effective volume utilization rate high and can make full use of space.
3. Resilience Double-decked Tempered Glass Door Observation of indoor objects at a glance.
4. The box door is closed and elastic and adjustable, and the integrally formed synthetic silicone rubber door sealing ring ensures a high Vacuum Level in the box.
5. Add an over-temperature protection temperature control port to effectively prevent safety problems such as temperature runaway. (optional)
6. Low noise professional vacuum pump, stable and reliable vacuum control. (With "B" is a high-quality brand vacuum pump)
7. Program control operation, heating, vacuum holding and nitrogen holding time can be set according to process requirements to ensure the stoving conformity of each batch and reduce the stoving difference of the product as much as possible. (optional)
Principle
Vacuum oven heat treatment in a vacuum state, through the control of temperature, Vacuum Level and time, to achieve electronic products defoaming, dehydrating, hardening and other processes.
Applications
Vacuum drying treatment for the production process of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic products
Steps
1. Set the heating, vacuum holding and nitrogen holding time according to the process requirements (optional program control).
2. Close the box door and adjust the closing tightness to ensure sealing.
3. Start the vacuum pump and control the Vacuum Level to 133Pa.
4. Set the temperature in the range of RT + 10~ 200 ℃, and monitor the Temperature Fluctuation +/- 1 ℃.
5. Observe indoor objects through double-decked tempered Glass doors.
6. After drying, follow-up processing is required.
Notice
• The performance parameters are tested under no-load conditions: Ambient Temperature 20 ° C, Environmental humidity 50% RH.
• With "B" is a high-quality brand vacuum pump.
• BPZ series Vacuum oven with vacuum pump and drying tank.
• Over-temperature protection temperature control port is optional, pay attention to safety.
• Program control is an optional function.
• Optional exhaust oil filtrating device, it is recommended to replace it every 6 months.
• Optional parts include inert gas intake valve, liquid water Filter, drying tank, etc., increase the delivery period of the optional parts by 7 days.
