Overview

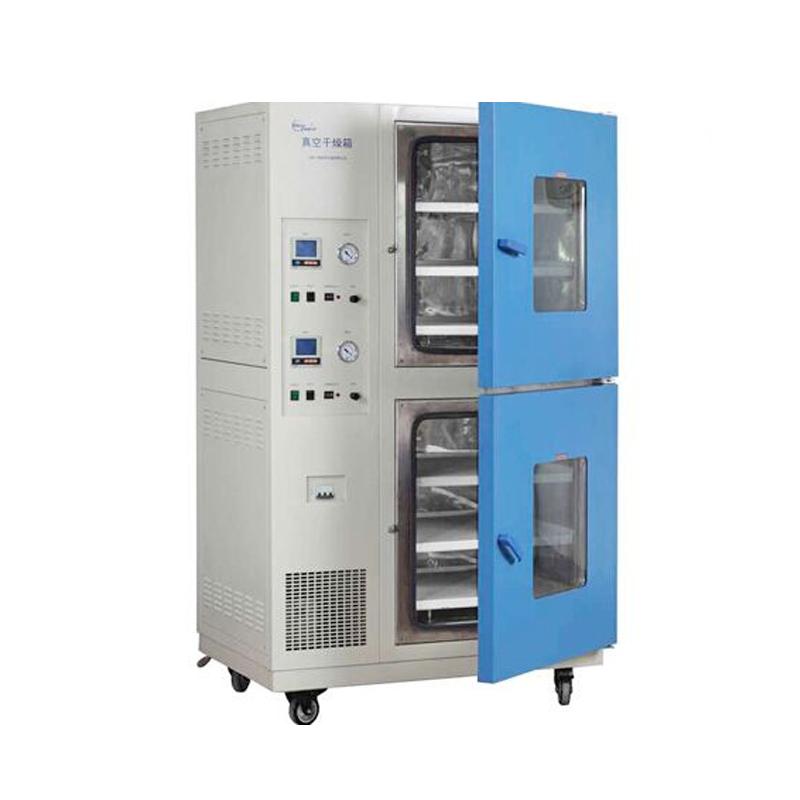

YIHENG BPZ-6210-2B Vacuum oven is suitable for heat treatment in vacuum state such as defoaming, dehydrating, hardening and drying after washing in the production process of electronic products. It is widely used in vacuum drying treatment of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic product production processes.
Features
1. The studio is made of stainless steel plate to ensure that the product is durable and easy to clean.
2. The rectangular vacuum chamber makes the effective volume utilization rate high and can make full use of space.
3. Resilience Double-decked Tempered Glass Door Observation of indoor objects at a glance.
4. The box door is closed and elastic and adjustable, and the integrally formed synthetic silicone rubber door sealing ring ensures a high Vacuum Level in the box.
5. Add an over-temperature protection temperature control port to effectively prevent safety problems such as temperature runaway. (optional)
6. Each layer of the box can be independently heated, independently vacuumed, and independently injected with nitrogen without interfering with each other. (Multi-box series)
7. Low noise imported vacuum pump, stable and reliable vacuum control. (with "B" for imported vacuum pump)
8. Program control operation, heating, vacuum holding and nitrogen holding time can be set according to process requirements to ensure the stoving conformity of each batch and reduce the stoving difference of the product as much as possible. (optional)
Principle
Vacuum oven by heating the studio in a vacuum state, using the vacuum environment to reduce the boiling point, accelerate the evaporation of water and solvents in the material, and achieve precise process control through independent vacuum and nitrogen injection functions.
Applications
Vacuum drying treatment for the production process of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic products
Notice
• With "B" for imported vacuum pump
• BPZ series Vacuum oven with vacuum pump and drying tank
• BPZ - 6210-2/2 B (two boxes) after receiving the indent, the delivery period is 25 days
• Optional exhaust oil filtrating device, it is recommended to replace it every 6 months
