Overview

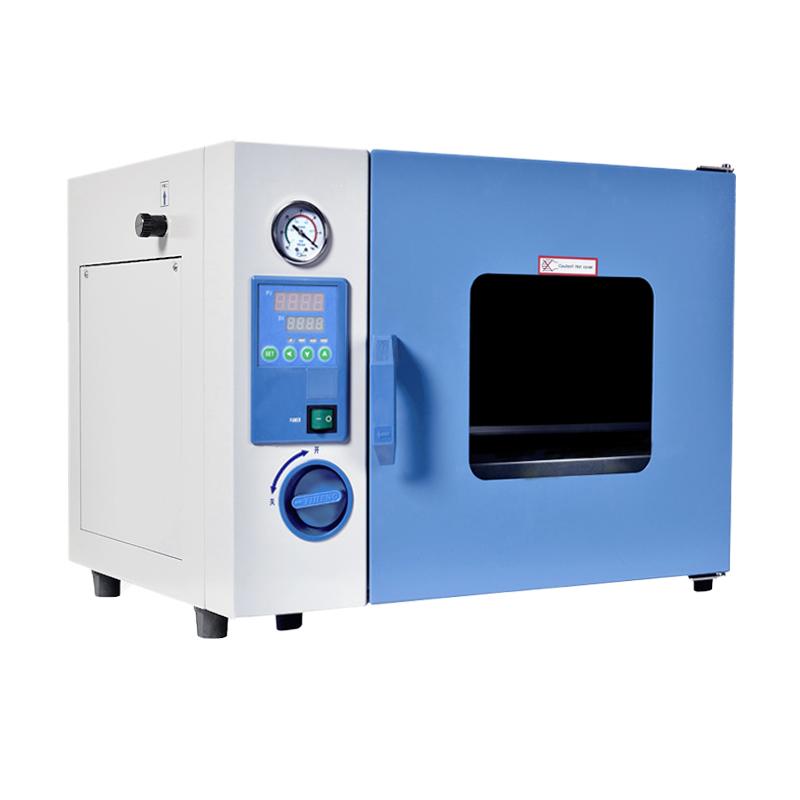

YIHENG DZF-6030A Vacuum oven is a new generation of vacuum drying equipment. It integrates the brand's many years of successful experience in box heating and overcomes the bottleneck problem in the heat conduction process through dedicated research. The equipment is specially designed for drying heat-sensitive, easy-to-analysis and easy-to-oxidation substances. It can fill the interior with inert gas and can also achieve rapid drying of complex items.
Features
1. Cuboid studio design, effective volume utilization, equipped with microcomputer temperature controller, accurate and reliable temperature control, compared with traditional Vacuum Chamber drying time reduced by more than 40%

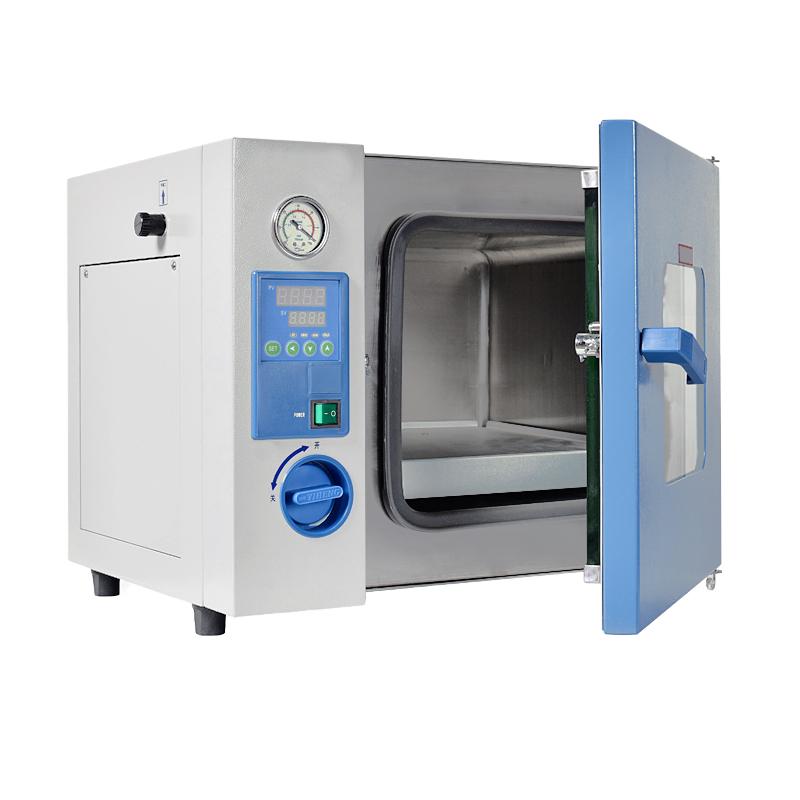

2. Adopt tempered, bulletproof double-decked Glass doors for easy observation of indoor objects and can be filled with inert gas
3. The box door is closed and elastic and adjustable, and is equipped with an integrally formed synthetic silicon door sealing ring to ensure that the box maintains a high Vacuum Level
4. The studio is made of stainless steel sheet material, which is durable and easy to clean
5. Support storage, heating, testing and drying in an environment without oxygen or filled with inert gas to effectively prevent oxidation
Principle
Vacuum oven reduces the pressure in the box by vacuuming, reduces the boiling point of water, and achieves rapid drying in combination with a precise temperature control system. It can be filled with inert gas to create an oxygen-free environment and prevent chemical reactions of heat-sensitive, easy-to-analysis and easy-to-oxidation substances during the drying process.
Applications
Heat sensitive material drying, easy analysis material treatment, easy oxidation material protection, rapid drying of complex ingredients
Steps
1. Put the items to be dried into the studio
2. Adjust the closure tightness of the box door
3. Set the microcomputer temperature controller parameters
4. Start the equipment for vacuuming operation
5. Fill with inert gas as required
Step 6 Start the drying process
7. Monitor drying status through observation window
8. Turn off the equipment according to the procedure after drying
Notice
● Working Ambient Temperature should be kept within the range of RT + 5~ 40 ℃
● Power supply voltage AC 220V 50Hz before use
● Pay attention to the vacuum gauge indication during operation to ensure that the Vacuum Level meets the requirements
When cleaning the studio, use a suitable detergent
● Pay attention to the weight when handling equipment, Net weight 37kg, gross weight 58kg
● The packing size is 750 * 630 * 690mm, and enough space should be reserved for storage
