Overview

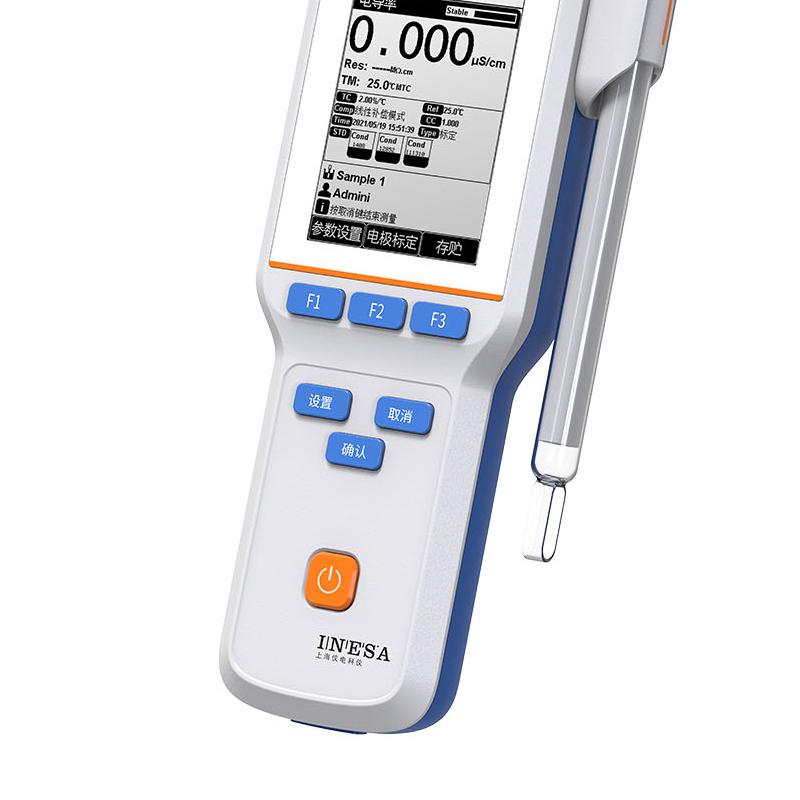

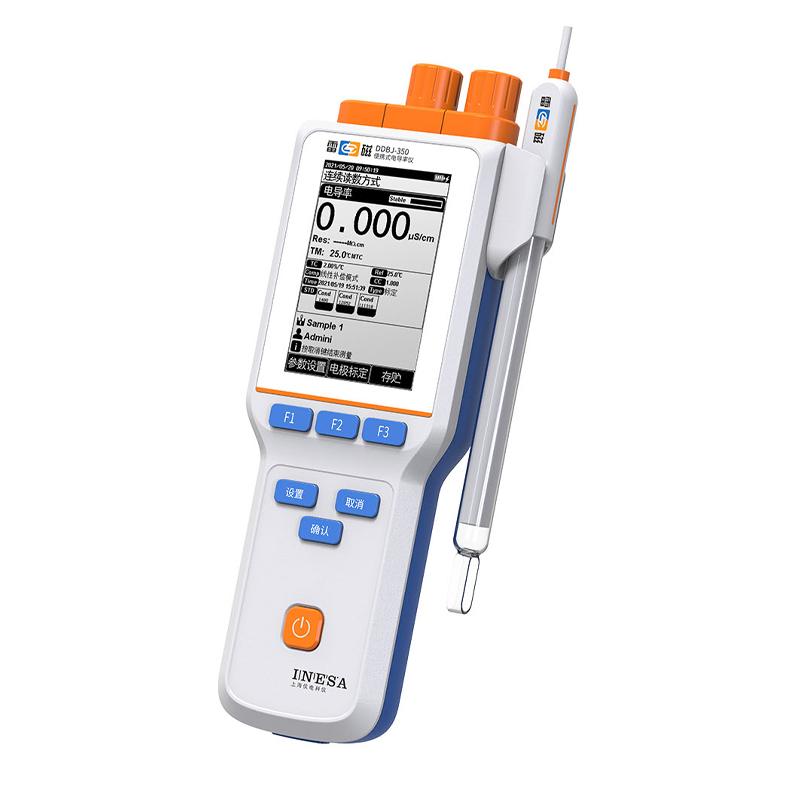

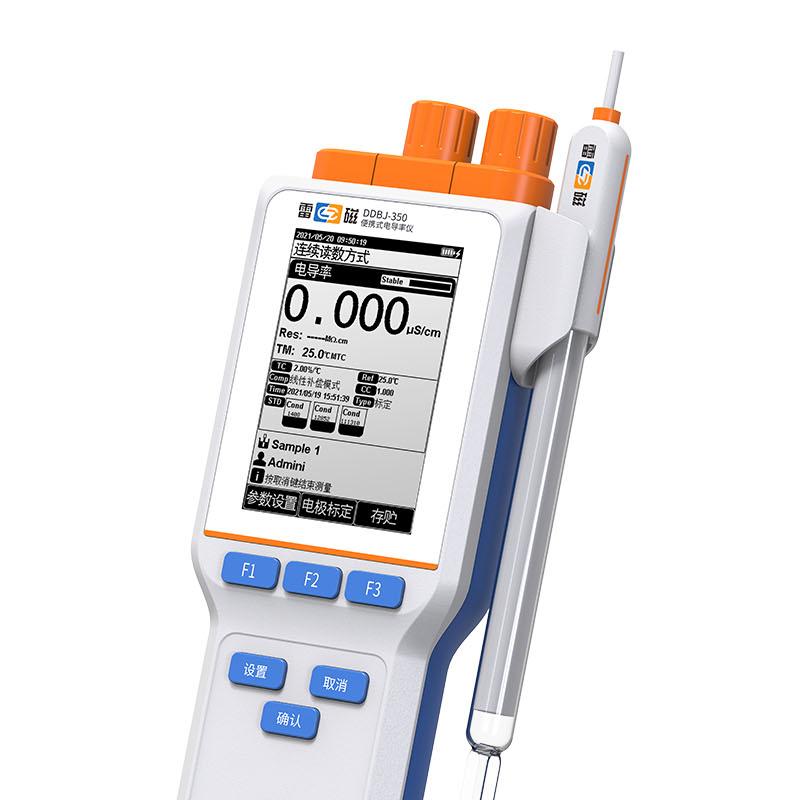

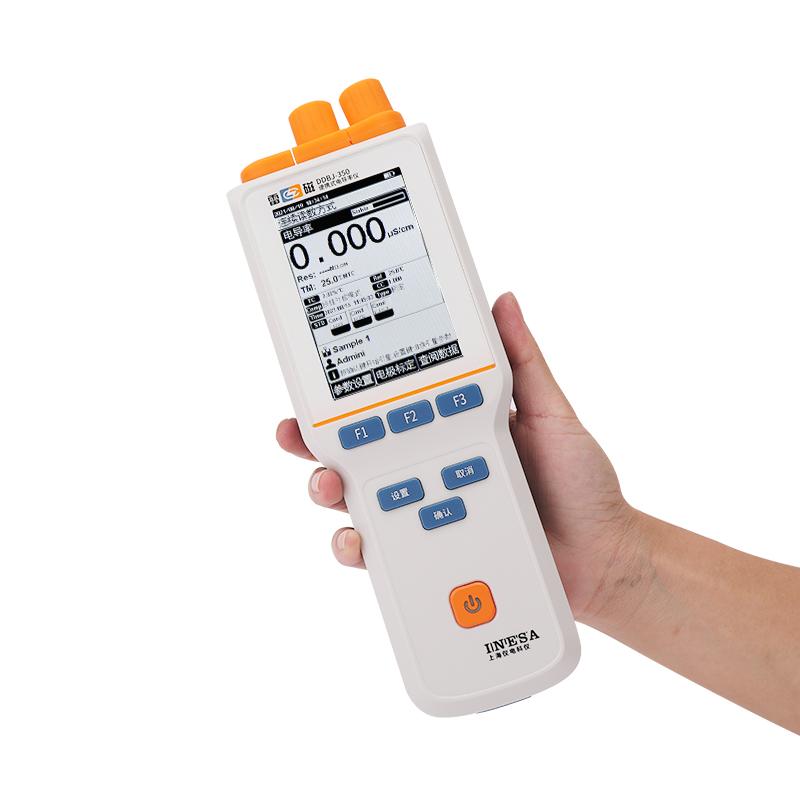

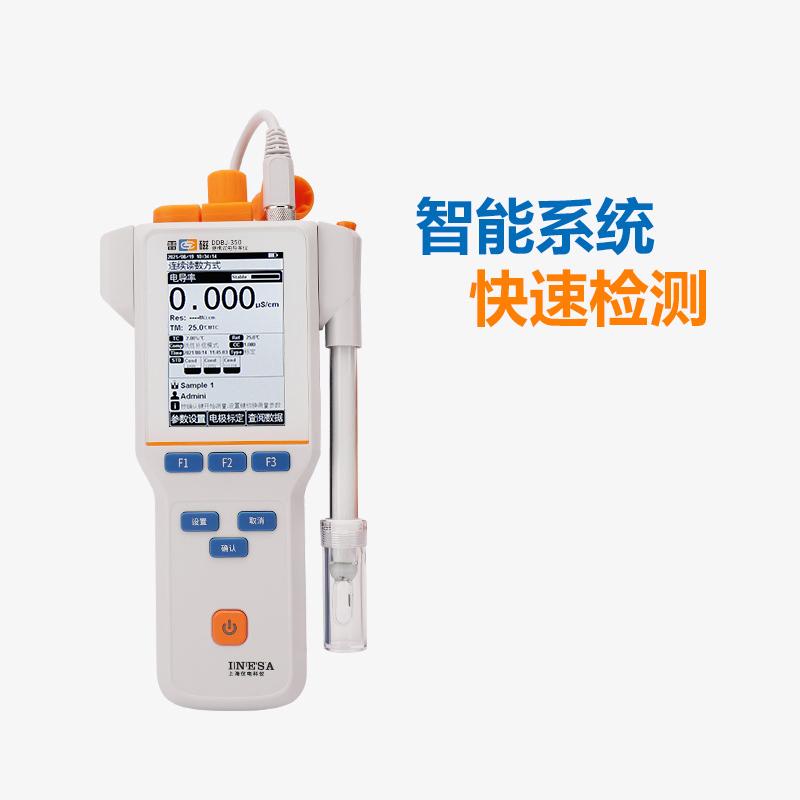

The LEICI DDBJ-350 Conductivity Meter is a High Accuracy Portable measuring instrument for simultaneous measurement of conductivity, TDS, salinity and temperature parameters. The instrument level is 1.0. It uses a high definition LCD screen display, supports IP65 Protection Rating, and comes standard with a composite Conductivity detector Electrode and a variety of accessories for rapid on-site inspection.
Features
1. Adopt high definition LCD screen, clear display
2. Temperature units available: ° C and ° F
3. Reference temperature 20 ° C or 25 ° C optional
4. Support functions such as boot self-diagnosis, automatic shutdown, power-off protection and factory reset
5. Support firmware upgrade function, allowing function expansion and personalized requirements
6. Support IP65 Protection Ratings
7. Standard Composite Conductivity detector Electrode, Electrode hanger, silicone protective cover, wristband, Portable suitcase, calibrated solution
8. Intelligent determination of endpoints, support automatic readings, timed readings, timed interval readings, manual readings
9. Support automatic/manual temperature compensation
10. Automatically identify 4 GB Conductivity detector standard solutions, support 1-3 point Conductivity detector Electrode calibration
11. Support non-compensation, linear, pure water compensation and other conductivity compensation methods
12. Support Automatic Frequency Switching, with 1.0 Constant Electrode covering full scale measurement
13. Data storage (500 sets each), access, delete, transfer and print
14. Compliant with GLP for data traceability
15. Support connecting standard RS-232 serial printer, directly print measurement results, print format optional
16. With USB interface, it is connected to the PC through dedicated communication software to achieve data transmission

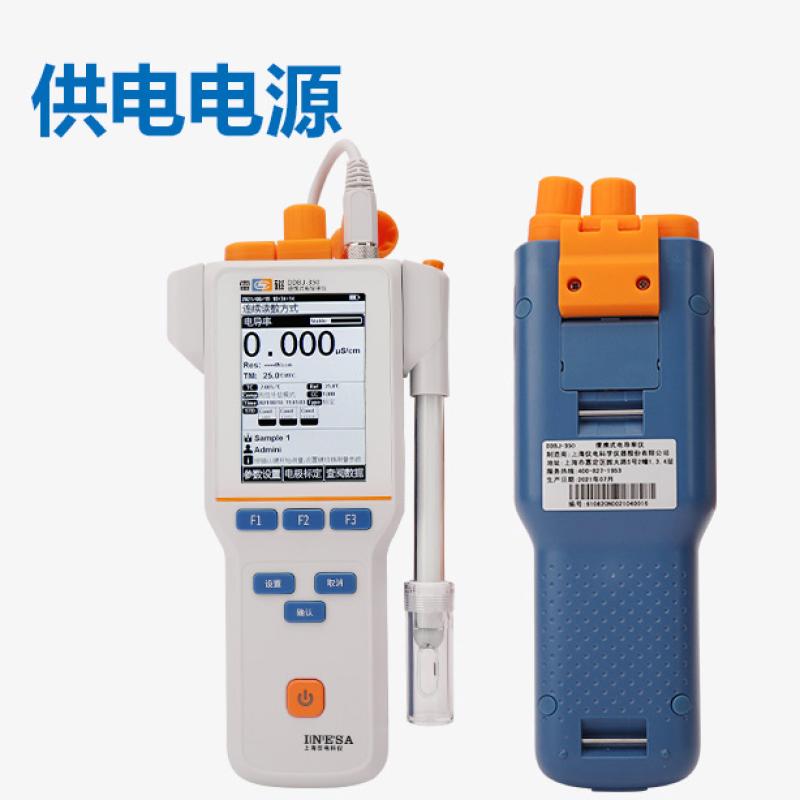

17. Large-capacity lithium battery power supply, support connecting PC and mobile power supply charging
18. With battery undervoltage reminder function and charging status reminder function
19. Support backlight adjustment
Principle
Conductivity detector Electrode measurement solution conductivity, using automatic Frequency switching technology to ensure Measurement accuracy, supporting 1.0 constant Electrode can cover the full range Measurement range, while supporting a variety of compensation methods and temperature compensation to ensure the accuracy of measurement results.
Applications
Water quality testing, environment monitoring, laboratory analysis, industrial process control, food and beverage production, agricultural irrigation, aquaculture
Steps
1. Boot self-test
2. Measurement parameters (conductivity, TDS, salinity or temperature)
3. Select the temperature unit and reference temperature as required
4. Electrode calibration (support 1-3 point calibration)
5. Select the reading mode (automatic, timed, timed interval, or manual)
6. Select the compensation method (no compensation, linear or pure water compensation)
7. Start measurement
8. Data storage or transmission
9. Optional printing of measurement results
Notice
• For samples below 20μS/cm, it is recommended to use 0.1 constant or 0.01 constant Conductivity detector Electrode measurement
• Pay attention to the battery undervoltage reminder and charge it in time
• Electrode calibration before use
• Electrode is fully immersed in the solution during measurement
• Regularly calibrate with calibrating solution
• Avoid use in extreme temperature environments
• Electrode cleaning and drying
