Overview

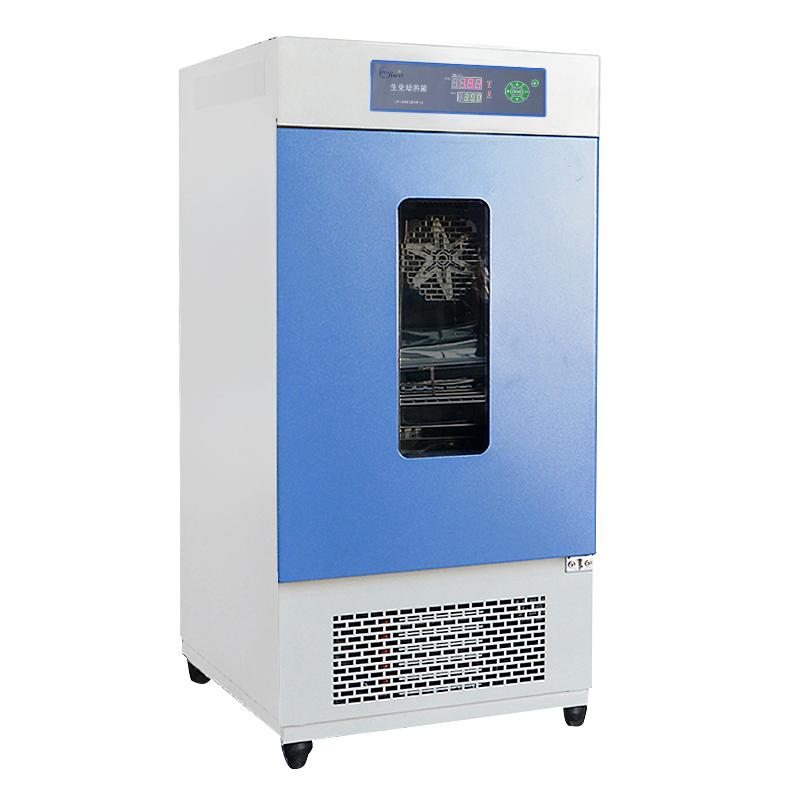

YIHENG LRH-1500F biochemistry cultivating box is an efficient and low energy consumption special thermostatic equipment. It adopts brand Compressor and circulating fan to effectively reduce energy consumption and noise. Compared with traditional low temperature equipment, the cooling time is reduced by more than 40%. It is suitable for scientific research, universities and production departments such as environment protection, drug inspection, agriculture and livestock, aquatic products, etc. It is used for water body analysis, BOD determination, bacteria, molds, microbial foster preservation, plant cultivation and breeding tests.
Features
1. Mirror stainless steel liner, four corners half arc design, easy to clean, adjustable shelf spacing.
2. Brand Compressor, using environmentally friendly refrigerant (R134a), effective, low energy consumption, promote energy saving.
3. Microcomputer PID temperature controller, accurate and reliable temperature control, less fluctuation, with timing function.
4. Three-speed speed control of the circulating fan speed to avoid sample volatilization due to excessive stroke volume during the test.
5. It is equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional).
6. With a printer or RS485 interface, it can be connected to a printer and a computer to record temperature parameter changes (optional).
7. LCD screen display, menu operation (with "F" in the model to have this function).
Principle
The biochemistry cultivating box realizes high-efficiency refrigeration and air circulation through the brand Compressor and circulating fan. The microcomputer PID temperature controller precisely adjusts the temperature to ensure the temperature stability in the box. The three-speed speed control of the circulating fan controls the air volume to avoid sample volatilization. The independent temperature limit alarm system automatically interrupts the operation when the temperature is abnormal to ensure safety.
Applications
Environmental protection, drug inspection, agricultural livestock, aquatic and other scientific research, universities and production departments
Steps
Connect the power supply and ensure that the voltage is AC 380V 50Hz.
2. Turn on the device and set the required temperature parameters through the LCD screen and menu operation.
3. Adjust the shelf spacing and circulating fan speed as needed.
4. Place samples and start equipment for fostering or testing.
5. Use the timing function or optional interface to record temperature data.
6. After the experiment, close the equipment and clean the liner.
Notice
• Ambient Temperature should be kept at + 5~ 30 ℃.
• To avoid sample volatilization due to excessive air volume, adjust the fan speed as needed.
• When selecting an independent temperature limit alarm system, ensure that the temperature limit is set correctly.
• When selecting a printer or RS485 interface, note that RS485/232 and the printer can only choose one of the two.
• Pay attention to the mirror stainless steel material of the liner when cleaning, and use the appropriate method.
• When the number of options increases, the delivery period may be extended by 7 days.
