Overview

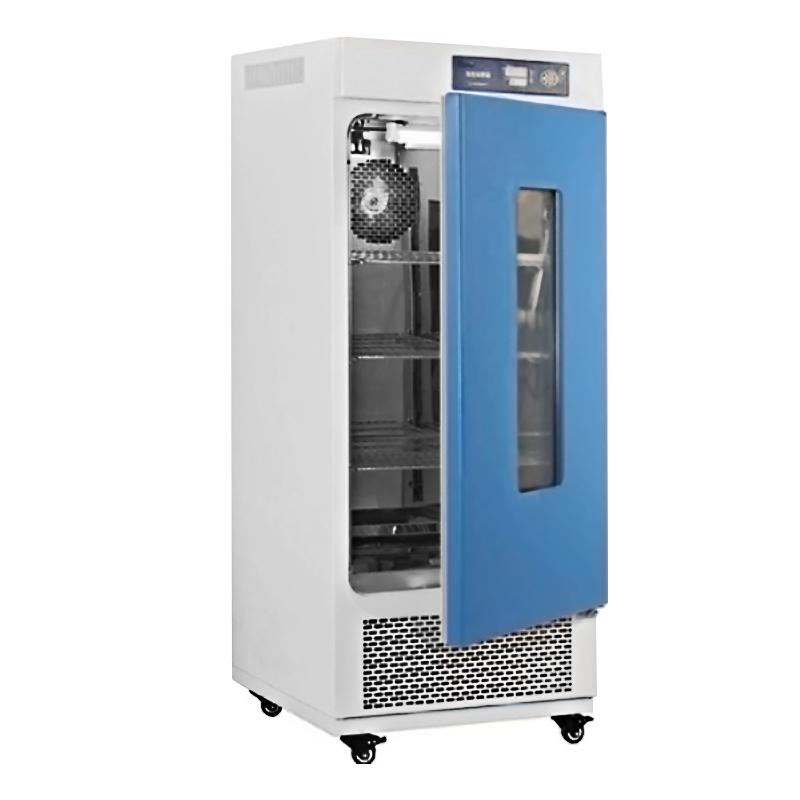

The YIHENG MJ-70-ⅰ mildew incubator is a special thermostatic device for mold, microbial fostering and preservation. The brand Compressor and circulating fan are used to effectively reduce energy consumption and noise, and the cooling time is reduced by more than 40% compared with traditional cryogenic equipment.
Features
1. Mirror stainless steel liner, four corners and half arc design, easy to clean, adjustable shelf spacing.
2. Brand Compressor, using environmentally friendly refrigerant (R134a), effective, low energy consumption, promote energy saving.
3. Microcomputer PID temperature controller, accurate and reliable temperature control, less fluctuation, with timing function.
4. Three-speed speed control of circulating fan speed to avoid sample volatilization due to excessive air volume.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Optional printer or RS485 interface (optional) to record temperature parameter changes.
7. LCD screen display, menu operation (with "F" in the model to have this function).
Principle
Through the microcomputer PID temperature controller to precisely control the temperature in the box, combined with the brand Compressor and circulating fan to achieve efficient cooling and air circulation, to ensure uniform and stable temperature, suitable for thermostatic foster environment.
Applications
Environmental protection, drug inspection, agricultural and livestock, aquatic research, colleges and universities, production departments, water analysis, BOD determination, bacterial foster, mold foster, microbial foster, preservation, plant cultivation, breeding test
Steps
1. Turn on the power supply AC 220V 50Hz.
2. Set the required temperature (0~ 60 ℃) and Timer Range (1~ 9999min) through the microcomputer PID temperature controller.
3. Adjust the circulating fan speed gear as required.
4. Place the sample on the adjustable spacing shelf.
5. Start the device, monitor temperature changes, and optional recording function.
Notice
• Ambient Temperature should be kept at + 5~ 30 ℃.
• Avoid sample volatilization due to excessive air volume, and choose the fan gear reasonably.
• When selecting an independent temperature limit alarm system, make sure it is set correctly to prevent accidents.
• Clean the liner regularly to maintain hygiene.
• The purchase requires an additional delivery period of 7 days, please plan in advance.
