Overview

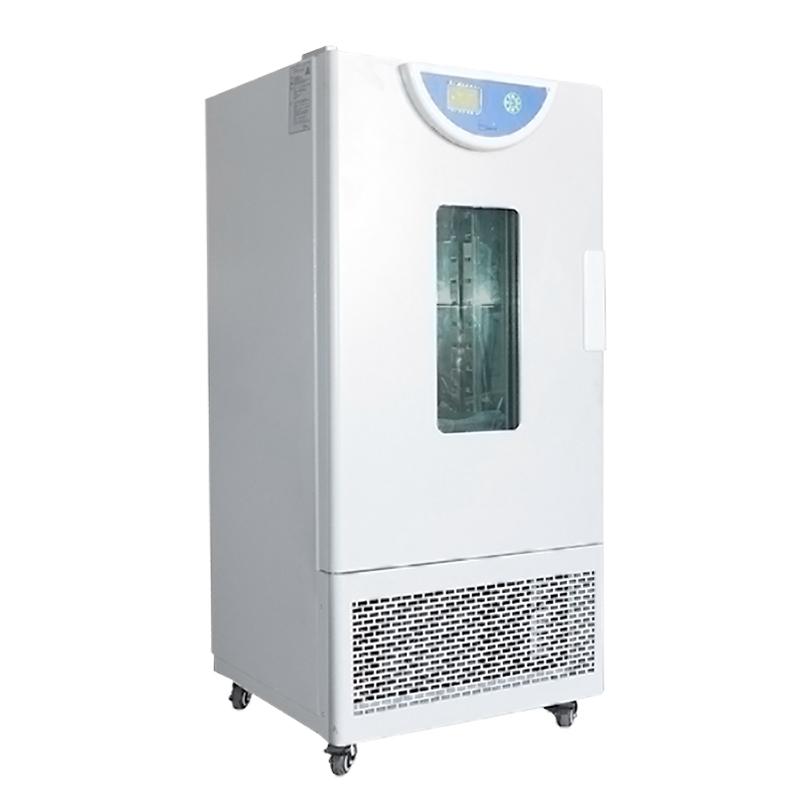

YIHENG BPC-70F biochemistry cultivating box is a new generation incubator, combining more than ten years of design and manufacturing experience, using fluorine-free environmental protection design, adhering to the concept of humanization, starting from customer needs, and meeting high quality requirements in details.
Features
1. Humanized design: fluorine-free environmental protection, large-screen LCD display, mirror stainless steel liner, removable shelf bracket, left 25mm test hole, compatible with Shaker thermostatic foster.
2. Quality assurance: brand Compressor and circulating fan, unique air duct system, fuzzy PID controller precise temperature control, timing function up to 99 hours and 59 minutes.
3. Automatic control of circulating fan speed: automatically adjust the wind speed according to the thermostatic state to avoid sample volatilization.
4. Self-diagnosis function: The LCD screen displays information when the fault occurs, which is convenient for quickly locating the problem.
5. LCD multi-segment programmable controller: Multi-Parameter one-screen display, menu operation, supports programming such as temperature, wind speed, time, etc., and can preset 7 sets of 63-step programs.
6. Convenient data processing (optional): Connect the printer or 485 Communication interface, USB data transfer, support computer display and printing.
7. Safety function: independent temperature limit alarm system (optional), automatic interruption of overtemperature and sound and light alarm.
8. UV sterilization system (optional): UV Lamp on the top of the box, regular disinfection to prevent pollution.
Principle
Using fuzzy PID controller and brand Compressor, combined with circulating fan and unique air duct system, to achieve precise temperature control; circulating fan speed is automatically adjusted to ensure that the wind speed in the thermostatic state is appropriate; multi-stage programmable function supports complex experimental automation operation.
Applications
Biochemical foster, cell foster, thermostatic vibration foster, microbial experiment, scientific research and education
Steps
1. Connect the power supply and turn it on.
2. Set parameters such as temperature and time through the large-screen LCD menu.
3. Optional programming multi-segment program, preset automatic function.
4. Place the sample and start the operation.
5. Monitor the display screen to view diagnostic information in case of failure.
6. Optional data processing function to connect external devices.
Notice
• Ambient Temperature should be between + 5 and 35 ℃.
• Avoid over-temperature operation to prevent automatic alarm interruption.
• Regularly clean the liner with a removable stand for easy cleaning.
• Optional functions such as ultraviolet sterilization should be used according to the instructions.
• In case of failure, deal with it according to the display information in time.
