Overview

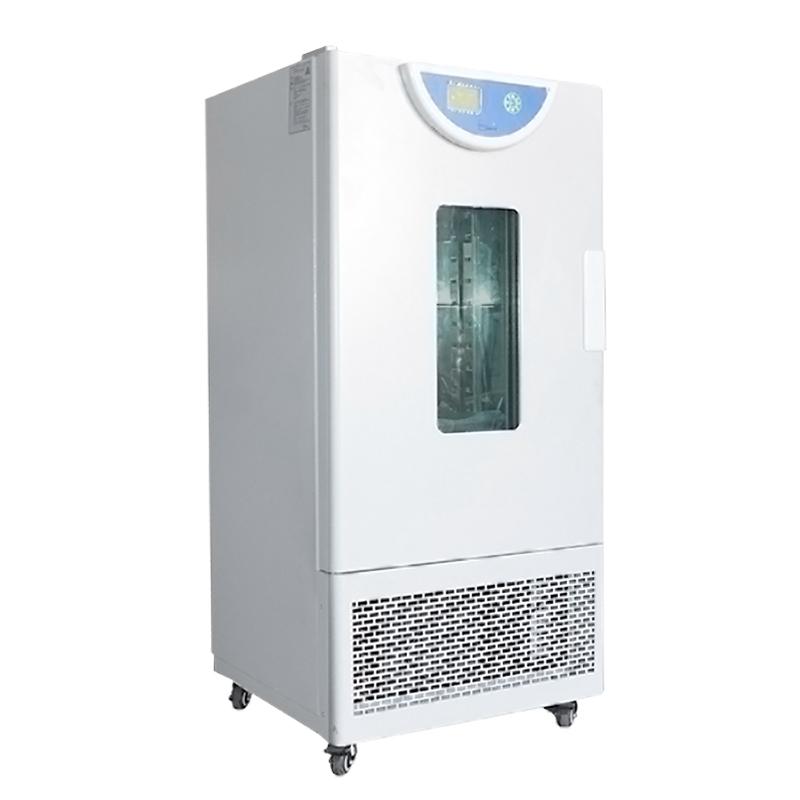

YIHENG BPC-500F biochemistry cultivating box is a new generation of products. It combines more than ten years of design and manufacturing experience of the company, conforms to the trend of environmental protection, and is in a technical professional position. Based on the humanized design concept, starting from the actual needs of customers and meeting the requirements in detail, we provide high-quality incubator series products.
Features
1. Humanized design: fluorine-free design, large-screen LCD display, mirror stainless steel liner, four corners and half arc transition, removable shelf bracket, left test hole, support thermostatic oscillation foster.
2. Quality assurance: brand Compressor and circulating fan, unique air duct circulation system, fuzzy PID controller, accurate temperature control and small fluctuation, with timing function.
3. Automatic control of circulating fan speed: automatically adjust the wind speed according to the temperature to avoid sample volatilization.
4. Self-diagnosis function: The LCD screen displays fault information when the fault occurs.
5. LCD multi-stage programmable controller: multi-stage parameter setting, simplifying complex tests, realizing automatic control and operation, and presetting automatic functions.
6. Convenient data processing (optional): connect the printer or 485 Communication interface, USB data transfer interface, computer display and printing.
7. Safety features: independent temperature limit alarm system, automatic alarm for high temperature and overtemperature.
8. UV sterilization system (optional): UV Lamp on the top of the box, regularly disinfected to prevent contamination.
Principle
Biochemistry Cultivating Box uses brand Compressor and circulating fan, combined with unique air duct circulation system, to ensure uniform temperature and Humidity in the working room. Fuzzy PID controller is used to precisely control temperature, and the speed of circulating fan is automatically controlled, reducing the wind speed in the thermostatic state to adapt to cell growth. Multi-stage programmable controller simplifies the test process and realizes automatic control and operation.
Applications
Cell fostering, thermostatic oscillation fostering, microbial fostering, experimental research
Steps
1. Connect the power supply and turn it on.
2. Set temperature, time and other parameters through the large-screen LCD display.
3. Use a multi-stage programmable controller preset program (up to 7 sets of 63 steps).
4. Place the sample and start the operation.
5. Monitor the running status and use the data processing function if necessary.
6. Shut down and clean the studio after running.
Notice
• Ensure that the Working Ambient Temperature is within the range of + 5~ 35 ° C.
• Avoid sample volatilization caused by excessive air volume, and pay attention to the automatic control of circulating air speed.
• Regularly use a UV sterilization system (if optional) for disinfection.
• When a fault occurs, check the fault information of the LCD screen.
When the temperature limit is exceeded, the system will automatically interrupt and alarm, so pay attention to safe operation.
• Optional functions require additional configuration, such as data processing and UV sterilization system.
• When cleaning liners, use removable shelves for easy cleaning.
