Overview

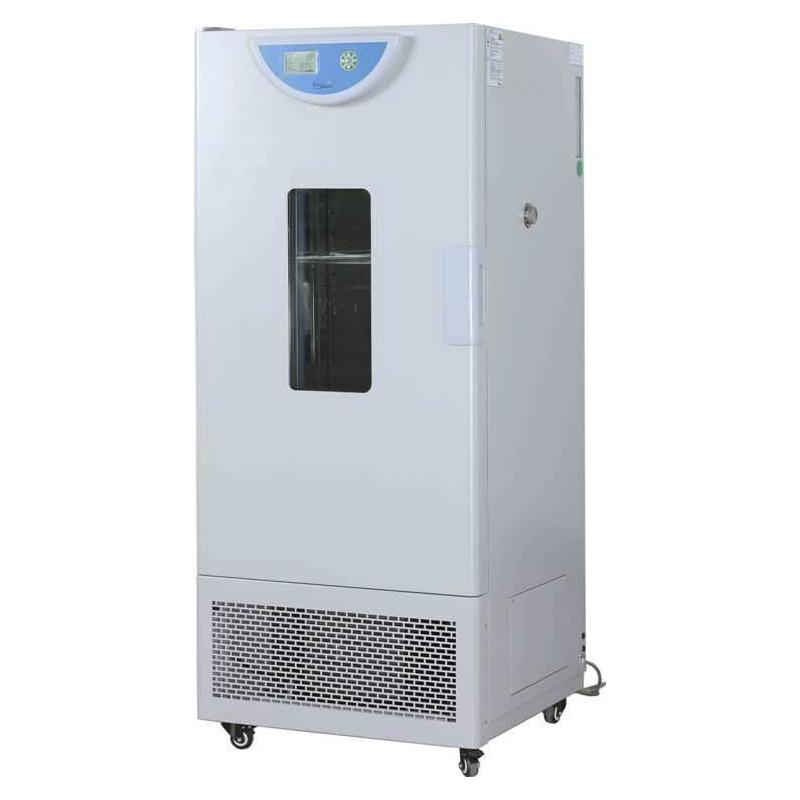

YIHENG BPMJ-70F mildew incubator is a new generation incubator. It combines more than ten years of design and manufacturing experience of the company, conforms to the trend of environmental protection, adopts fluorine-free design, and provides cutting-edge products for healthy life. The product is based on the humanized design concept, starting from the actual needs of customers, meeting the requirements in detail, and providing high-quality incubator series.
Features
1. Humanized design: fluorine-free design, large-screen LCD display, mirror stainless steel liner, test hole, Shaker can be placed.
2. Quality assurance: brand Compressor and circulating fan, fuzzy PID controller, timing function.
3. Automatic control of circulating fan speed: automatically adjust the wind speed to accommodate cell growth.
4. Self-diagnosis function: LCD display displays fault information.
5. LCD multi-stage programmable controller: multi-stage parameter setting, programming function, automatic control.
6. Convenient data processing: Optional printer, Communication interface, USB data transfer.
7. Safety functions: independent temperature limit alarm, sound and light alarm, high temperature and over-temperature alarm.
8. UV sterilization system: optional or mildew incubator standard, effectively prevent contamination.
Principle
The Mildew incubator uses a fuzzy PID controller for precise temperature control with small fluctuations. The circulating fan and unique air duct system ensure uniform temperature and Humidity in the studio. The circulating fan speed can be automatically controlled to reduce the wind speed in the thermostatic state to avoid sample volatilization. An optional UV sterilization system sterilizes the air in the box to prevent cell foster contamination.
Applications
Mold fostering, cell fostering, thermostatic oscillation fostering, experimental research
Standards
Fluorine-free design, environmental standards
Steps
1. Connect the power supply and set the Ambient Temperature.
2. Set parameters such as temperature, time, and circulating wind speed through the large-screen LCD display menu.
3. Use a multi-stage programmable controller preset program, with a maximum of 9 steps per group, and the time is 0-5999 minutes.
4. Optional data processing equipment, printer or Communication interface.
5. Start the incubator, monitor the running status, and display information on the LCD screen if there is any failure.
6. Use a UV sterilization system for regular disinfection (if equipped).
7. After the experiment, turn off the power and clean the studio.
Notice
• Ensure that the Working Ambient Temperature is within the range of + 5~ 35 ° C.
• Power supply voltage is AC220V 50Hz before use.
• To avoid sample volatilization caused by excessive air volume, the fan speed will be automatically adjusted.
• When a failure occurs, pay attention to the alarm information displayed on the LCD screen and deal with it in time.
• Regularly clean the liner and use mirror stainless steel for easy cleaning.
• Optional safety features such as independent temperature limit alarm ensure experimental safety.
• Pay attention to safety when using the UV sterilization system and avoid direct exposure.
• The shelf can be freely loaded and unloaded, handle it with care during operation.
