Overview

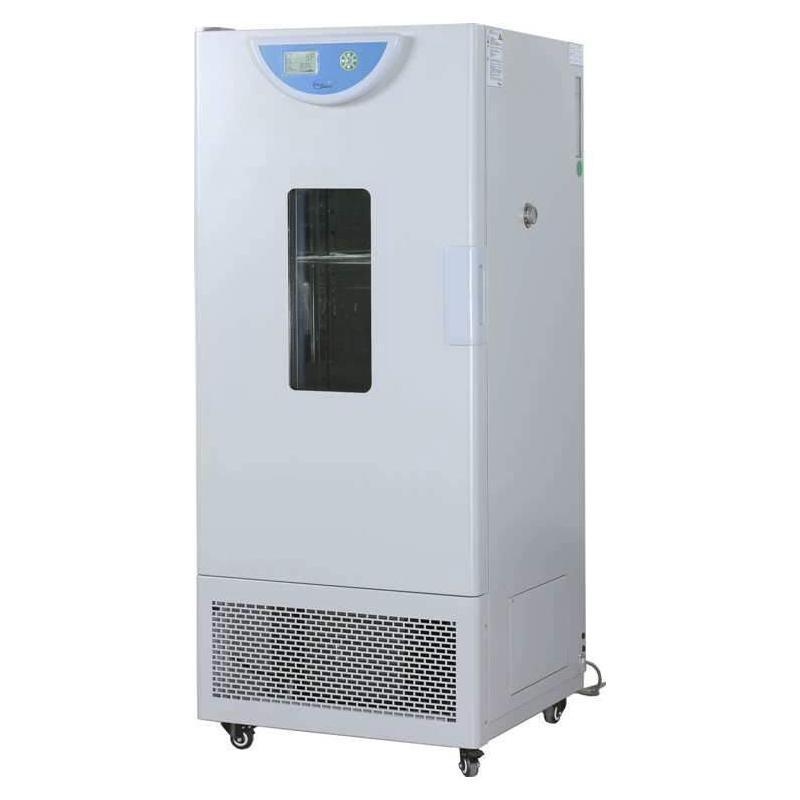

YIHENG BPMJ-500F mildew incubator is a new generation of incubator products. It combines more than ten years of design and manufacturing experience and adopts fluorine-free and environmentally friendly design. The product has mold fostering and sterilization and disinfection functions, adopts humanized design concepts, starts from the actual needs of customers, meets user requirements in detail, and provides high-quality incubator solutions.
Features
1. Humanized design: fluorine-free environmental protection design, large-screen LCD display, mirror stainless steel liner, test hole design, support thermostatic oscillation foster
2. Quality assurance: brand Compressor and circulating fan, fuzzy PID controller, timing function
3. Automatic control of circulating fan speed: automatically adjust the wind speed according to the temperature state
4. Self-diagnosis function: the LCD screen displays fault information when the fault occurs
5. LCD multi-segment programmable controller: Multi-Parameter one-screen display, temperature layer control can be set, preset automatic switch function, 7 groups of 63-step programming
6. Convenient data processing: support printer, 485 communication, USB data transfer
7. Safety functions: independent temperature limit alarm system, automatic alarm for high temperature and overtemperature
8. UV sterilization system: UV Lamp on the top of the box, regular disinfection to prevent pollution
Principle
Brand Compressor and circulating fan are used to ensure uniform temperature and Humidity in the working room through a unique air duct circulation system. Fuzzy PID controller realizes accurate temperature control, and the circulating fan speed can be automatically adjusted according to the temperature state. When the temperature in the box is constant, the wind speed can be automatically reduced to avoid sample volatilization. The ultraviolet sterilization system can regularly disinfect the inside of the box to effectively kill floating bacteria in the circulating air.
Applications
Mold foster, cell foster, thermostatic oscillation foster, laboratory foster
Standards
No relevant information
Steps
1. Connect power supply AC220V 50Hz
2. Set parameters through the large-screen LCD display interface
3. Use a multi-stage programmable controller to set parameters such as temperature and time
4. Set the temperature layer control and automatic switch function as needed
5. Start the device running
6. Monitor the running status. If there is a fault, the LCD screen will display fault information.
7. Turn off the device after the experiment is completed
Notice
• Ambient Temperature should be in the range of + 5~ 35 ℃
• Note Temperature Fluctuations: High Temperature +/- 0.3 ℃, Low Temperature +/- 0.5 ℃
• Temperature Uniformity of +/- 1.5 ℃ (at 25 ℃)
• Timer Range up to 5999 minutes
• If the temperature exceeds the limit, the operation will be automatically interrupted and alarmed
• UV sterilization system is an optional function, mildew incubator has this function
• Optional items require an additional 7-day delivery period
