Overview

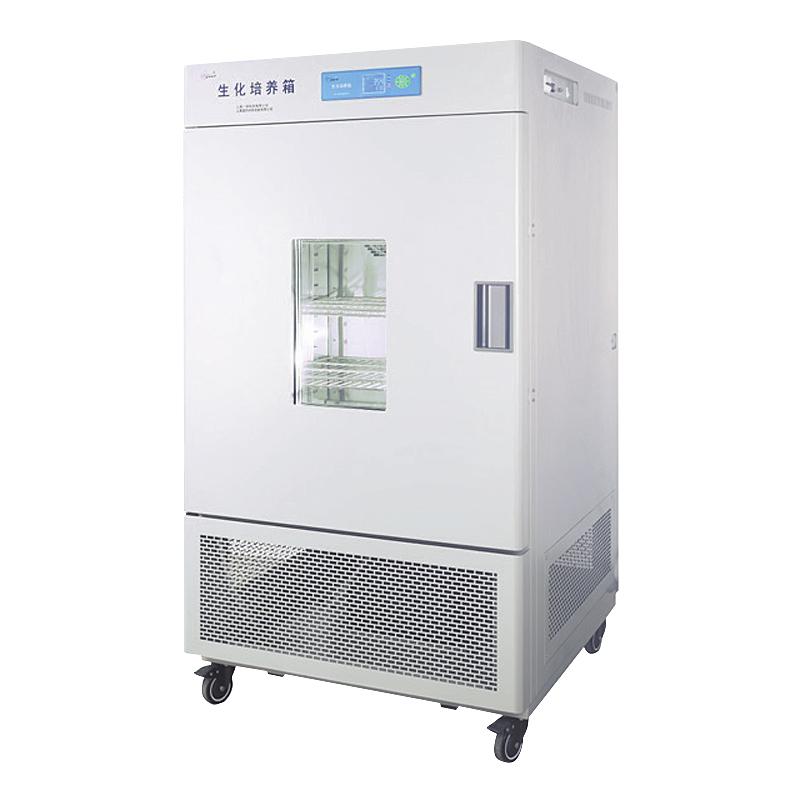

YIHENG LRH-50CL cryogenic incubator is a high-efficiency and energy-saving equipment, using brand Compressor and circulating fan, compared with traditional cryogenic equipment to reduce cooling time by more than 40%, widely used in storage of foster base, serum, products and microbial foster, environmental testing and other fields.
Features
1. Mirror stainless steel liner, four corners semicircular arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Microcomputer temperature controller that quickly reaches the set point and operates accurately and stably.
3. Brand Compressor and circulating fan, ring · Bao · type refrigerant (R134a), high efficiency, low energy consumption and energy saving.
4. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and Measuring temperature.
5. Independent temperature limit alarm system, exceeding the limit temperature automatically interrupts to ensure safety.
6. Can be equipped with a printer or RS485 interface to record temperature parameter changes (optional).
7. Multi-stage programming function, Menu Operating interface, Simplify complex test process (optional).
8. LCD multi-segment programmable controller, Multi-Parameter one-screen display, 7 sets of 63-step programs can be preset (optional).
Principle
The cryogenic incubator carries out the refrigeration cycle through the brand Compressor and circulating fan drive ring · Bao · type refrigerant (R134a), and the microcomputer temperature controller precisely adjusts the temperature, quickly reaches the set value and maintains stability to achieve efficient cooling.
Applications
Storage foster base, serum, product, microbial foster, environmental testing
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Set the required temperature parameters through the microcomputer temperature controller.
3. Optional multi-stage programming controller, preset temperature, time and other programs.
4. Start the device and monitor the running status.
5. Use the test hole for experimental operation and temperature measurement.
6. The equipment is automatically controlled and can optionally record temperature changes.
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• Power supply voltage is AC 220V 50Hz.
• Regularly clean the liner to avoid contamination.
• Pay attention to the independent temperature limit alarm system to prevent over-temperature accidents.
• Optional features require additional configuration, such as printers or multi-stage programmers.
