Overview

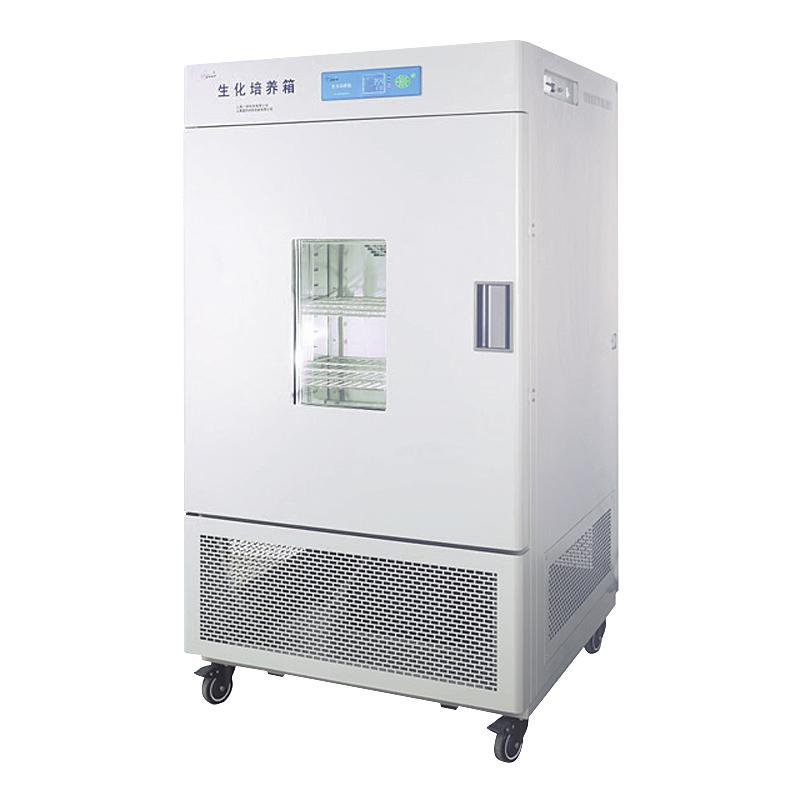

YIHENG LRH-150CB cryogenic incubator is a high-efficiency and energy-saving equipment, using brand Compressor and circulating fan, environmentally friendly refrigerant (R134a), compared with traditional cryogenic equipment to reduce cooling time by more than 40%, low energy consumption, low noise, long service life. Widely used in storage foster base, serum, * products and microbial foster, environmental testing and other fields.
Features
1. Mirror stainless steel liner, four corners semicircular arc transition, shelf bracket can be freely loaded and unloaded, easy to clean.
2. Microcomputer temperature controller, which quickly reaches the set value and operates accurately and stably (standard digital controller).
3. Brand Compressor and circulating fan, environmentally friendly refrigerant (R134a), high efficiency, low energy consumption and energy saving.
4. There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and Measuring temperature.
5. Independent temperature limit alarm system, exceeding the limit temperature automatically interrupts to ensure experimental safety (standard).
6. Optional printer or RS485 interface, connect printer and computer, record temperature parameter changes (optional).
7. Multi-stage programming function, Menu-type Operating interface, simplifies the complex test process, and realizes automatic control (optional).
8. LCD multi-segment programmable controller (optional), Multi-Parameter one-screen display, can set temperature, circulating wind speed, time, heating rate, etc., preset 7 sets of 63-step programs, each set of 9 steps, time 1~ 9999 minutes.
Principle
The cryogenic incubator precisely controls the temperature in the box through a microcomputer temperature controller, uses a brand Compressor and circulating fan to achieve efficient cooling, and uses an environmentally friendly refrigerant (R134a) to reduce energy consumption. The multi-stage programming function allows users to set parameters such as temperature and time to realize automatic temperature rise and layer control to ensure the stability and reliability of the experimental process.
Applications
Storage foster base, serum, product, microbial foster, environmental testing
Steps
1. Connect the power supply (AC 380V 50Hz).
2. Set the required temperature parameters through the microcomputer temperature controller.
3. Optional multi-stage programming function to set parameters such as temperature, circulating wind speed, and time.
4. Start the device and monitor temperature changes.
5. Use the test hole for experimental operation and temperature measurement.
6. After the experiment, turn off the power and clean the liner.
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• Power supply voltage is AC 380V 50Hz to avoid overload.
• Check whether the function of the independent temperature limit alarm system is normal before use.
• When cleaning the liner, pay attention to remove the shelf bracket to avoid damage to the mirror stainless steel surface.
• Optional functions such as printer or multi-stage programming need to be operated according to the instructions.
• The equipment is heavy (Net weight 257Kg), and care should be taken to prevent damage when handling.
