LANDTEK PH/ORP-2000 acid alkalinity controller, industrial pH Meter Impedance input type

Name: LANDTEK PH/ORP-2000 acid alkalinity controller, industrial pH Meter Impedance input type
Brand: LANDTEK
SKU: NB001139
Price: 208.0 USD
Availability: InStock

$ 208.00Ex works

Impedance input controller, equipped with two-stage signal amplifier, Measurement accuracy of +/- 0.01pH, support for external brands of ElectRode, suitable for harsh industrial environments.

Model

PH/ORP-2000

Get Quote

Category : pH Meter

Brand : LANDTEK

SKU : NB001139

Service :The delivery and service By NBCLab.Com

Overview

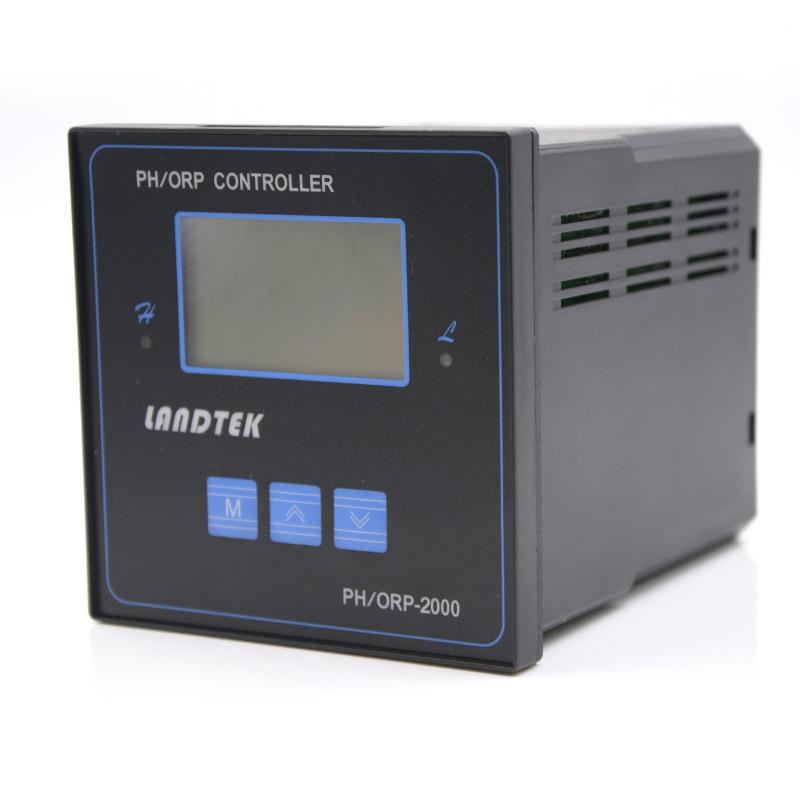

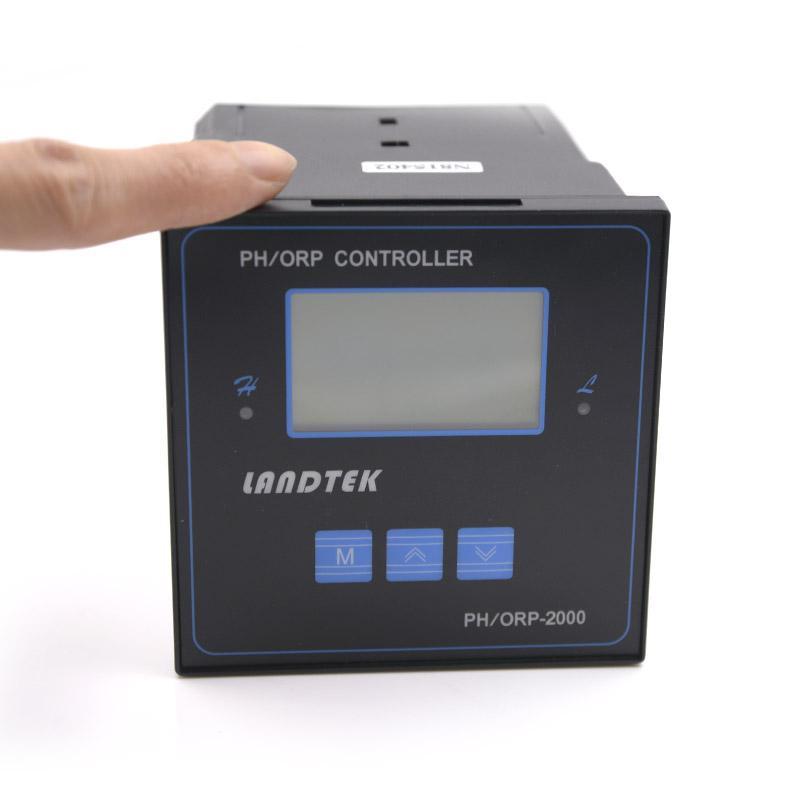

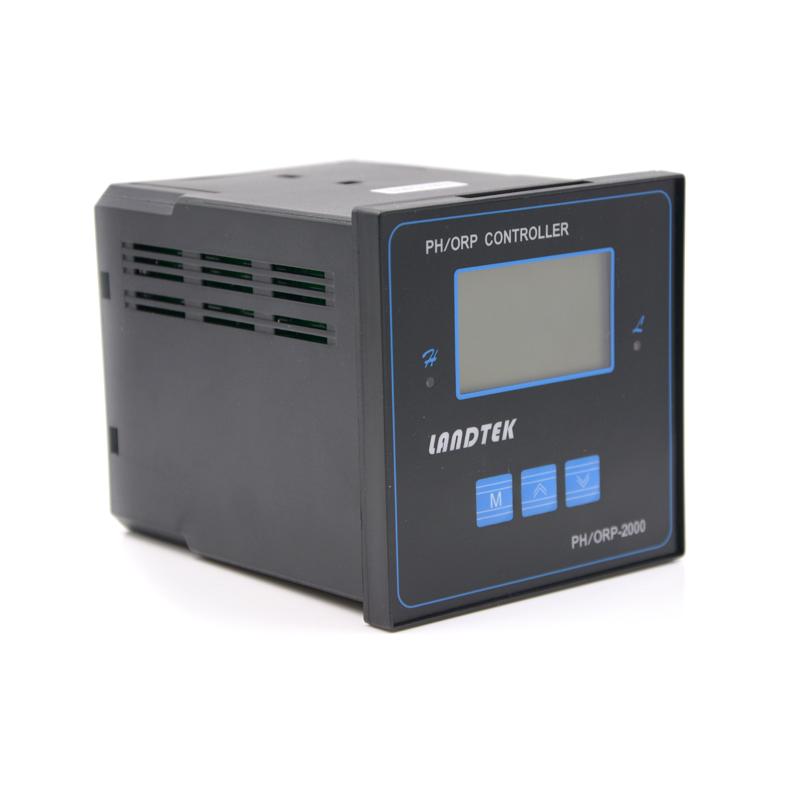

The LANDTEK alkalinity controller PH/ORP-2000 is an industrial pH meter composed of Electrode and Electrometer, with acid alkalinity detection and Oxidation-reduction potential dual-use functions. The large-size LCD screen display is clear and intuitive; the controller is a high Impedance input type, and a two-stage signal amplifier is installed at the signal input end, which is widely applicable and can be connected to any brand of industrial PH or ORP Electrode.

Features

1. Digital display, backlit display large LCD screen 2. High Impedance Input Controller with Two-Pole Signal Amplifier at the Signal Input 3, PH/ORP-2000 acid alkalinity controller can be externally connected to a variety of brands of PH Electrode or ORP Electrode

Principle

The product detects acid alkalinity or Oxidation-reduction potential signals by Electrode. The signals are processed by high Impedance input and two-stage signal amplifier, and finally the measurement results are displayed on the LCD screen and can be controlled and output.

Applications

On-site process, wastewater treatment, discharge water, PH or ORP control of fermentation tank, chemical process acid alkalinity monitoring, electronic process acid alkalinity monitoring

PH Measurement Range
0 ~ 14 pH / 1 mV、-1000 ~ 1000 mV
Accuracy
0.01 pH、1 mV
display screen
Backlit LCD
signal output
DC 4~ 20 mA Max. Load 1 K (optional)
control action
On/Off
connection current
220 VAC Max. 3 A or 6 VA
Set control points
2 (High and Low)
operating temperature
0 ~ 60℃
power supply
220 VAC 50 Hz or 110 VAC 60 Hz
opening Size
92mm（H）- 92mm（W）- 110mm（D）
weight
0.2 Kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
