Overview

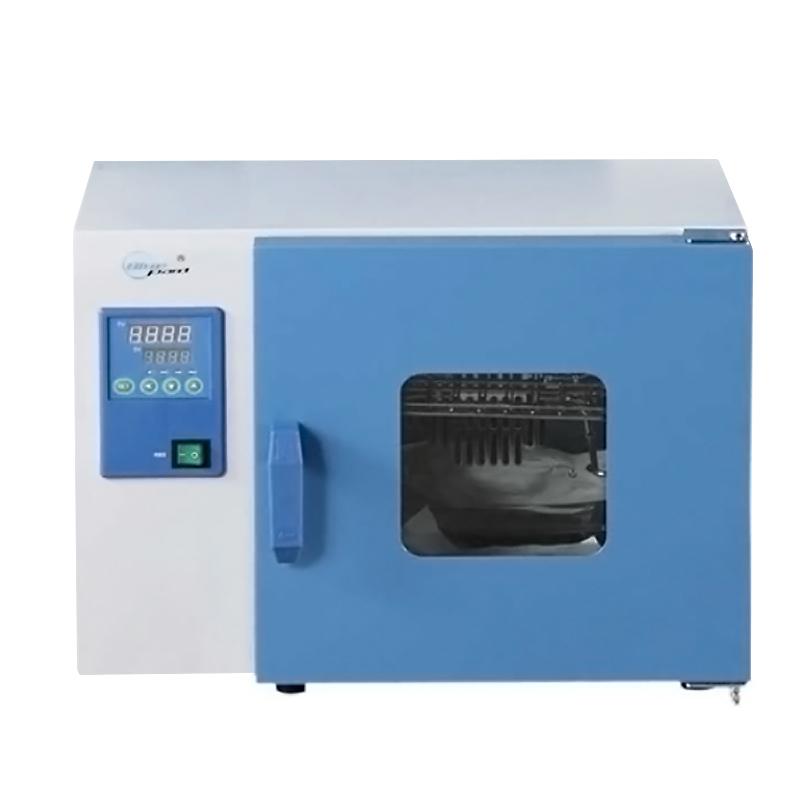

YIHENG DHP-9012 Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller for accurate temperature control with small fluctuations and timing function. Forced convection air duct system improves temperature Response speed and uniformity, mirror stainless steel liner and electric heating film Heating mode ensure fast and uniform heating, suitable for experimental environments such as cell foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection duct system to improve Temperature Response Speed, Improve Temperature uniformity and reduce temperature fluctuations.
3. Glass door inside the door, easy to observe, Glass door open automatically stop breeze circulation and heating, no temperature overshoot.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. The speed of the circulating fan is automatically controlled, and the speed is reduced when thermostatic, and adjusted to the appropriate wind speed for cell growth.
8. Multi-stage programmable controller (optional), multi-stage liquid crystal display, menu operation, simplifying complex tests.
9. Parameters such as multi-stage temperature, circulating wind speed, time, and heating rate can be set and programmed simultaneously.
10. 7 groups of 63 steps can be preset, 9 steps per group, and the setting time is 1 to 99 hours and 59 minutes.
11. Safety features include independent temperature limit alarm system (optional), sound and light alarm, high temperature, low temperature and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regularly disinfect the box to kill floating bacteria and prevent contamination.
Principle
Electric heated incubators of constant temperature precisely adjust the temperature through the fuzzy PID controller, and use the electric heating film Heating mode to quickly unify the heating space in the box. The forced convection air duct system automatically controls the wind speed through the circulating fan to improve the temperature Response and uniformity, and automatically stops the circulation and heating when the box door is opened to prevent temperature fluctuations. Multi-stage programmable controller (optional) allows setting temperature, wind speed and time parameters for automatic control operation.
Applications
Cell fostering, experimental research
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃, Temperature resolution 0.1 ℃.
3. Use the fuzzy PID controller to adjust the temperature, and the optional timing function sets the time.
4. Select a multi-stage programmable controller as required to set parameters such as temperature, wind speed, and time.
5. Start the equipment and observe the status of the box, which can be easily viewed through the Glass door.
6. After the experiment, turn off the power.
Notice
• Power supply voltage is AC 220V 50Hz before use to avoid voltage mismatch.
• When the box door is opened, the breeze circulation and heating will automatically stop, and pay attention to prevent temperature fluctuations.
• Independent temperature limit alarm system is an optional function. Safety protection is required.
• Automatic control of circulating fan speed to avoid sample volatilization caused by excessive air volume.
• Multi-stage programmable controller and UV sterilization system are optional and can be configured according to experimental requirements.
• Regularly check the operating status of the equipment to prevent overheating or Miscellaneous abnormalities.
Net weight 20Kg, packing size 670 * 530 * 510mm to avoid damage.
