Overview

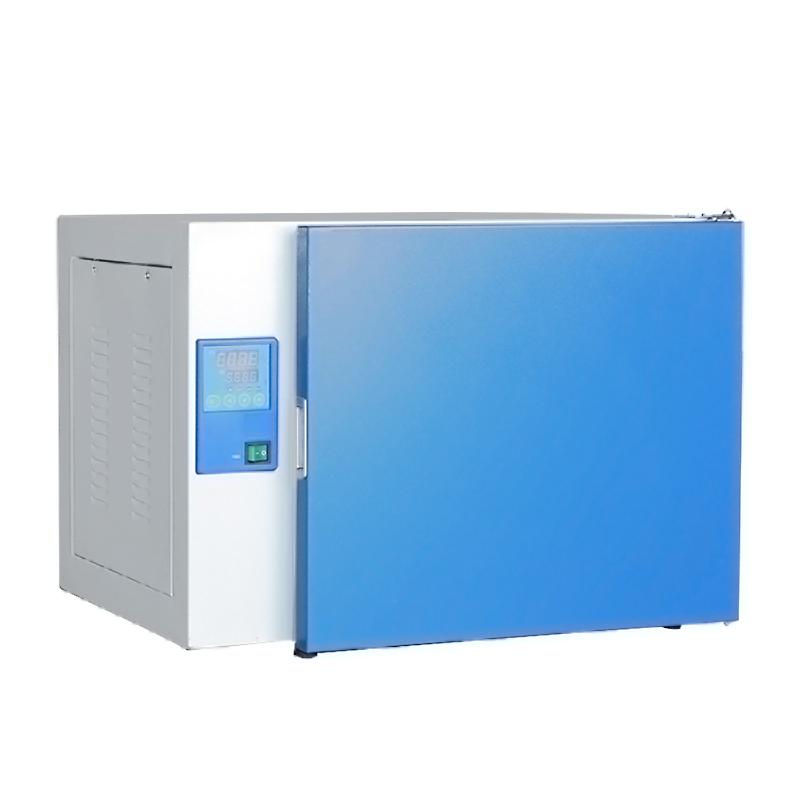

YIHENG DHP-9032 Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller for accurate temperature control with small fluctuations and timing function. Equipped with a forced convection air duct system to improve temperature Response speed and uniformity, suitable for laboratory thermostatic foster needs.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve Temperature Response Speed, improve Temperature uniformity and reduce temperature fluctuation.
3. Glass door inside the box door, easy to observe, Glass door open automatically stop breeze circulation and heating.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. Automatic control of circulating fan speed, automatically reduce wind speed when thermostatic, avoid sample volatilization.
8. Multi-stage programmable controller (optional), liquid crystal display, menu operation, automatic control.
9. Parameters such as multi-stage temperature, circulating wind speed, time and heating rate can be programmed to support layer control.
10. 7 sets of 63 steps can be programmed, each set of 9 steps, and the time can be set from 1 to 99 hours and 59 minutes.
11. Safety functions include independent temperature limit alarm (optional), sound and light alarm, temperature deviation and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regular disinfection to prevent cell fostering contamination.
Principle
The incubator precisely adjusts the temperature through the fuzzy PID controller, and uses the electric heating film Heating mode to quickly and evenly heat the space in the box. The forced convection air duct system promotes air circulation and improves Temperature uniformity; the circulating fan speed is automatically adjusted according to the thermostatic state to optimize the cell growth environment. When the box door is opened, the system automatically stops circulation and heating to prevent temperature fluctuations.
Applications
Laboratory, cell foster, thermostatic foster
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Use the timing function to set the maximum time to 99 hours and 59 minutes.
4. If you need to program, configure the multi-stage program (optional).
5. Start the device and monitor Temperature Uniformity +/- 1.5 ° C and Fluctuation +/- 0.5 ° C.
6. Observe the situation inside the box, which can be viewed through the Glass door.
Notice
• Power supply voltage check before use is AC 220V 50Hz.
• When setting the temperature, pay attention to the Temperature range RT + 5~ 65 ℃ to avoid exceeding the limit.
• When the box door is opened, the circulation and heating will automatically stop, and the system will resume after closing.
• Optional functions such as independent temperature limit alarm and ultraviolet sterilization require additional configuration.
• Regularly clean the liner to maintain the mirror stainless steel surface.
• Avoid sample volatilization due to excessive air volume, and the fan speed is automatically controlled.
• Follow the menu interface during programming operations to prevent incorrect settings.
• Timely treatment of alarm prompts when overtemperature or temperature deviation.
