Overview

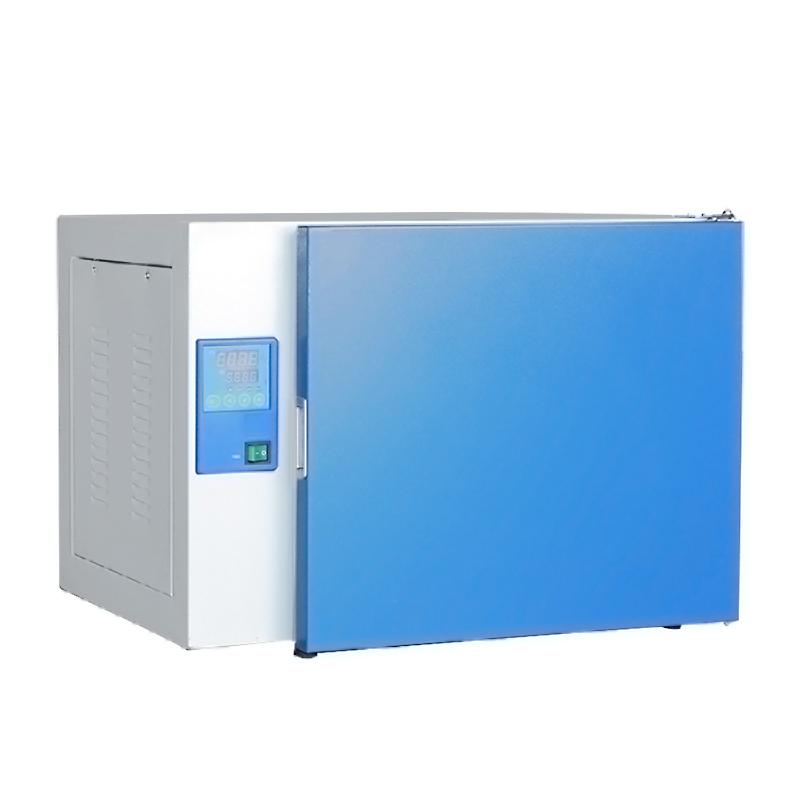

YIHENG DHP-9032B Electric heated incubators of constant temperature is a High Accuracy thermostatic device with fuzzy PID controller, with accurate temperature control and small fluctuation, with timing function. The cabinet adopts mirror stainless steel liner and electric heating film Heating mode, the heating speed is fast and uniform, and it is suitable for thermostatic experimental environments such as cell foster and microbial foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve Temperature Response Speed, improve Temperature uniformity and reduce temperature fluctuation.
3. Glass door design on the inner layer of the box door is convenient for observation. Glass door automatically stops breeze circulation and heating when opened to avoid temperature overshoot.
4. Heating mode of mirror stainless steel liner and electric heating film, fast heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure the safety of the experiment.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. Automatic control of circulating fan speed, automatically reduce wind speed when thermostatic, avoid sample volatilization.
8. Multi-stage programmable controller (optional), liquid crystal display, menu operation, simplifying complex tests.
9. Multi-stage temperature, circulating wind speed, time and other parameters can be programmed to support layer control and automatic switch.
10. 7 sets of 63-step programs can be preset, each set of 9 steps, and the time can be set from 1 to 99 hours and 59 minutes.
11. Safety functions include independent temperature limit alarm (optional), sound and light alarm, high/low temperature and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regularly disinfect the box to prevent cell fostering contamination.
Principle
The incubator precisely adjusts the temperature with a fuzzy PID controller, combined with a forced convection air duct system for rapid temperature Response and uniform distribution. Electric heating film Heating mode Fast uniform heating liner, automatic control of circulating fan speed, adjust the wind speed in the thermostatic state to adapt to the needs of cell growth. Optional multi-stage programmable controller for automatic control of complex experimental processes.
Applications
Cell fostering, microbial fostering, thermostatic experiment
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Optional multi-stage programmable controller, setting temperature, wind speed, time and other programs.
4. Start the device and monitor Temperature Uniformity +/- 1.5 ° C and Fluctuation +/- 0.5 ° C.
5. Turn off the power after use, and an optional ultraviolet sterilization system can be used for disinfection.
Notice
• Power supply voltage must be AC 220V 50Hz to avoid voltage mismatch.
• Temperature range is limited to RT + 5~ 65 ℃, do not use beyond the range.
• Temperature Uniformity is +/- 1.5 ℃, Fluctuation is +/- 0.5 ℃, need to be calibrated regularly.
• Input Power 200W to ensure circuit load safety.
• Capacity 35L, liner size 340 * 320 * 320mm, do not overload.
• Two are standard on the shelf, and the samples are reasonably distributed.
• There are no standard observation windows and inner Glass doors, so pay attention to operation safety.
• Optional functions such as independent temperature limit alarm, printer interface, multi-stage programmer, UV sterilization system, additional configuration is required.
• When the circulating fan is automatically controlled, avoid human interference with the wind speed.
• Glass doors automatically stop circulation and heating when opened to prevent temperature abnormalities.
