Overview

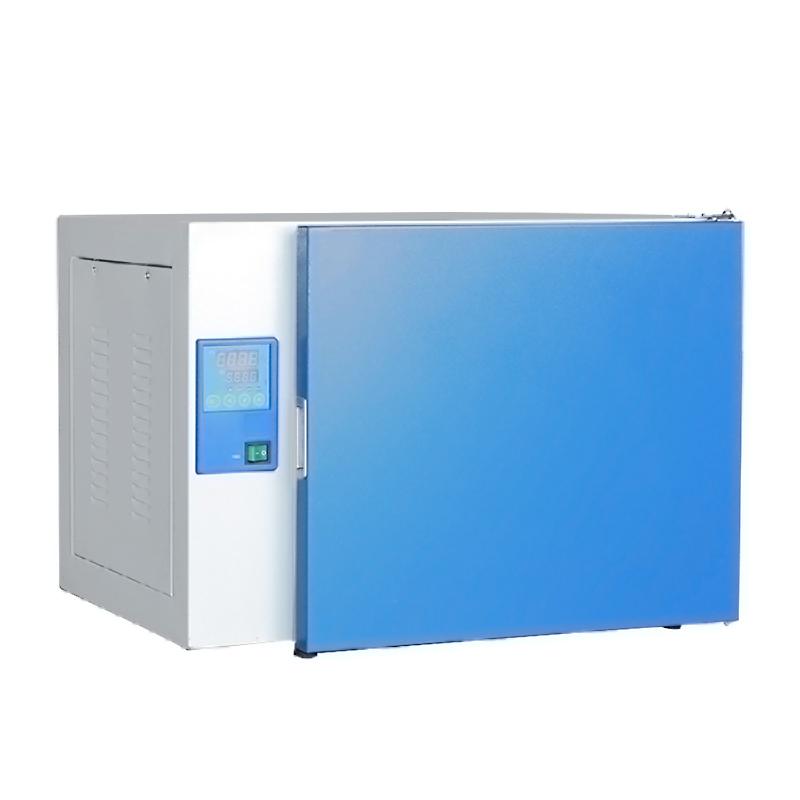

YIHENG DHP-9052 Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller for accurate temperature control with small fluctuations and timing function. Equipped with forced convection air duct system to improve temperature Response speed and improve Temperature uniformity, mirror stainless steel liner and electric heating film Heating mode ensure fast and uniform heating.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection duct system to improve Temperature Response Speed, Improve Temperature uniformity and reduce temperature fluctuations.
3. Glass door inside the door, easy to observe, Glass door open when the breeze circulation and heating automatically stop, no temperature overshoot.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. The speed of the circulating fan is automatically controlled, and the speed is reduced when thermostatic, and adjusted to the appropriate wind speed for cell growth.
8. Multi-stage programmable controller (optional), multi-stage liquid crystal display, menu operation, simplifying complex tests.
9. Parameters such as multi-stage temperature, circulating wind speed, time and heating rate can be programmed to support layer control.
10. 7 groups of 63 steps can be preset, 9 steps per group, and the setting time is 1 to 99 hours and 59 minutes.
11. Safety functions include independent temperature limit alarm (optional), sound and light alarm, high or low temperature and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regularly disinfect the box to kill floating bacteria and prevent contamination.
Principle
The incubator precisely adjusts the temperature with a fuzzy PID controller, utilizing a forced convection air duct system to circulate air, improving temperature Response and uniformity. Electric heating film Heating mode Fast uniform heating liner, automatic control of circulating fan speed, reduce wind speed in thermostatic state to accommodate cell growth. Multi-stage programmable controller (optional) for automatic control of complex experiments.
Applications
Cell fostering, microbial fostering, biological experiment, scientific research and education, medical inspection
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃, Temperature resolution 0.1 ℃.
3. Set the timing function as needed, with a maximum time of 99 hours and 59 minutes.
4. Optional multi-stage programmable controller to set temperature, wind speed, time and other parameters.
5. Start the device and monitor Temperature Uniformity +/- 1.5 ° C and Fluctuation +/- 0.5 ° C.
6. Turn off the power after use and clean the liner.
Notice
• Power supply voltage must be AC 220V 50Hz to avoid voltage mismatch.
• Temperature range is limited to RT + 5~ 65 ℃, do not use beyond the range.
• Glass door open, breeze circulation and heating automatically stop, pay attention to safety.
• The independent temperature limit alarm system is optional, and the temperature needs to be manually monitored when not optional.
• Automatic control of circulating fan speed to avoid sample volatilization caused by excessive air volume.
• Multi-stage programmable controller and UV sterilization system are optional and require additional configuration.
• Regularly check the equipment to ensure that Temperature Uniformity and Fluctuations are within the standard.
Net weight 33Kg, packing size 750 * 600 * 670mm.
