Overview

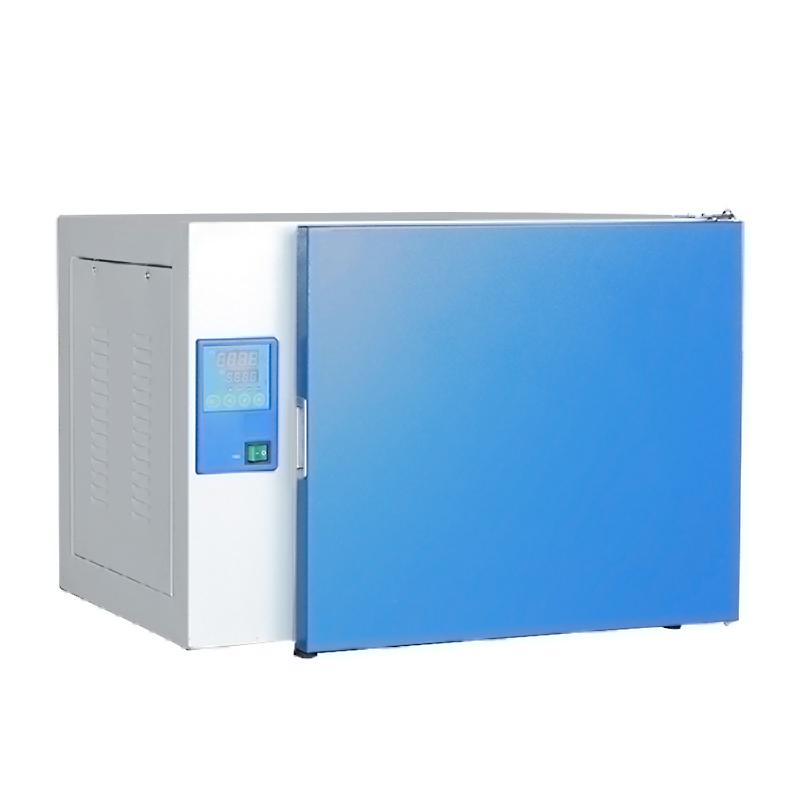

YIHENG DHP-9052B Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller, with accurate temperature control and small fluctuation, with timing function. The cabinet adopts mirror stainless steel liner and electric heating film Heating mode, and the heating speed is fast and uniform. It is suitable for experimental environments such as cell foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve Temperature Response Speed, improve Temperature uniformity and reduce temperature fluctuation.
3. Glass door inside the door, easy to observe, Glass door open automatically stop breeze circulation and heating, to prevent temperature overshoot.
4. Heating mode of mirror stainless steel liner and electric heating film, heating speed is fast and uniform.
5. Independent temperature limit alarm system, automatic interruption over temperature to ensure safety (optional).
6. Can be equipped with a printer or RS485 interface to record temperature parameter changes (optional).
7. The speed of the circulating fan is automatically controlled, and the wind speed is reduced when the thermostatic is used to avoid the volatilization of the sample.
8. Multi-segment programmable controller, Multi-Parameter one-screen display, menu operation (optional).
9. Multi-stage temperature, wind speed, time and heating rate can be programmed, support layer control and automatic switch (optional).
10. 7 groups of 63-step programs can be preset, each group has 9 steps, and the time is set from 1 to 99 hours and 59 minutes (optional).
11. Safety functions include independent temperature limit alarm, sound and light prompt and temperature deviation alarm (optional).
12. UV sterilization system, regularly disinfect the box to prevent contamination (optional).
Principle
The incubator precisely adjusts the temperature through a fuzzy PID controller, adopts a forced convection air duct system and an electric heating film Heating mode to achieve fast and uniform heating. The circulating fan speed is automatically controlled to reduce the wind speed in the thermostatic state and avoid sample volatilization. Optional multi-stage programming function can automatically control the temperature, wind speed and time parameters.
Applications
Cell fostering, experimental research
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Optional setting of timing function or multi-stage programming parameters.
4. Start Equipment, Monitor Temperature Uniformity and Fluctuations.
5. Clean liner after use, optional ultraviolet sterilization system disinfection.
Notice
• Power supply voltage must be AC 220V 50Hz to avoid improper voltage.
• Temperature range is limited to RT + 5~ 65 ℃, do not use beyond the range.
• Glass door automatically stops circulation and heating when opened, pay attention to safety during operation.
• Independent temperature limit alarm system is optional. Safety protection is required.
• Automatic control of circulating fan speed to avoid manual interference in thermostatic state.
• Multi-stage programming and UV sterilization system are optional functions, configured on demand.
• Check liners and shelves regularly to keep them clean.
• Avoid continued operation under over-temperature or alarm conditions to prevent accidents.
