Overview

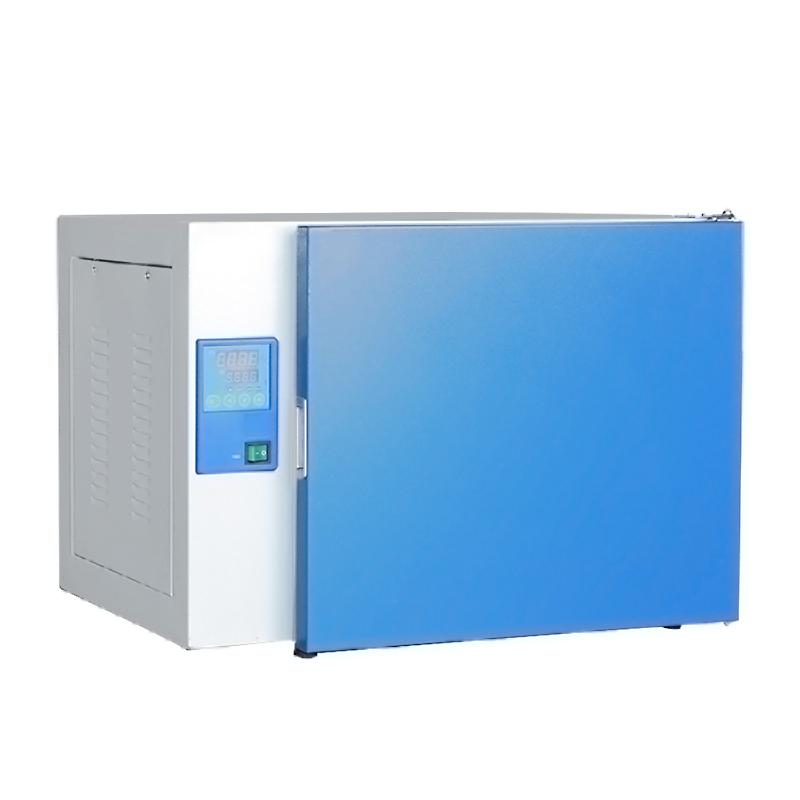

YIHENG DHP-9162B Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller, which has accurate temperature control, small fluctuation and timing function. The cabinet adopts mirror stainless steel liner and electric heating film Heating mode, and the heating speed is fast and uniform. It is suitable for thermostatic experimental environments such as cell foster and microbial foster.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection air duct system, improve temperature Response speed, improve uniformity and reduce fluctuation.
3. Glass door on the inner layer of the box door, easy to observe, automatically stop circulation and heating when opening the door to prevent temperature overshoot.
4. Mirror stainless steel liner and electric heating film heating, heating quickly and evenly.
5. Independent temperature limit alarm system (optional), automatic interruption over temperature to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. The speed of the circulating fan is automatically controlled, and the wind speed is reduced when the thermostatic is used to avoid the volatilization of the sample.
8. Multi-segment programmable controller (optional), LCD display, menu operation, support for Multi-Parameter setting and programming.
9. Safety functions include independent temperature limit alarm (optional), sound and light alarm and temperature deviation alarm.
10. UV sterilization system (optional), regular disinfection to prevent contamination.
Principle
The incubator precisely adjusts the temperature through a fuzzy PID controller, and uses a forced convection air duct system to achieve rapid temperature Response and uniform distribution. The electric heating film Heating mode heats up quickly, and the circulating fan speed is automatically controlled. The wind speed is adjusted in the thermostatic state to adapt to the needs of cell growth. Optional multi-stage programmable controller can realize automatic control and programming of parameters such as temperature, wind speed, and time.
Applications
Cell fostering, microbial fostering, thermostatic experiment
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range (RT + 5~ 65 ℃) and timing parameters (maximum 99 hours 59 minutes) are set through the controller.
3. Optional multi-stage programmable controller to set temperature, wind speed, time and other parameters.
4. Start the device and observe the temperature change in the box.
5. After the experiment, turn off the power.
Notice
• When the box door is opened, the circulation and heating stop automatically to avoid temperature overshoot.
• When using the optional function, ensure that the independent temperature limit alarm system works normally.
• Avoid sample volatilization due to excessive air volume, and pay attention to the automatic control of fan speed.
• Regularly clean the liner, optional ultraviolet sterilization system for disinfection.
• Power supply voltage matching to prevent overload.
