Overview

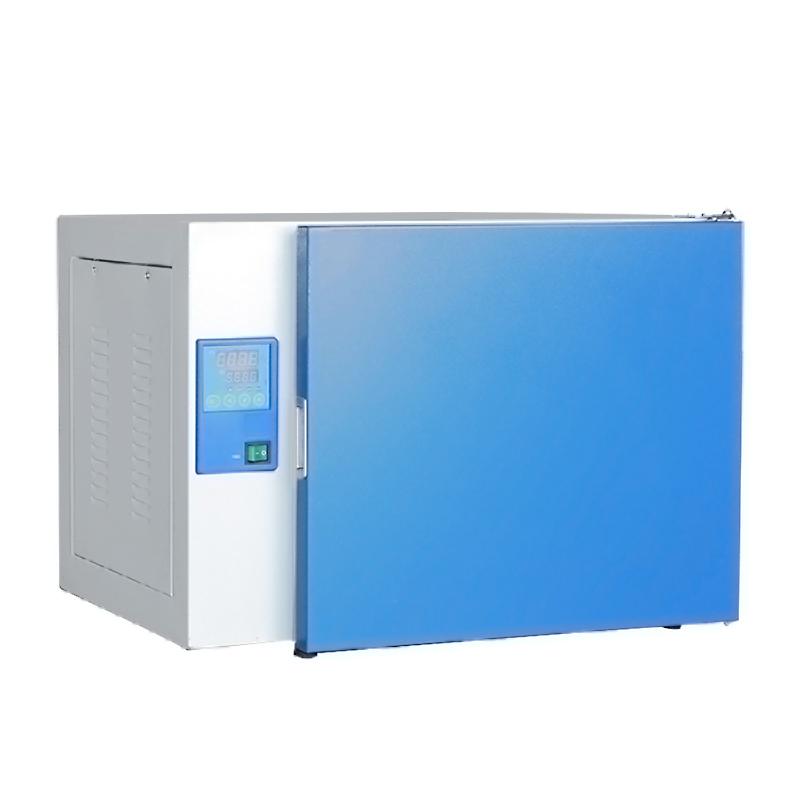

YIHENG DHP-9272 Electric heated incubators of constant temperature is a thermostatic device with mirror stainless steel liner and electric heating film Heating mode. Temperature range RT + 5~ 65 ℃, volume 270L. The product features a fuzzy PID controller and a forced convection air duct system to ensure accurate temperature control, Rapid Response and Good Uniformity.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection duct system to improve Temperature Response Speed, Improve Temperature uniformity and reduce temperature fluctuations.
3. Glass door inside the door, easy to observe, Glass door open automatically stop breeze circulation and heating, to avoid temperature overshoot.
4. Heating mode of mirror stainless steel liner and electric heating film, heating speed is fast and uniform.
5. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure safety.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. Automatic control of circulating fan speed, reduce wind speed when thermostatic, avoid sample volatilization.
8. Multi-stage programmable controller (optional), LCD display, menu operation, preset 7 sets of 63-step programs to achieve automatic control.
9. Safety functions include independent temperature limit alarm (optional), sound and light alarm and temperature deviation alarm.
10. UV sterilization system (optional), regularly disinfect the box to prevent contamination.
Principle
The incubator quickly unifies the space in the heating box through the electric heating film Heating mode, and uses a fuzzy PID controller to precisely adjust the temperature to force the convection air channel system to accelerate the temperature Response and improve the uniformity. The circulating fan speed is automatically adjusted according to the temperature state, and the wind speed is reduced during thermostatic to reduce sample volatilization to achieve a stable foster environment.
Applications
Cell fostering, microbial fostering, biological experiment, scientific research and education, pharmaceutical production
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Set the temperature parameters (range RT + 5~ 65 ° C) and timing function (maximum 99 hours and 59 minutes) through the controller.
3. Optional multi-stage programmable controller, preset temperature, wind speed, time and other parameters.
4. Close the box door, start the equipment, and observe that the temperature is stable.
5. Turn off the power after use and clean the liner.
Notice
• Power supply voltage matching AC 220V 50Hz before use.
• Automatically stop heating and circulation when the box door is opened to avoid temperature fluctuations.
• When selecting an independent temperature limit alarm system, pay attention to the alarm prompt and deal with it in time.
• Regularly clean the liner and disinfect it on demand when equipped with a UV sterilization system.
• Avoid overloading, pay attention to the Net weight of the equipment 80Kg, and be careful when handling.
• Follow the controller guide when programming operations to prevent incorrect settings.
