Overview

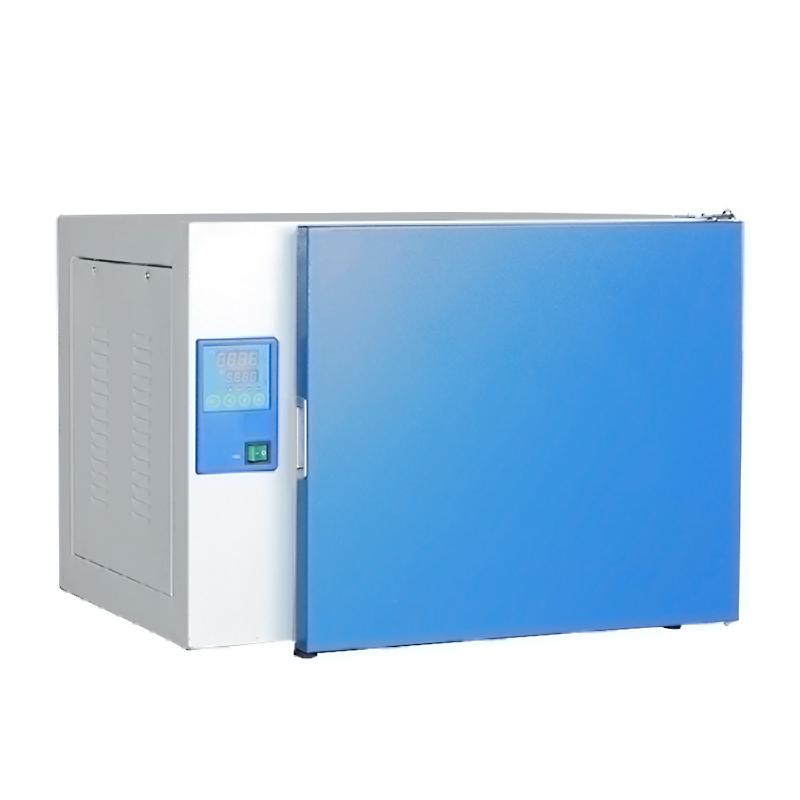

YIHENG DHP-9272B Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller for accurate temperature control with small fluctuations and timing function. Equipped with a forced convection air duct system to improve temperature Response speed and uniformity, mirror stainless steel liner and electric heating film Heating mode ensure fast and uniform heating.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection duct system to improve Temperature Response Speed, Improve Temperature uniformity and reduce temperature fluctuations.
3. Glass door inside the door, easy to observe, Glass door open automatically stop breeze circulation and heating, no temperature overshoot.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system, exceeding the limit temperature automatically interrupts to ensure safety (optional).
6. Can be equipped with a printer or RS485 interface to record temperature parameter changes (optional).
7. The speed of the circulating fan is automatically controlled, and the speed is reduced when thermostatic, and adjusted to the appropriate wind speed for cell growth.
8. Multi-stage programmable controller (optional), liquid crystal display, menu operation, simplifying complex tests.
9. Multi-stage temperature, circulating wind speed, time and other parameters can be programmed to support layer control and automatic switch.
10. 7 sets of 63-step programs can be preset, each set of 9 steps, and the setting time is 1 to 99 hours and 59 minutes.
11. Safety functions include independent temperature limit alarm, sound and light alarm, temperature deviation and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regular disinfection to prevent cell fostering contamination.
Principle
The incubator precisely adjusts the temperature with a fuzzy PID controller, combined with a forced convection air duct system for rapid temperature Response and uniform distribution. Electric heating film Heating mode Fast uniform heating liner, automatic control of circulating fan speed, reduce the wind speed in the thermostatic state to adapt to cell growth. Optional multi-stage programming controller, automatic execution of complex temperature programs.
Applications
Cell fostering, microbial fostering, biological experiments, pharmaceutical research, agricultural research, food testing, environment monitoring
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Optional multi-stage programs can be set, including temperature, wind speed, time, etc.
4. Start Equipment, Monitor Temperature Uniformity and Fluctuations.
5. Turn off the power after use, and optional ultraviolet sterilization is available for disinfection.
Notice
• Power supply voltage meets AC 220V 50Hz requirement before use.
• Glass doors open, breeze circulation and heating automatically stop to avoid temperature overshoot.
• Independent temperature limit alarm system is optional. Safety protection is required.
• The circulating fan automatically slows down in the thermostatic state to prevent the sample from evaporating.
• When a multi-stage programming controller is available, carefully set the parameters to avoid errors.
• Regularly clean the liner, optional ultraviolet sterilization system for disinfection.
• Pay attention to the alarm prompt when overheating or temperature deviation, and deal with it in time.
