Overview

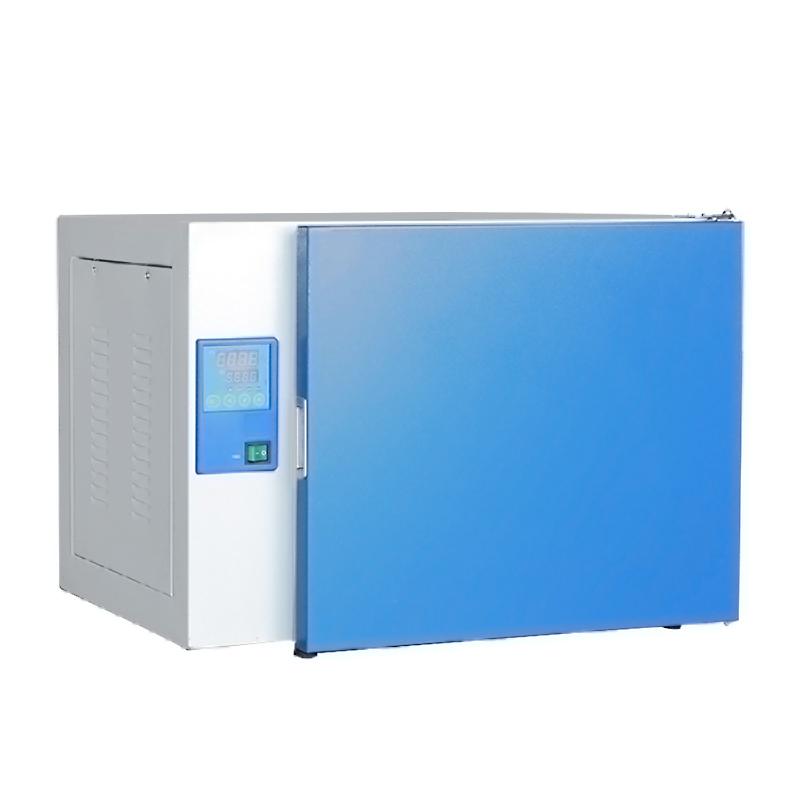

YIHENG DHP-9402 Electric heated incubators of constant temperature is a thermostatic device with fuzzy PID controller for accurate temperature control with small fluctuations and timing function. The product adopts a forced convection air duct system to improve the temperature Response speed and improve Temperature uniformity. Mirror stainless steel liner and electric heating film Heating mode make heating fast and uniform.
Features
1. Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum setting value of time is 99 hours and 59 minutes.
2. Forced convection duct system to improve Temperature Response Speed, Improve Temperature uniformity and reduce temperature fluctuations.
3. Glass door inside the box door, easy to observe, Glass door open when the breeze circulation and heating automatically stop.
4. Mirror stainless steel liner, Electric heating film Heating mode, heating speed, uniform heating in the box.
5. Independent temperature limit alarm system (optional), automatically interrupts when the temperature exceeds the limit.
6. Can be equipped with a printer or RS485 interface (optional) to record temperature parameter changes.
7. The speed of the circulating fan is automatically controlled, and the speed is reduced when thermostatic, and adjusted to the appropriate wind speed for cell growth.
8. Multi-segment programmable controller (optional), Multi-segment LCD display, Menu Operating interface.
9. Simultaneous setting and programming of parameters such as multi-stage temperature, circulating wind speed, time, and heating rate.
10. 7 groups of 63 steps can be programmed, each group of 9 steps, and the setting time of each group is 1 to 99 hours and 59 minutes.
11. Safety features include independent temperature limit alarm system (optional), sound and light alarm, high or low temperature and over-temperature alarm.
12. Ultraviolet sterilization system (optional), regularly disinfect the inside of the box to prevent cell fostering contamination.
Principle
Electric heated incubators of constant temperature quickly and evenly heat the space in the box through the electric heating film heating mode, and use the fuzzy PID controller to precisely control the temperature, with small fluctuations. The forced convection air duct system automatically controls the wind speed through the circulating fan to improve the temperature Response speed and uniformity. When the temperature in the box is constant, the fan speed is reduced to adapt to the needs of cell growth.
Applications
Cell fostering, biological experiment, scientific research and education, medical inspection, pharmaceutical industry
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Temperature range RT + 5~ 65 ℃ and temperature parameters.
3. Use the timing function, the maximum setting time is 99 hours and 59 minutes.
4. Optional multi-stage programmable controller to set temperature, wind speed, time and other parameters.
5. Start the device and monitor Temperature Uniformity +/- 2.0 ° C and Fluctuation +/- 0.5 ° C.
6. Optional UV sterilization system for regular disinfection.
7. Turn off the device after the experiment.
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• Glass doors open, breeze circulation and heating automatically stop to avoid temperature overshoot.
• Independent temperature limit alarm system is optional to ensure safe operation.
• Avoid sample volatilization caused by excessive air volume, and the fan speed is automatically adjusted when thermostatic.
• Optional functions such as multi-stage programming and UV sterilization require additional configuration.
• Regularly check the operating status of the equipment to prevent over-temperature alarms.
