Overview

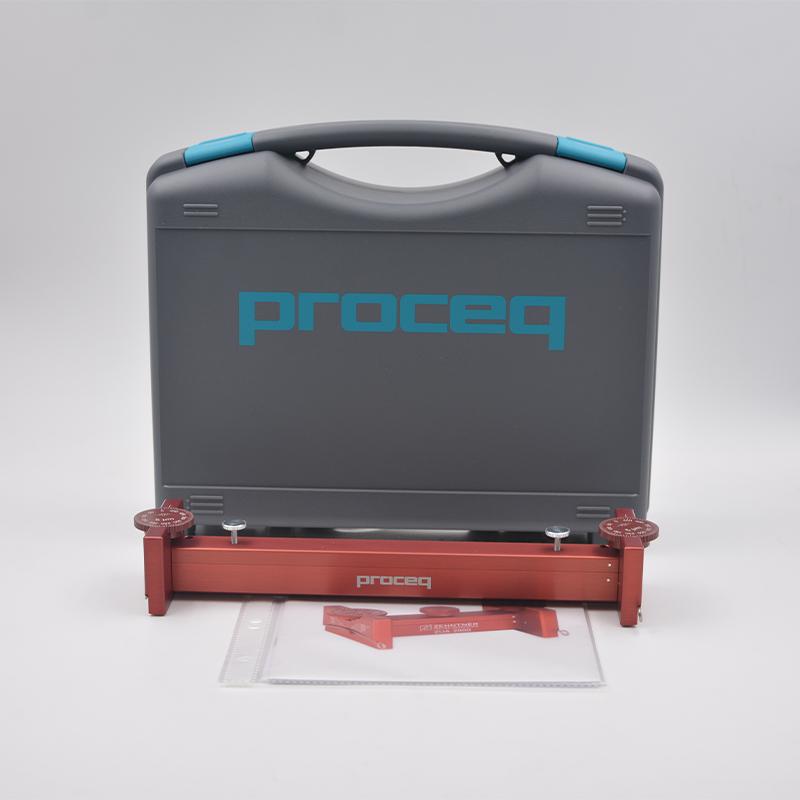

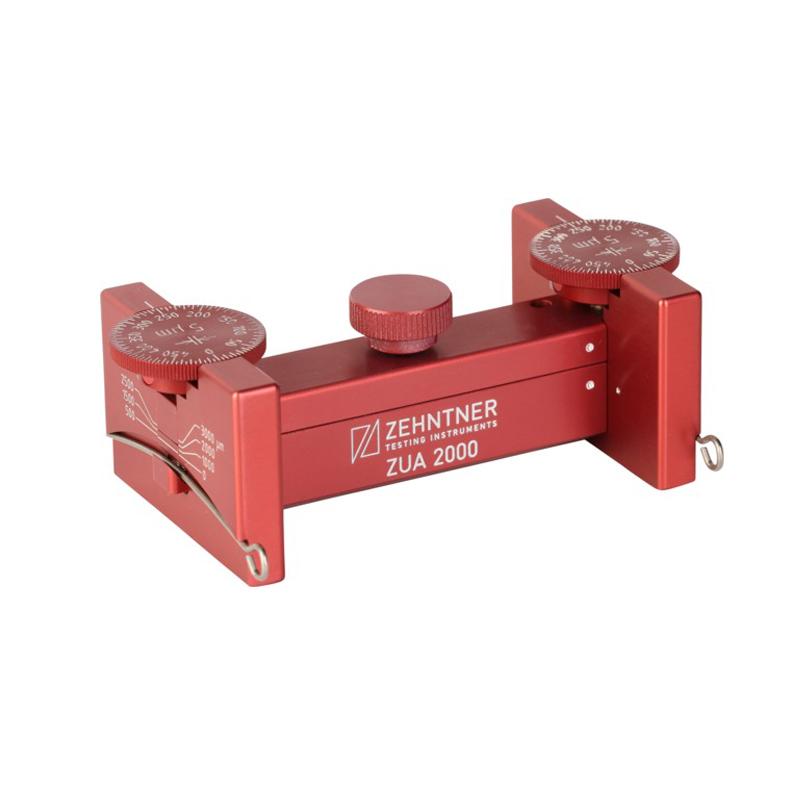

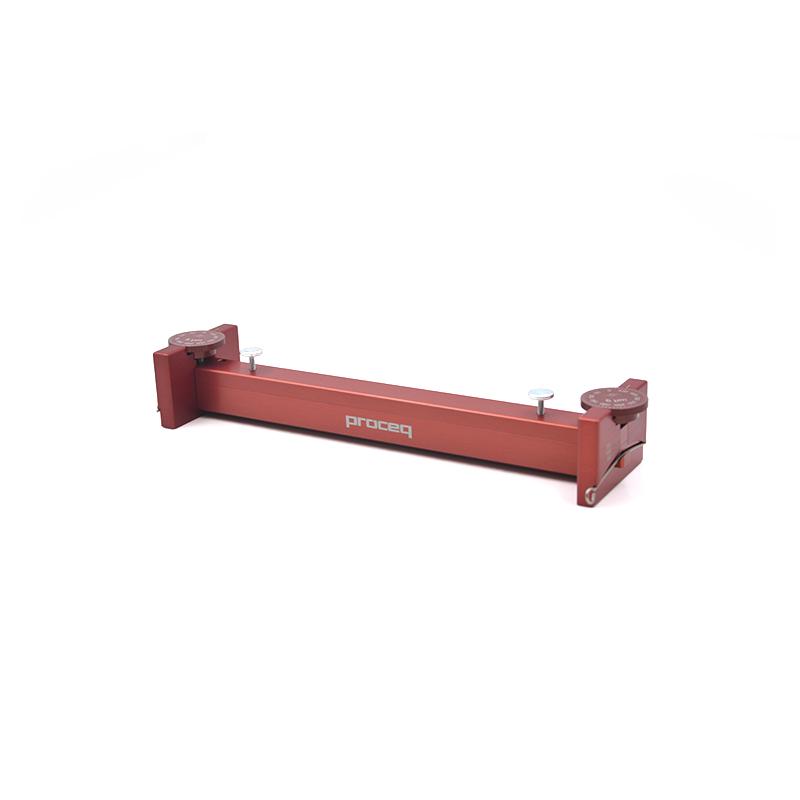

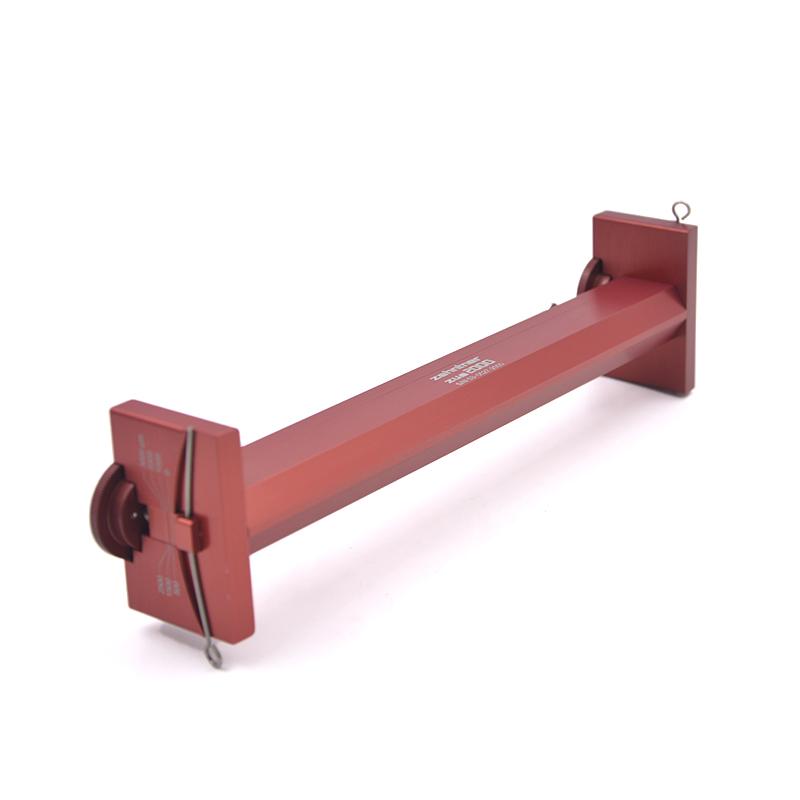

ZUA2000.150 is an adjustable wet Film Applicator under the ZEHNTNER By Proceq brand and belongs to the ZUA 2000 series. It is a universal adjustable film applicator with adjustable gap heights between 0μm and 3,000μm for preparing uniform films on flat substrates or coating layers with a maximum difference of 3000μm. The film applicator is suitable for rugged substrates such as Drawdown Vacuum Plates, Glass Plates, Test Panels or Test Drawings.
Features
1. Easy to use
2. Reliable results
3. Easy to disassemble and reassemble for cleaning
4. Made of anode-treated aluminum alloy, no decolorization, acid and alkali resistance, corrosion resistance
5. Can be completely disassembled and cleaned with solvent

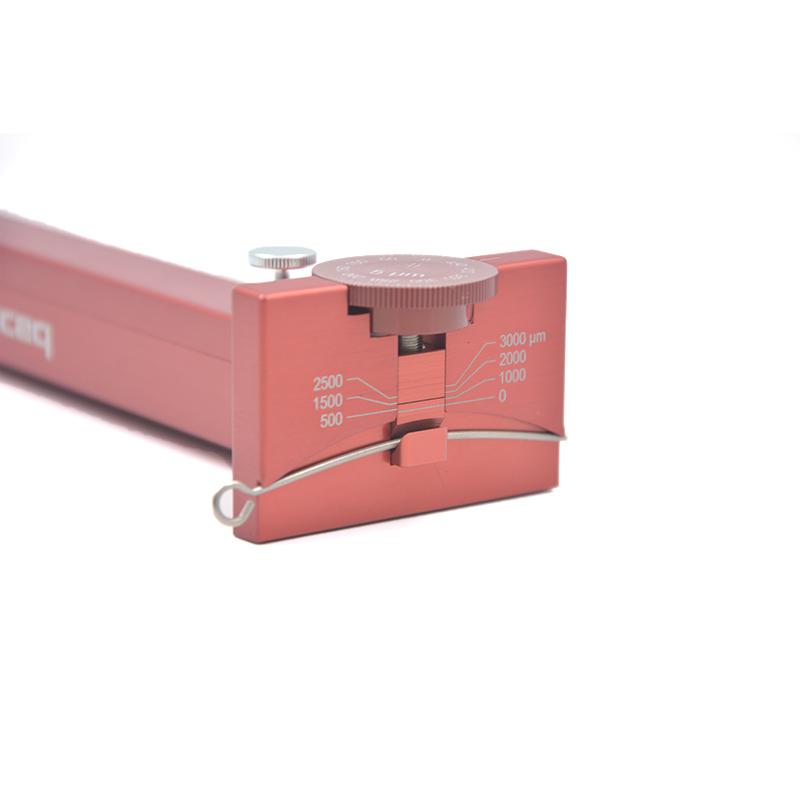

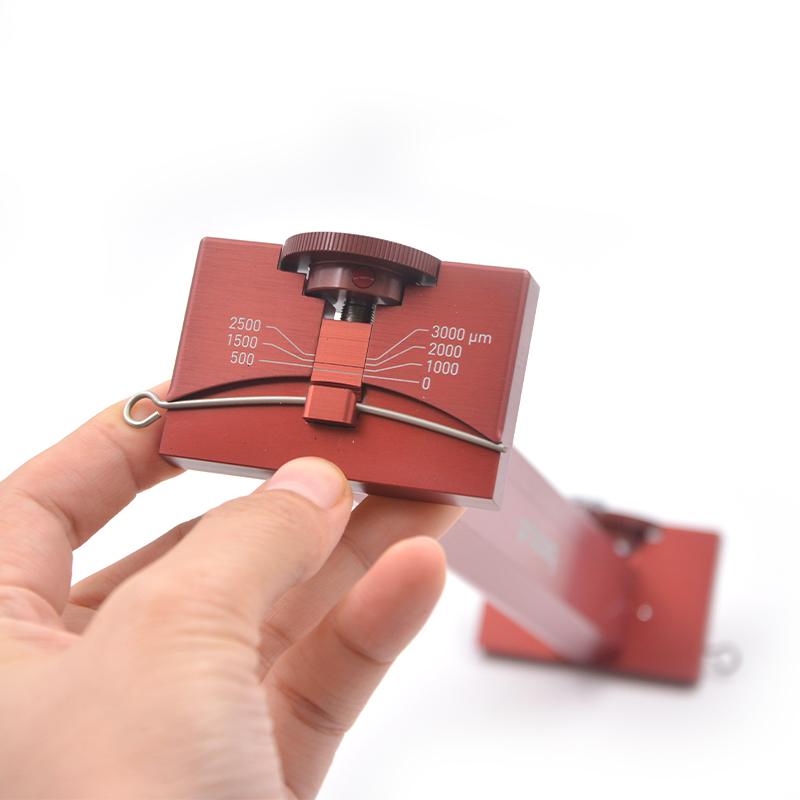

6. The gap height can be adjusted in a wide range, and the minimum scale is 5μm.
Principle
The ZUA 2000 series is a film or coating layer that is prepared uniformly on a flat substrate by adjusting the gap height, which can be precisely controlled between 0 μm and 3,000 μm, with a minimum scale of 5 μm. It is designed to operate on strong substrates, ensuring Reliability and conformity of the Spreader process.
Applications
Drawdown Vacuum Plate, Glass Plate, Test Panel, Test Drawing
Standards
ASTM D823, ASTM D1640 (depending on accessories), ISO 11998 (depending on accessories)
Steps
1. Place the film applicator on a flat substrate
2. Adjust the gap height to the desired wet film thickness (0~ 3000μm)
3. Spreader operation
4. Remove the film applicator for cleaning after use
5. Reassemble for next use
Notice
- Based on physical phenomena, the maximum wet film thickness will be slightly smaller than the marking scale of the coating applicator
- Only suitable for flat and sturdy substrates
- Use solvent for cleaning and ensure complete disassembly
- accuracy of +/- 10 µm, pay attention to the error range when using
