Overview

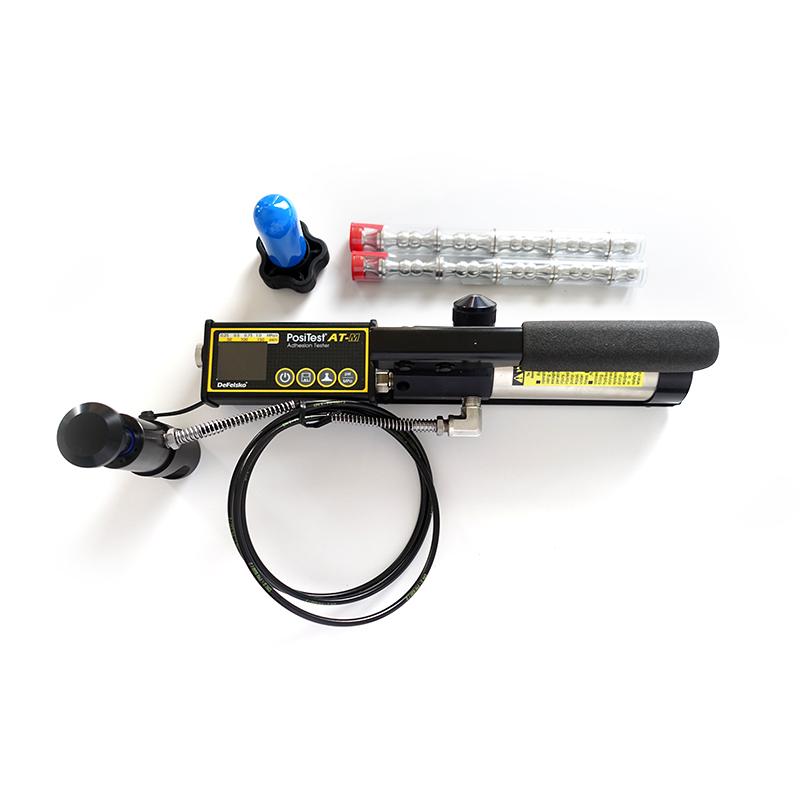

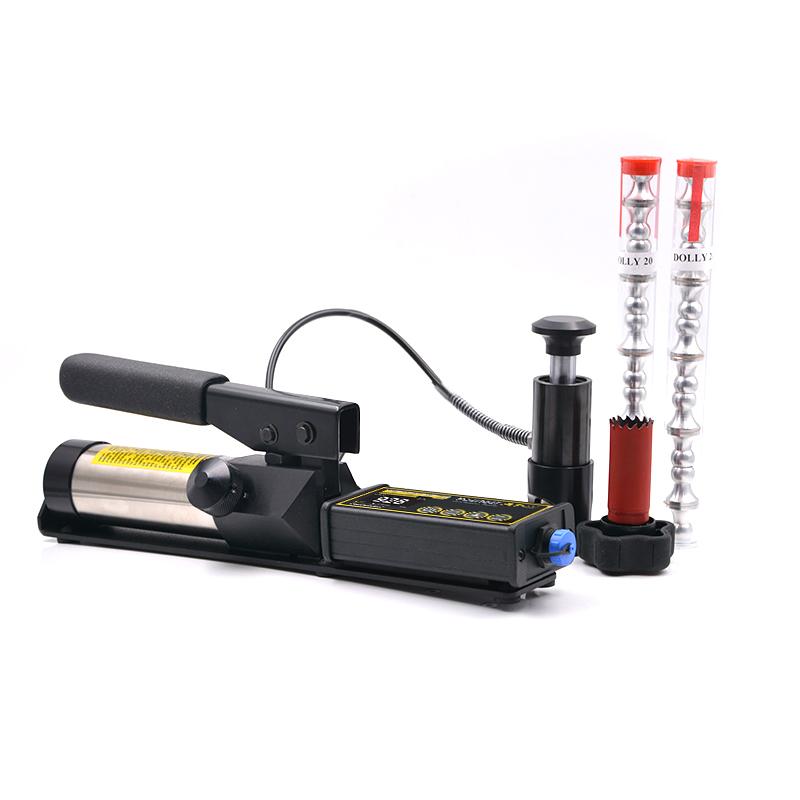

The Defelsko PosiTest AT-M 20mm Pull Adhesion Tester is a Portable Adhesion Tester that uses hydraulic pulling force to disbond coatings per unit area from substrates, suitable for use in laboratories and workshops. The readings are displayed in Psi and MPa units via the LCD screen. Measurement range is 0~ 3000psi adhesion strength. It is waterproof and dustproof, and has a 1.5-meter long hose for narrow area measurement.
Features
1. Durable: It has the advantages of waterproof, dustproof and anti-impact; Good hydraulic pump is not afraid of any Operating Environment; With sturdy suitcase.
2. Easy to operate: Portable handheld design, no external power supply required; large LCD LCD screen, easy to read; standard configuration to meet general testing needs; can select the kit model by pressing the button, change the unit or store the reading; no need to convert the table, automatically calculate the pressure value according to the kit size; the kit is inexpensive and can be stored for a long time, eliminating the trouble of cleaning.
3. Accuracy: The pressure system has been calibrated by the NIST Force Sensor, and the Measurement accuracy is +/- 1%; the high-grade industrial pressure sensor ensures continuous High Accuracy; the self-alignment positioning kit has accurate measurement on smooth or rough surfaces; it meets ASTM D4541, ISO 4624 and other test standards.
Principle
The instrument uses hydraulic pulling force to disbond the coating per unit area from the coating substrate, measures adhesion strength through the built-in pressure system, and automatically calculates the pressure value according to the kit size, which is displayed on the LCD screen in digital form.
Applications
Laboratory, workshop
Standards
ASTM D4541、ASTM D7234、ISO 4624、ISO 16276-1、AS/NZS 1580.408.5
Steps
1. Select the kit model by pressing the button.

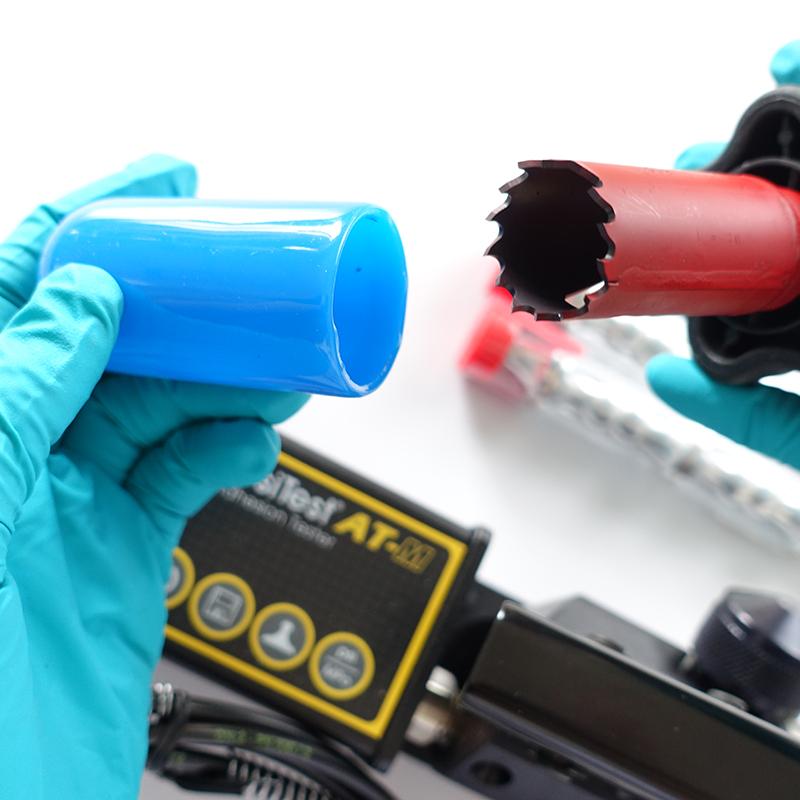

2. Use the trimmer to prepare the test area.

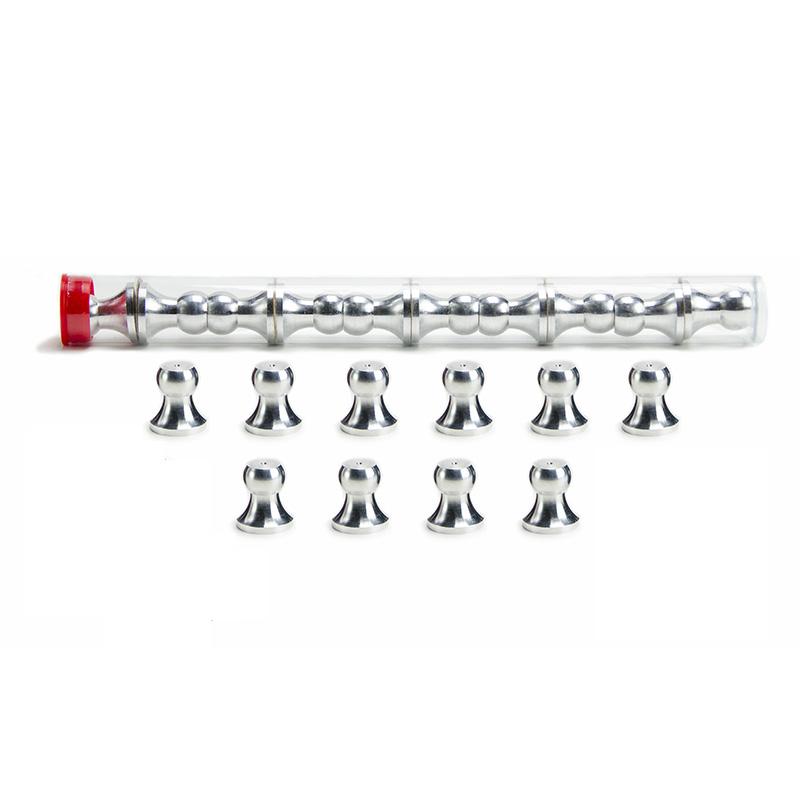

3. Paste the kit to the coating surface.

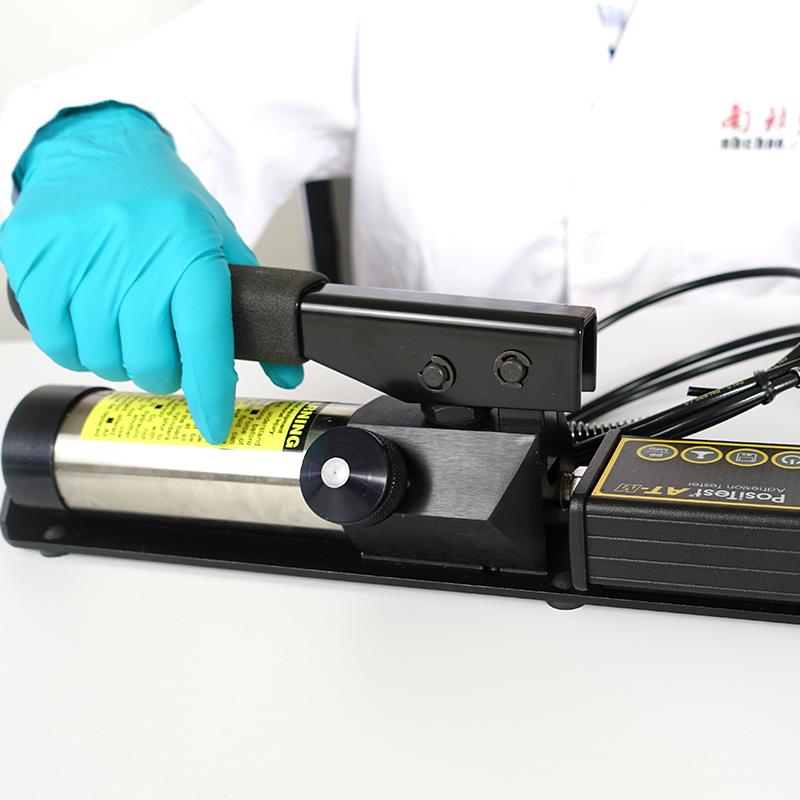

4. Start the hydraulic pump to apply the pulling force.

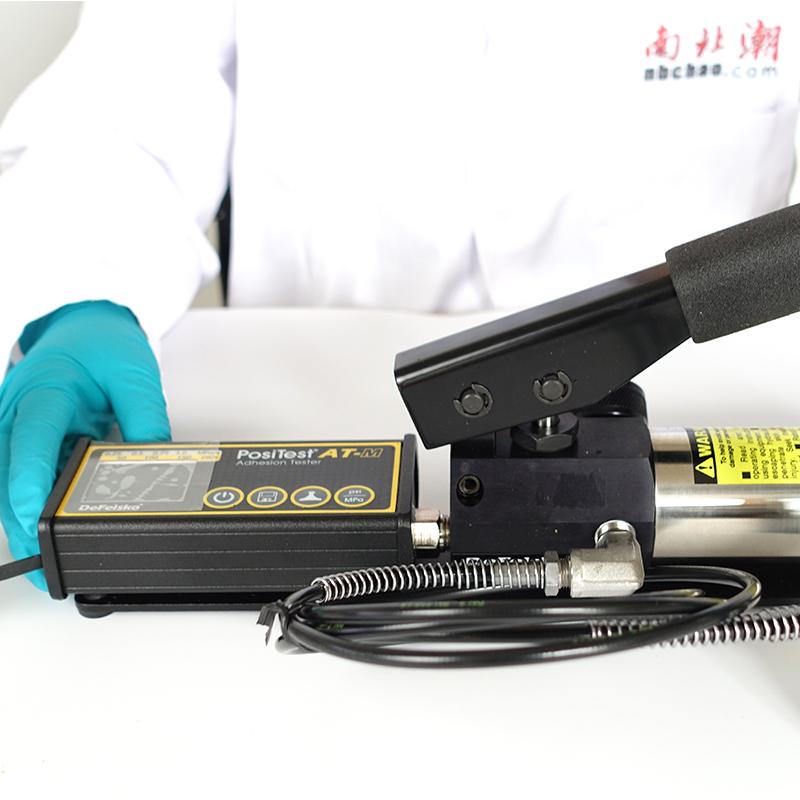

5. Read the adhesion value displayed on the LCD screen (the unit can be selected as MPa or psi).
6. Optional to store readings or export data via USB interface.
Notice
Make sure the kit is pasted correctly to avoid measurement errors.
Pay attention to the hose length limit when using in narrow areas.
Periodically calibrated to maintain accuracy.
● Avoid use in extreme environments to prevent damage to the instrument.
● The kit is for one-time use, and it is recommended to save it for archiving.
