Overview

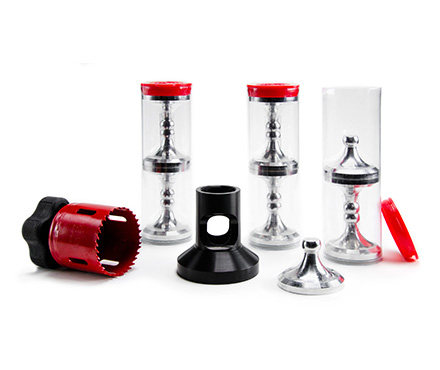

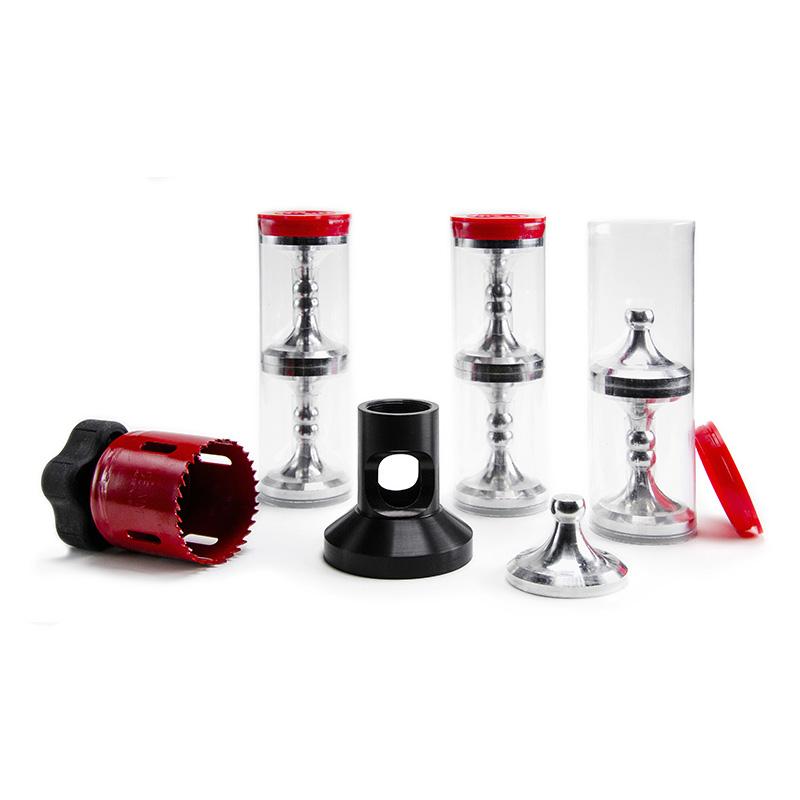

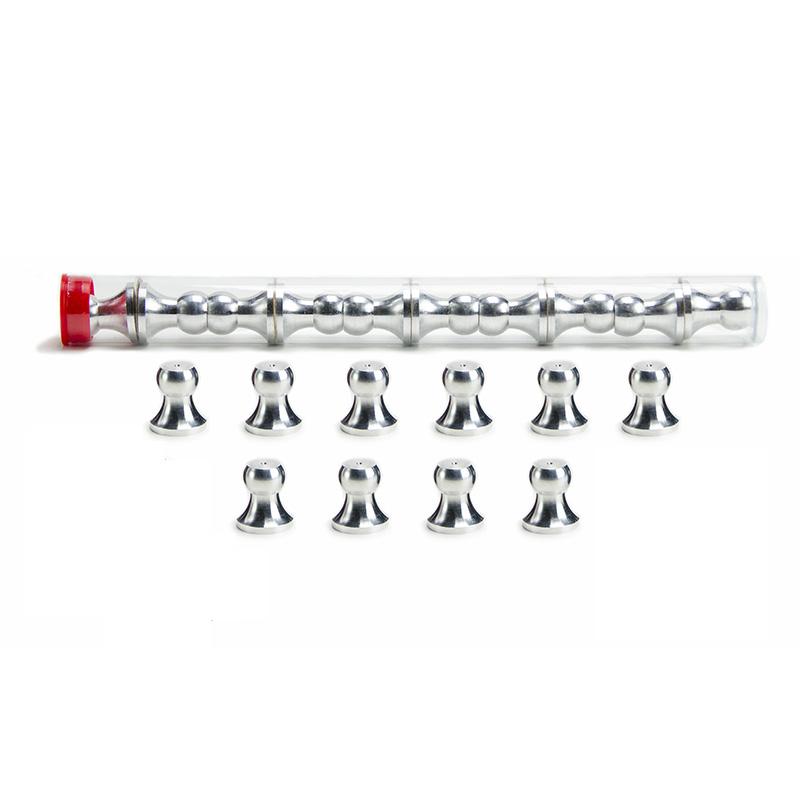

The Defelsko 50mm Accessories set (pull-out) is an optional accessory for use with a pull-out adhesion meter, especially for lower adhesion coatings such as wood, plastic and concrete coatings. Suitable for the measurement of adhesion ranges from 0 to 500psi (0-3.5 MPa), the Accessories set includes a 50mm kit, a 50mm kit clear sleeve and a 50mm edge trimmer, providing High Accuracy and Repeatability in a narrow range.
Features
1. Suitable for low adhesion coatings, such as wood paint, plastic paint and concrete coatings.
2. The measurement range is 0~ 500psi (0-3.5 MPa).
3. Contains 50mm kit, 50mm kit transparent sleeve and 50mm trimmer.
4. High Accuracy and Repeatability in Narrow Range.
Principle
The Accessories set is used with a 50mm kit in conjunction with a pull-out adhesion meter to apply tension to coatings for adhesion testing. The use of a larger measurement surface kit enhances test accuracy and Repeatability for the measurement of low adhesion coatings.
Applications
Wood paint, concrete coatings, plastic paint
Steps
1. Install the 50mm kit to the pull-out adhesion meter.
2. Use a 50mm trimmer to cut the coating.
3. Put the 50mm kit transparent sleeve over the kit to assist in positioning.
4. Operate the adhesion instrument for pulling test and record the adhesion value.
Notice
• Only suitable for matching pull-out adhesion instrument.
• Suitable for low adhesion coatings, not for high adhesion coatings.
• Make sure the Accessories group is intact before use.
• Follow the operating specifications of the adhesion instrument for testing.
