Overview

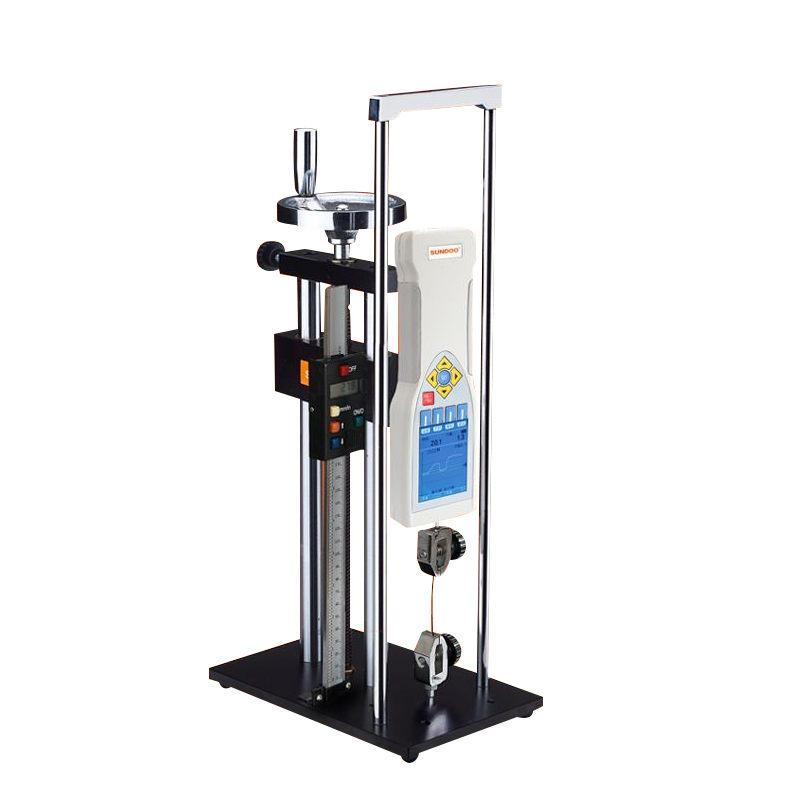

The SLJ-B spiral frame is a product of the SUNDOO brand, equipped with Force Gauge, which is suitable for various industries and scientific research institutions to conduct tensile and compression load, insertion and unplugging force, and failure test. The frame adopts trapezoidal screw drive, which has the characteristics of manual operation, simple and stable, and vertical and horizontal dual-use.
Features
1. Dimensions of 154 × 240 × 500mm, weight of about 9.5kg;
2. Rated load is 500N, Effective Travel is 150mm;
3. Configurable SN, SH/SP (built-in) Force Gauge and various fixtures (need to be purchased separately);
4. Adopt trapezoidal screw drive for easy and stable operation.
5. Standing and lying dual-use design, suitable for a variety of test scenarios.
Principle
The SLJ-B spiral frame realizes manual operation through trapezoidal screw drive, and drives Force Gauge to perform tensile and compressive load, insertion and unplugging force or failure test, providing stable and reliable mechanical properties detection.
Applications
Industries and scientific research institutions
Steps
1. Choose vertical or horizontal mounting rack according to test requirements;
2. Configure the required Force Gauge and Fixture (to be purchased separately);
3. Manually operate the trapezoidal screw, adjust Travel to the test position;
4. Carry out tensile and compressive load, insertion force or failure test;
5. Record the test data and analyze the results.
Notice
• Force Gauge and tooling fixture need to be purchased separately, please configure according to actual needs;
• Ensure the stability of the frame during operation to avoid overload.
• Regularly check the trapezoidal screw drive components to maintain cleanliness and lubrication.
• Pay attention to safety during testing to prevent accidental injuries.
