Overview

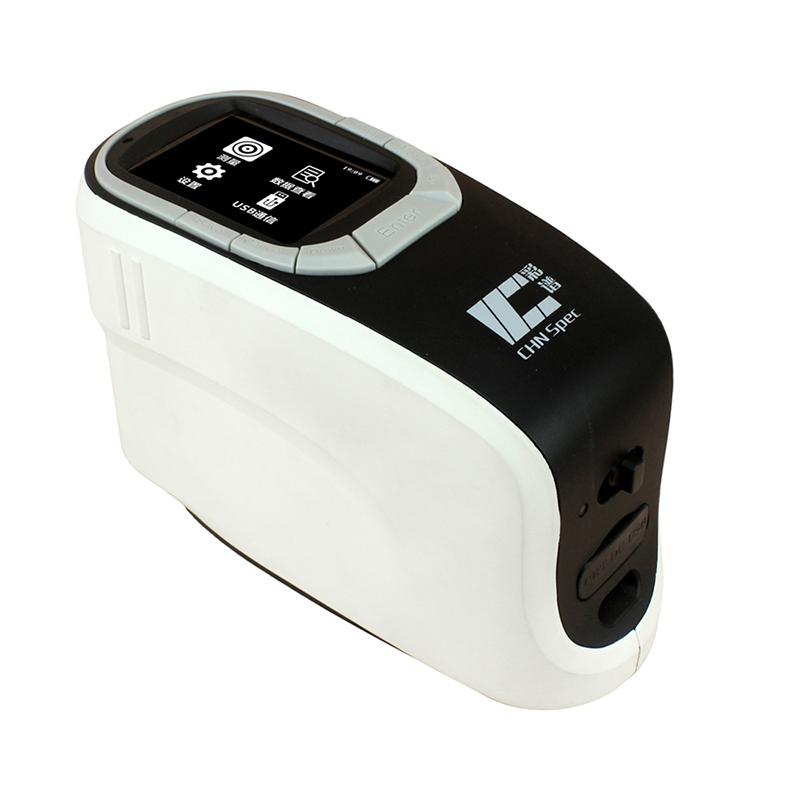

The CHNSPEC CS-600C Portable 45/0 Colorimeter is a compact and lightweight Portable instrument with a 45 °/0 Optical inspection structure for simultaneous measurement of 60 ° Gloss. The 45 °/0 geometrical optics structure is most consistent with the visual perception color value, which can completely eliminate the mirror light of the textured surface, and the built-in Gloss Sensor can accurately measure the surface Glossiness.
Features
1. With 45/0 structure (45 ° ring illumination, 0 ° viewing angle), the innovative ring illumination system eliminates the direction dependence, and can achieve high accuracy and Repeatability regardless of changing the sample position, tilting the sample or swirl/spin instrument, minimizing the impact of lines
2. Compatible with 60 ° gloss measurement, built-in High Accuracy Gloss measurement Sensor to achieve simultaneous measurement of Gloss and Color
3. In line with national measurement standards, in line with all Color measurement standards of CIE, ISO, ASTM, DIN, reaching international professional level
4. Standard Color management software, suitable for quality monitoring and Color data management in various industries, digitizing user measurement management, retaining historical data, comparing Color Gloss differences, and generating test reports
5. National Measurement verification report, each instrument is sent to the trusted verification department for Measurement verification after leaving the factory, and the measurement data Traceability to the National Measurement Institute
6.360-Degree enhanced customer experience, including high-capacity rechargeable lithium batteries, high-resolution full-color true-color large screen, USB and custom Bluetooth connection, configurable micro printer
Principle
The instrument adopts a 45 °/0 geometrical optics structure (45 ° annular illumination, 0 ° viewing angle), illuminates the sample through a annular illumination system, and receives reflected light signals at a 0 ° viewing angle. The built-in high-Sensitivity silicon photodiode Sensor detects reflected light and analyzes Color and Gloss data. At the same time, the built-in Gloss Sensor realizes simultaneous measurement of 60 ° Glossiness.
Applications
Automotive Interior Parts, Spinning & Weaving Products, coil coatings, Plastic Products, Road Traffic Indicators, Encasements and Raw Materials
Standards
CIE-15-2004、ASTM-D523、ASTM-D2244、ASTM D2457
Steps
1. Boot preparation: ensure that the battery is sufficient and the instrument is in normal working condition
2. Sample placement: align the instrument measurement port with the surface of the sample to be tested
3. Start measurement: Press the measurement button for Color and Gloss data collection
4. Data viewing: view the measurement results through the display screen
5. Data transfer: Export data to PC via USB or Bluetooth connection
6. Data management: Data analysis and management using standard Color Management software
Notice
Operating environment should be 0-45 ℃, relative humidity 80% or less (at 35 ℃), no water condensation
• Avoid use in strong electromagnetic interference environments
• Regularly clean the measurement caliber to ensure measurement accuracy
• Turn off the power in time after use to save battery power
• Avoid violent vibration and impact to protect the precision components of the instrument
• The data storage capacity is 20,000 pieces, and important data is regularly exported
