Overview

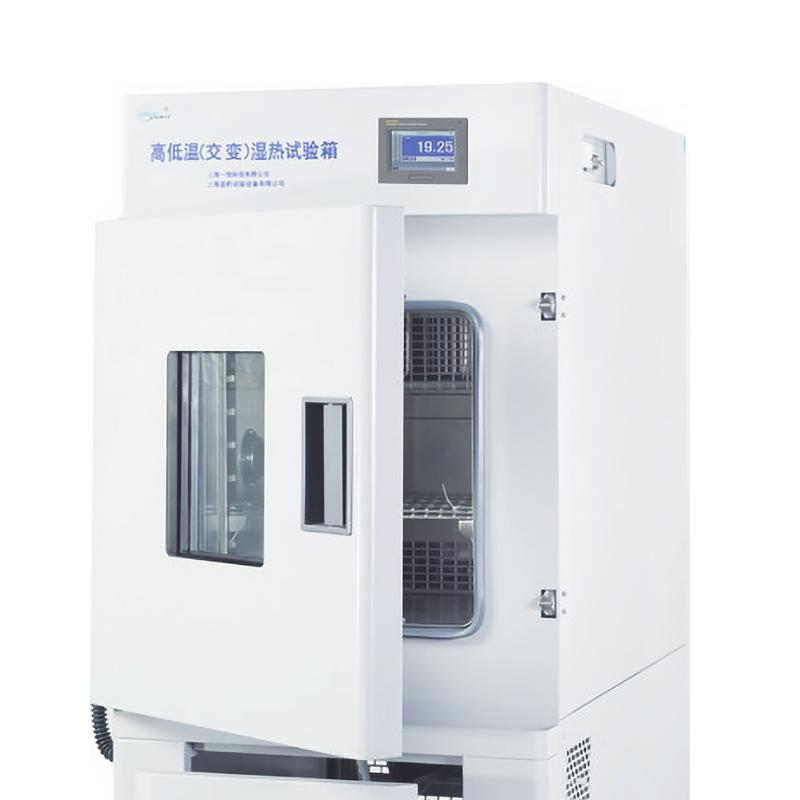

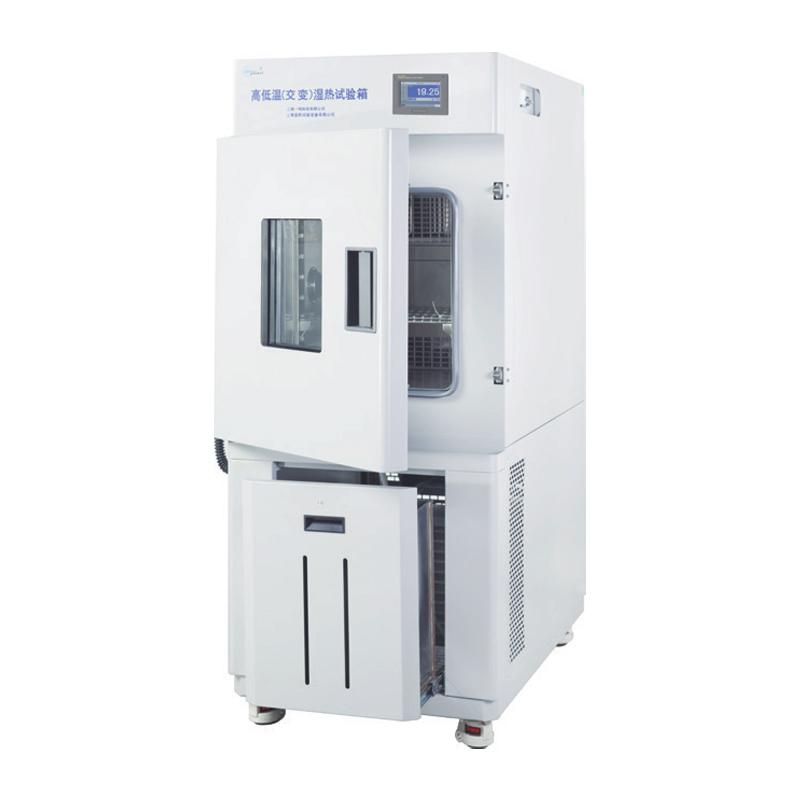

YIHENG BPHS-060A High and Low Temperature Damping heat testing chamber is a new generation of high and low temperature (alternating) sensible heat testing chamber. It integrates the company's many years of successful experience in box design. Based on the humanized design concept, starting from the actual needs of customers, it meets customer requirements in details and provides high-quality products.
Features
1. Humanized design: Fluorine-free design, wet and dry ball type or electric kiln type multi-functional multi-stage programmable temperature and Humidity controller, fuzzy PID controller to control temperature and humidity accurate fluctuation is small, imported temperature and Humidity controller has a long life, High Accuracy CFL20 word × 6 line LCD display, keyboard input operation is easy, there is a 25mm or 50mm diameter test hole on the left side of the box, and the built-in sink can be pulled out to add water.
2. Quality assurance: brand Compressor and circulating fan make the temperature distribution uniform, environmentally friendly refrigerant (R134a) high efficiency and low energy consumption, unique air duct circulation system to ensure uniform working room temperature Humidity, imported 304 mirror stainless steel liner four corners and a half arc excessive, shelf bracket free loading and unloading easy to clean, multi-stage programmable control simplifies the complex test process to achieve automatic control.
3. Safety function: independent temperature limit alarm system overrun automatic interruption and sound and light alarm, high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection.
4. Convenient data processing (optional): can be connected to a printer or 485 Communication interface, with USB data transfer interface (SD disk), with a computer to display and print Humidity and Time Linear dispersion, for inspection process data storage and playback to provide assurance.
Principle
Adopt dry and wet bulb or electric kiln type multi-functional multi-stage programmable temperature and Humidity controller, combined with fuzzy PID controller to achieve precise temperature control and humidity control, with small fluctuation. Through brand Compressor and circulating fan and unique air duct circulation system, ensure uniform distribution of Humidity at working room temperature, and use environmentally friendly refrigerant (R134a) to improve efficiency and reduce energy consumption.
Applications
High and low temperature test, humidity cabinet test, alternating test, Humidity control test
Steps
1. Use keyboard input to operate the Humidity Controller.
2. Measuring temperature through the test hole on the left side of the box.

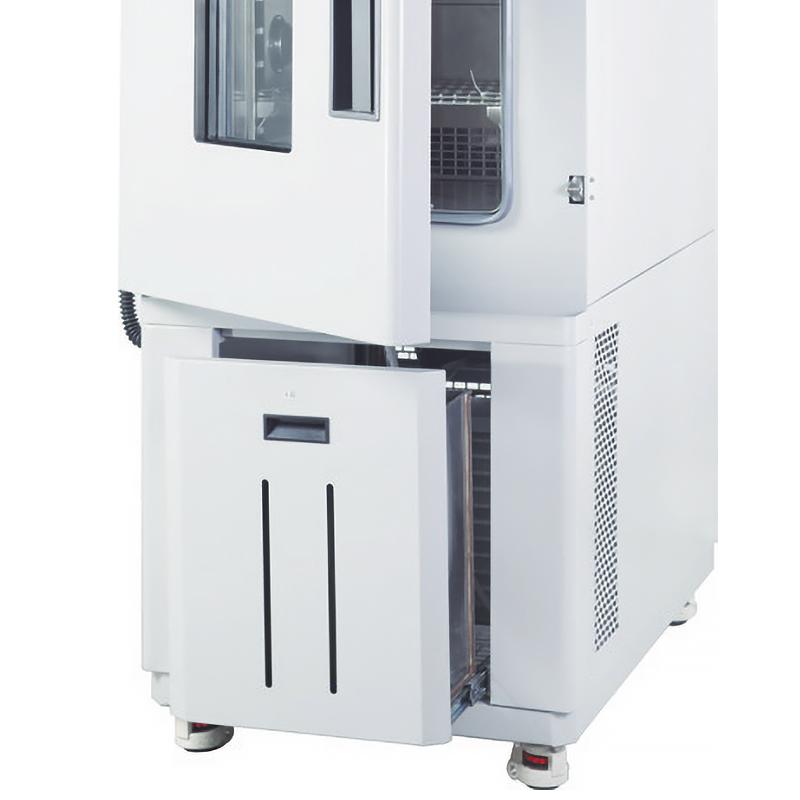

3. Pull out the built-in sink and add water.
4. Optional connection printer or 485 Communication interface, using USB data transfer interface for data processing.
Notice
• When the temperature limit is exceeded, the system automatically interrupts the operation and provides sound and light alarms to ensure the safety of the experiment.
• Pay attention to Compressor overheating, overcurrent, overload protection, fan overheating protection, and water shortage protection.
• Use an environmentally friendly refrigerant (R134a) to promote energy conservation.
• The built-in sink can be pulled out to add water, making it easy to use.
