Overview

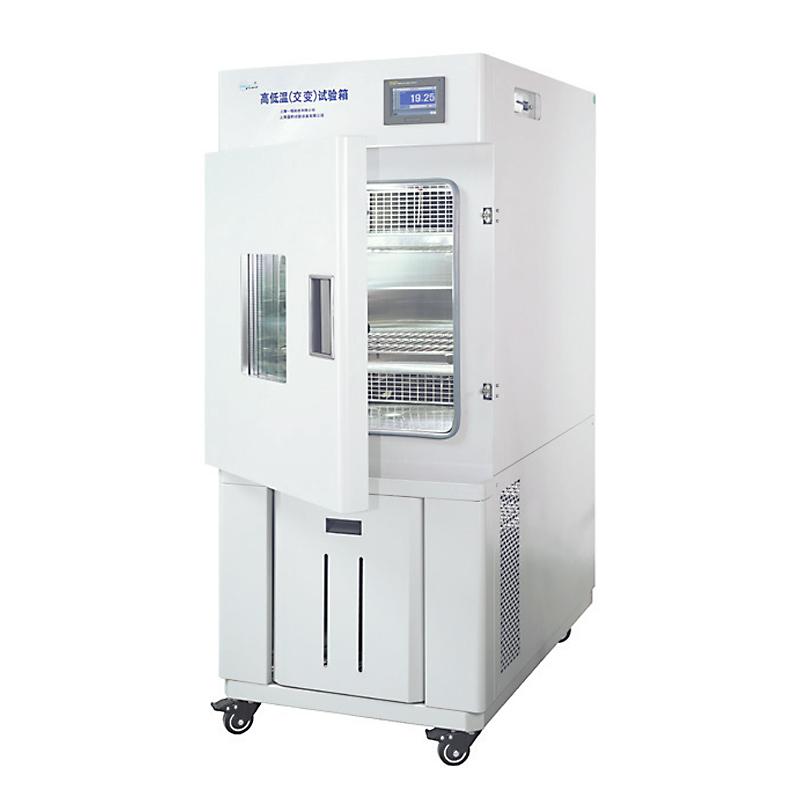

YIHENG BPHS-120C High and Low Temperature Damping heat testing chamber is a new generation of high and low temperature (alternating) Damping heat testing chamber. It integrates the company's many years of successful experience in box design. Based on the humanized design concept, starting from the actual needs of customers, we try our best to meet customer requirements in every detail and provide customers with high-quality products.
Features
1. Humanized design: Fluorine-free design, built-in water tank can be pulled out to add water, and there is a test hole on the left side of the box to facilitate experimental operation and Measuring temperature.
2. Quality assurance: The brand Compressor and circulating fan are used to make the temperature distribution uniform, the environmental protection refrigerant efficiency is high and the energy consumption is low, the unique air duct circulation system ensures uniform temperature and Humidity, the imported 304 mirror stainless steel liner is easy to clean, and the multi-stage programmable control realizes automatic operation.
3. Safety functions: independent temperature limit alarm system, high and low temperature and over-temperature alarm, Compressor overheating and overcurrent overload protection, fan overheating protection, water shortage protection.
4. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface, with USB data transfer interface, display and print Temperature Humidity and Time Linear dispersion with a computer.
Principle
Adopt wet and dry ball or electric kiln multi-function multi-stage programmable temperature and Humidity controller, combined with fuzzy PID controller, to achieve accurate temperature control and humidity fluctuation. Through brand Compressor and circulating fan, with unique air duct circulation system, ensure uniform distribution of temperature and Humidity in the working room.
Applications
High and low temperature humidity cabinet test, alternating humidity cabinet test
Steps
1. Keyboard input operation Humidity controller.
2. Measuring temperature through the test hole on the left side of the box.
3. Pull out the built-in sink and add water.
4. Use multi-stage programmable control to simplify the testing process.
5. Optional connection printer or Communication interface for data processing.
Notice
• When the temperature limit is exceeded, the system automatically interrupts operation and alarms sound and light, which needs to be dealt with in time.
• Pay attention to Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection and other safety functions.
• Use an environmentally friendly refrigerant (R134a) to ensure energy conservation and environmental protection.
• When cleaning the box, the shelf bracket can be freely loaded and unloaded.
• When selecting the data processing function, make sure to connect the interface correctly.
